Kia Pv5 Camper Van: Real-world Conversion Potential and Gear Guide

Kia's PV5 Cargo, hitting Australia in Q2-Q3 2026, is getting some local suspension tuning, which is a good sign they're thinking past the factory floor Eco Car Guide. This isn't just another electric box; it's Kia's first dedicated 'Platform Beyond Vehicle' (PBV), designed from the ground up to be modular. That means it's a bare chassis waiting for you to bolt on whatever you need for your weekend escape or full-time dirtbag life.

Quick Verdict

• Modular Design is the Real Win: The PV5 isn't a fixed-purpose vehicle. Its 'Flexible Body System' allows for up to 16 variants, which means the chassis-cab is a blank slate for conversion Eco Car Guide. This is critical for avoiding structural compromises when adding your own living quarters.
• Electric Powertrain: With an all-electric 'E-GMP.S' platform, you're looking at instant torque and no exhaust fumes. Range is up to 416km WLTP, with a 30-minute fast charge capability Eco Car Guide. That's enough for a solid day's driving without range anxiety if you plan your charging stops.
• Low Floor Height: The PV5 Passenger model boasts the lowest floor in its class, which is a huge benefit for accessibility and interior volume Eco Car Guide. Less lifting for gear, easier entry/exit, and more headroom for sleeping.
• Urban Agility: Kia designed this thing for urban driving, meaning compact dimensions and agile handling Eco Car Guide. Great for navigating tight trails or parking in town.
• Conversion Kits Already Hitting the Market: Companies like Vanlab are already offering flat-pack camper kits Auto Roamer. This means less custom fabrication, but you still need to verify the mechanical integrity of those mounting points.
• Battery Range for Real-World Use: The larger 67kWh battery offers 243 miles WLTP range Electrifying.com. My buddy got 150 miles in winter conditions with the long-range model. Thermal cycling absolutely hammers battery performance.
• Cost Advantage: Starting well under £35,000, it significantly undercuts the VW ID.Buzz, which starts near £60,000 Electrifying.com. That's a lot of extra cash for solar panels and a solid fridge.

What to Look For

Forget the glossy brochures. When you're looking at a Kia PV5 for conversion, you need to think like a structural engineer and a cheapskate. The factory-standard PV5 can handle a decent amount, but you're going to push its limits. Here's what I'd be checking:

Component/System	What to Look For (Dirtbag Engineer's View)	Why It Matters (Physics)
Chassis Structure & Mounting Points	Are aftermarket conversion kits using existing high-strength steel mounting points, or are they drilling new holes into thin sheet metal? Look for reinforced sections.	Mechanical Stress: Any new load path needs to be designed for the anticipated shear and tensile forces. Drilling into unsupported sheet metal creates stress concentrations, leading to fatigue failure and cracks over time, especially with constant vibration.
Electrical System Capacity (12V)	What's the factory 12V auxiliary battery capacity? What's the alternator/DC-DC converter output? How many amps can the factory fuse panel safely handle for new loads?	Circuit Integrity: Overloading circuits causes resistive heating (I²R losses). Undersized wires melt insulation, leading to short circuits and fire risk. A 280mA parasitic draw on a 60Ah battery kills it in 12 days, as I've seen.
Suspension System (Payload Capacity)	Check the Gross Vehicle Weight Rating (GVWR) on the door jamb sticker. Subtract the curb weight. That's your payload. How much does your conversion add?	Mechanical Stress: Exceeding GVWR overloads springs, shocks, and tires. This reduces damping, increases braking distances, and can cause premature wear or failure of suspension components due to excessive compressive stress. It also impacts vehicle dynamics and stability.
Thermal Management for Battery	Does the PV5 have active battery thermal management? What's its operating temperature range? Where are the cooling vents?	Thermal Dynamics: Lithium-ion batteries degrade faster outside their optimal temperature range (typically 68-77 degrees F). Excessive heat accelerates chemical degradation; extreme cold reduces power output and charging speed. Poor thermal management equals reduced cycle life and range.
Water Tank Mounting & Drainage	Are fresh/grey water tanks securely mounted with full bottom support, not just straps? Is the drain clear and accessible?	Mechanical Stress & Fluid Dynamics: A full 20-gallon water tank weighs 160 lbs. Inadequate mounting creates high stress points and potential for tank rupture or detachment during sudden stops or rough terrain. Clogged drains lead to standing water, promoting mold and corrosion on nearby components.
Insulation & Vapor Barrier	What's the R-value of the factory insulation? Is there a proper vapor barrier installed in the conversion?	Thermal Dynamics & Fluid Dynamics: Poor insulation leads to massive heat transfer, wasting battery power on HVAC. Lack of a vapor barrier allows warm, moist interior air to condense on cold exterior panels, leading to hidden mold, rust, and material degradation.

The PV5's modular body trim is a nice touch for minor dings; you can swap scuffed panels without much hassle Electrifying.com. That's smart design, saving you from complex bodywork after a fender bender.

Our Top Picks for Reliable Performance

You're not building a showpiece, you're building a reliable machine for the road. These are the components that won't leave you stranded or smelling like a swamp. I'm picking gear that minimizes failure points and maximizes utility. Forget the marketing hype; I'm looking at thermal efficiency, current draw, and mounting robustness. Gear Patrol and Kia PBV Owners Group chatter suggests the PV5 is a solid base, but the conversion gear needs to match.

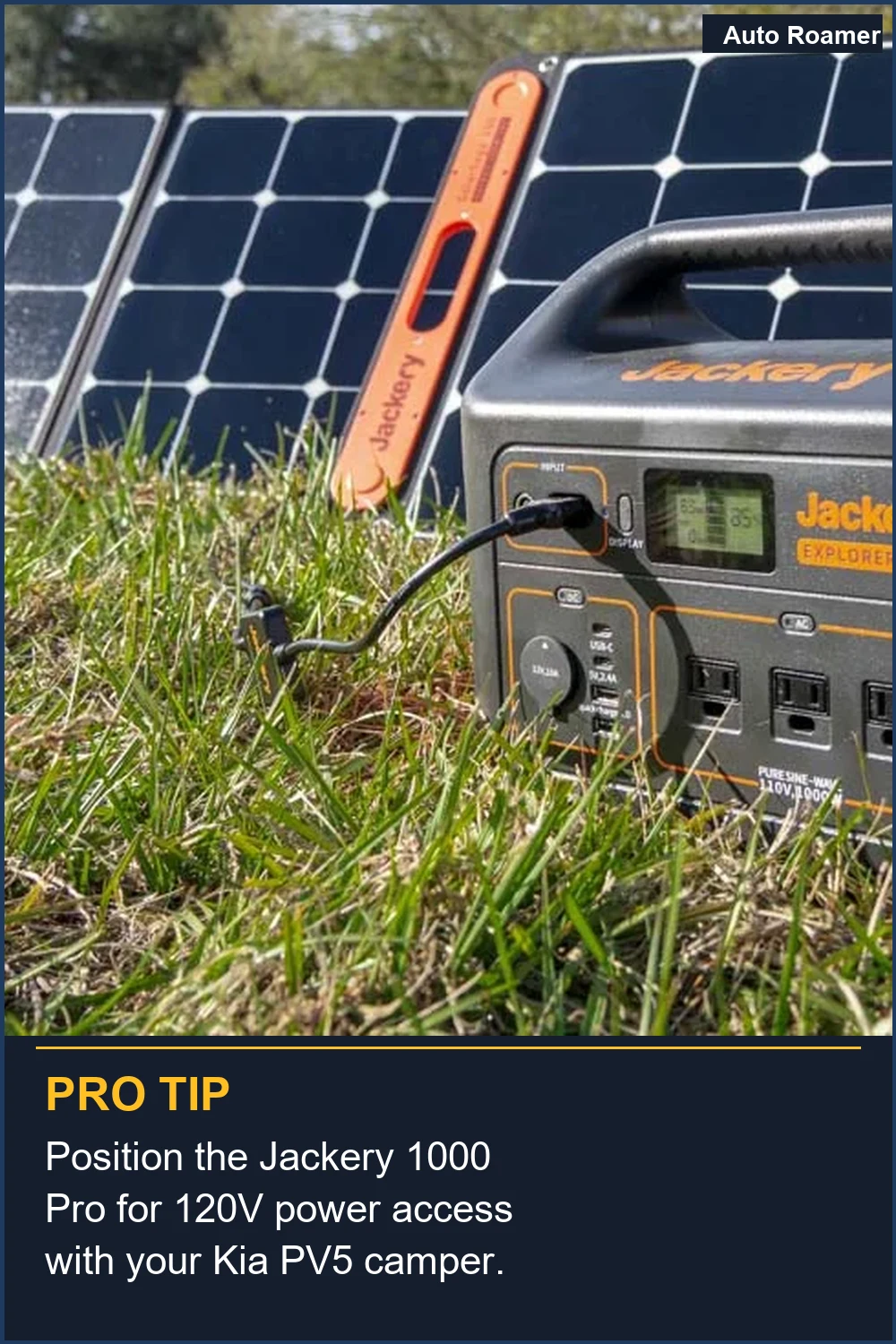

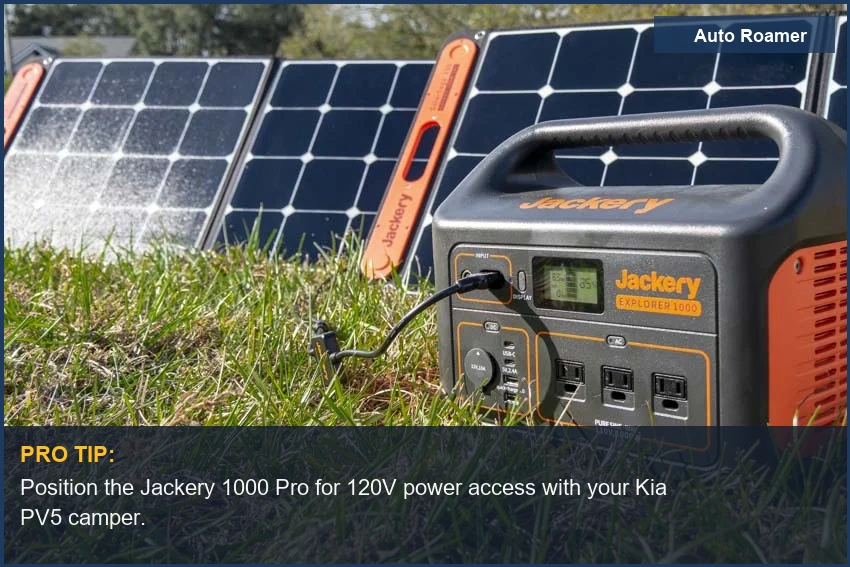

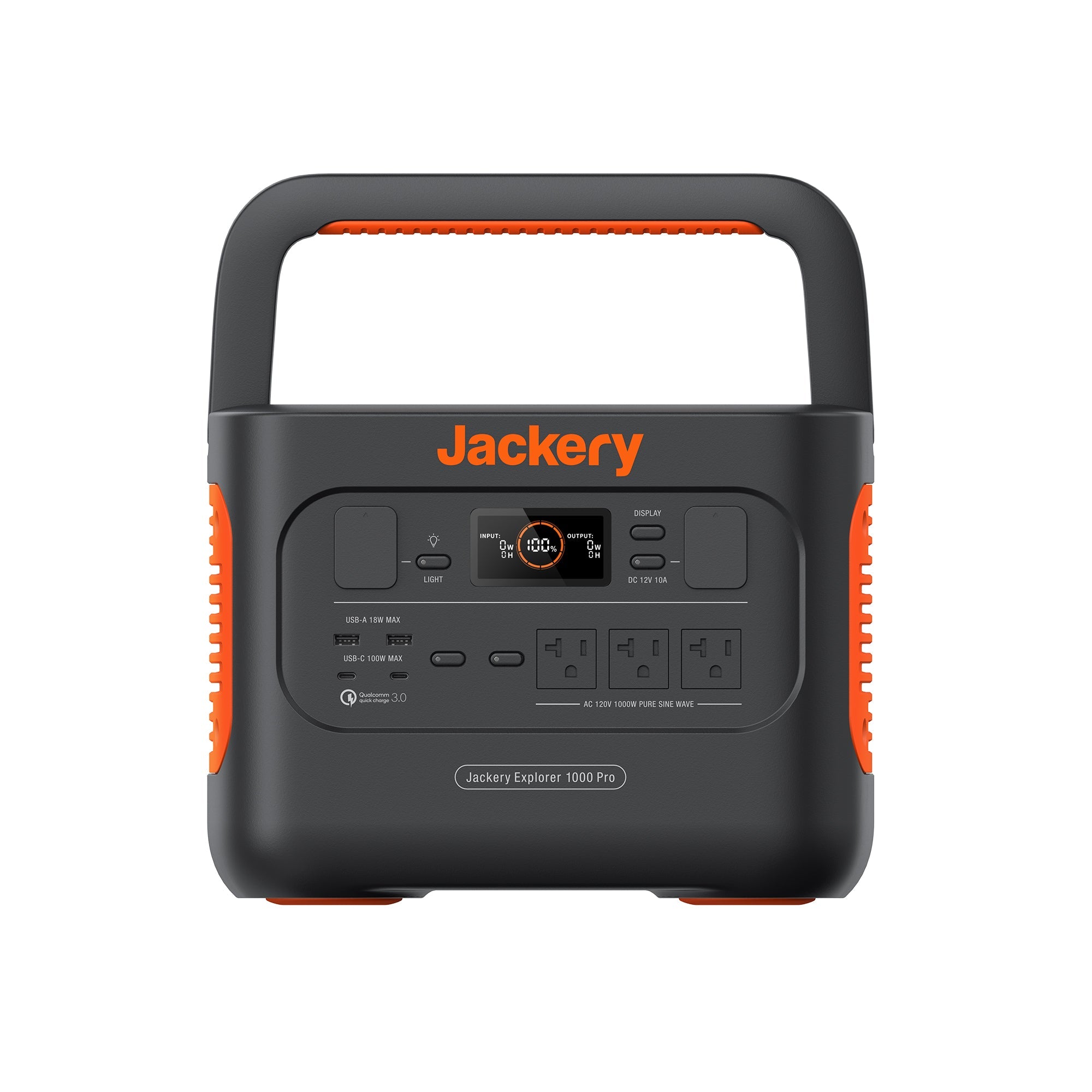

Jackery Explorer 1000 Pro (~$1100)

• Capacity: 1002Wh / 1000W continuous output, 2000W surge
• Pros: Pure sine wave inverter, fast charging (1.8 hrs AC), multiple output ports. Built-in battery management system (BMS) for thermal regulation.
• Cons: LiFePO4 versions are heavier and pricier. Max 1000W continuous can be limiting for high-draw appliances like induction cooktops.
• Best-for: Weekend warriors needing reliable power for fridge, lights, and charging small electronics. Minimizes complex wiring.

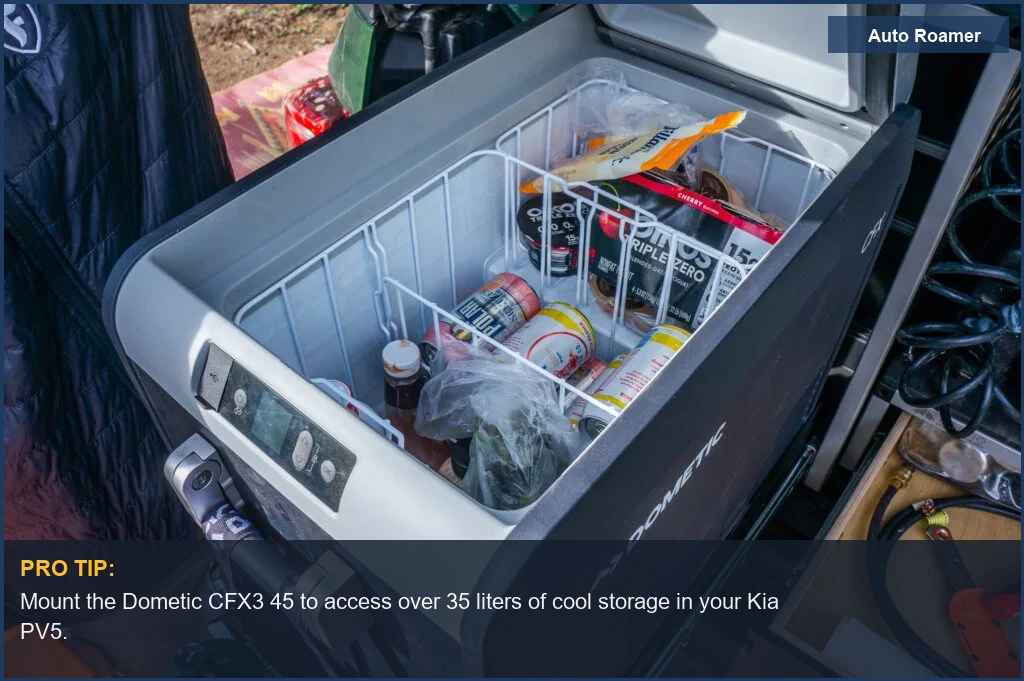

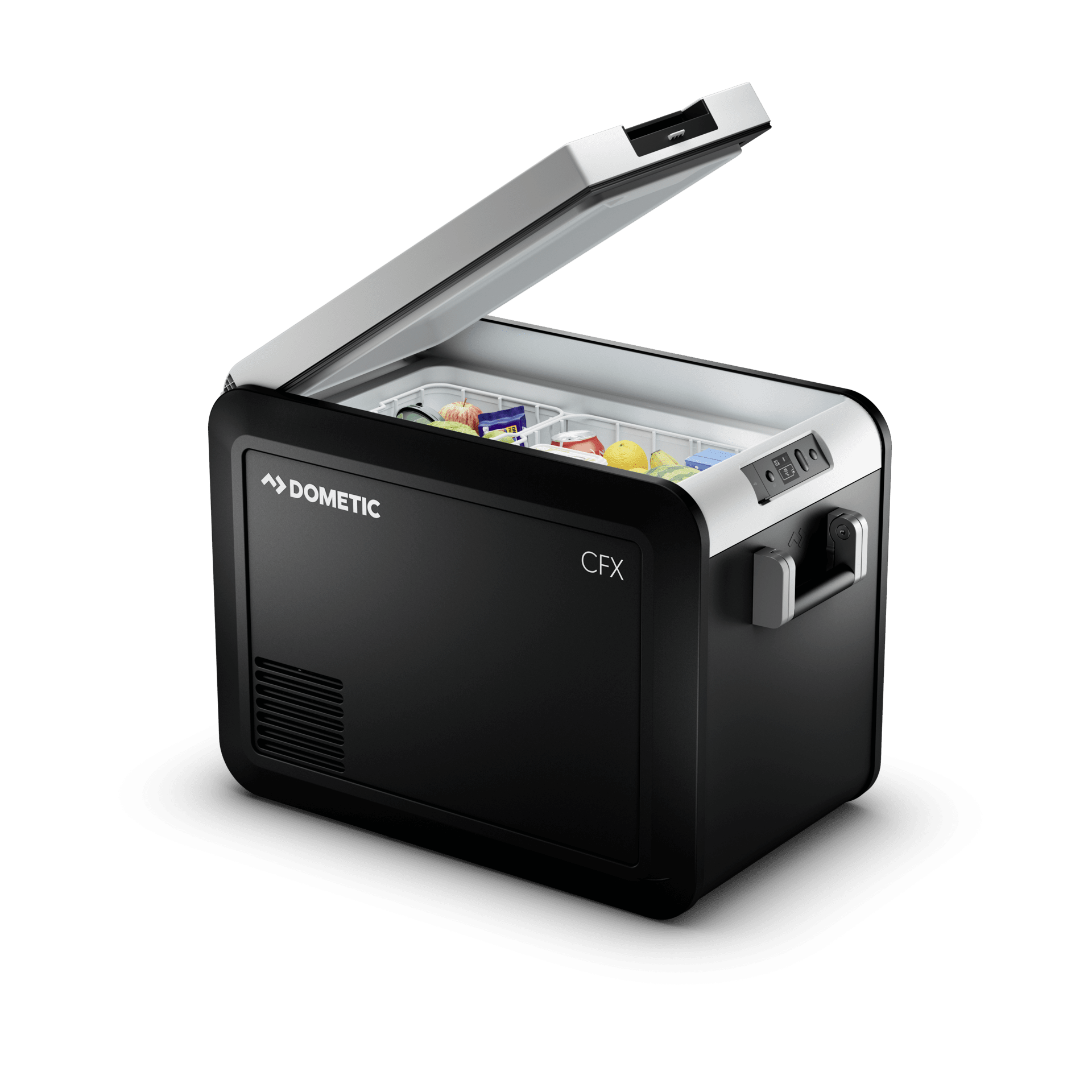

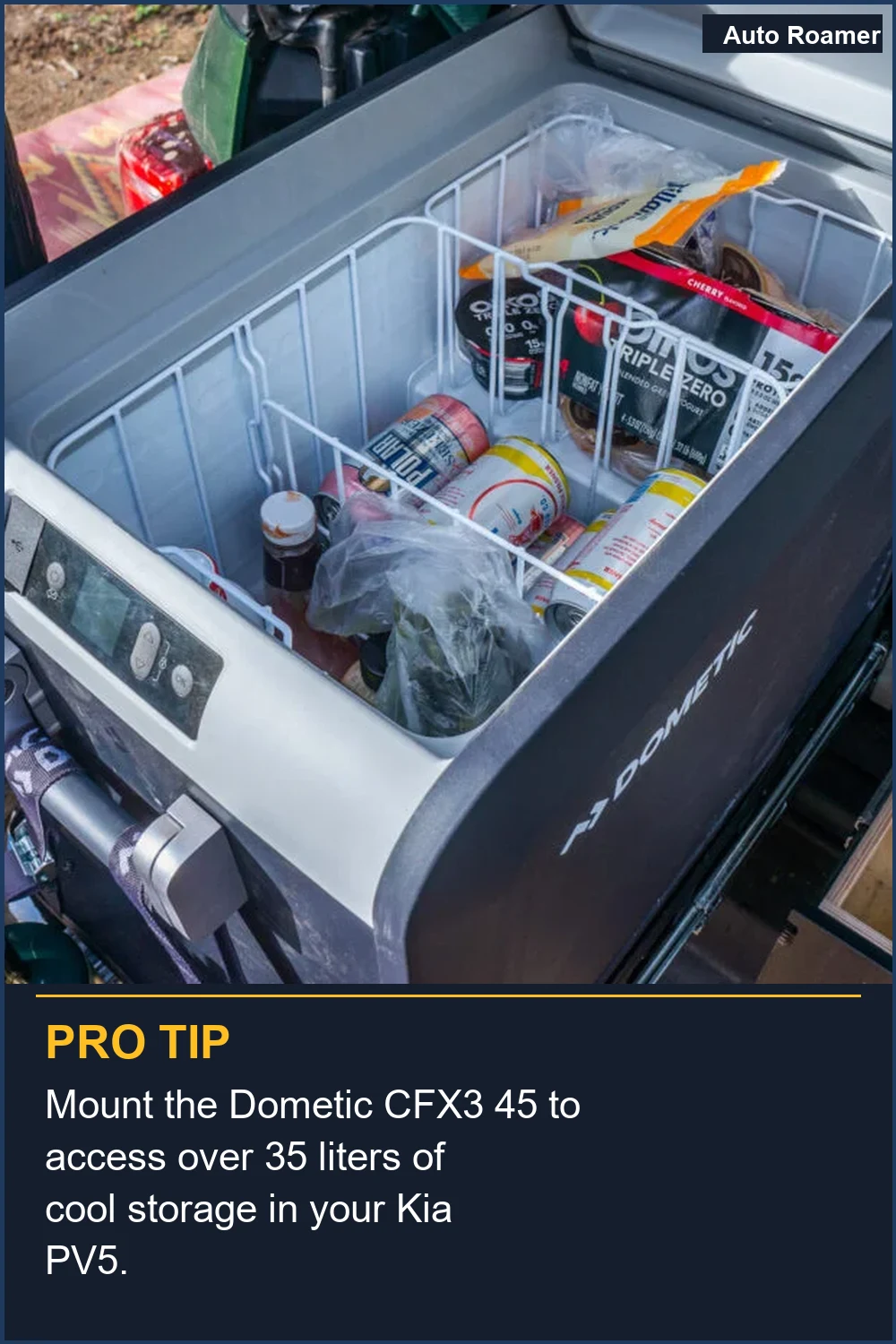

Dometic CFX3 45 (~$900)

• Capacity: 46L (holds 67 cans), -7 degrees F to 50 degrees F temp range.
• Pros: VMSO3 compressor technology for low power draw (typically 0.6-1.5 Ah/hr at 39 degrees F), robust construction, excellent insulation.
• Cons: Expensive. Can be bulky for smaller PV5 layouts.
• Best-for: Anyone who needs consistent cold storage without constantly draining their auxiliary battery. The compressor cycles less, reducing wear.

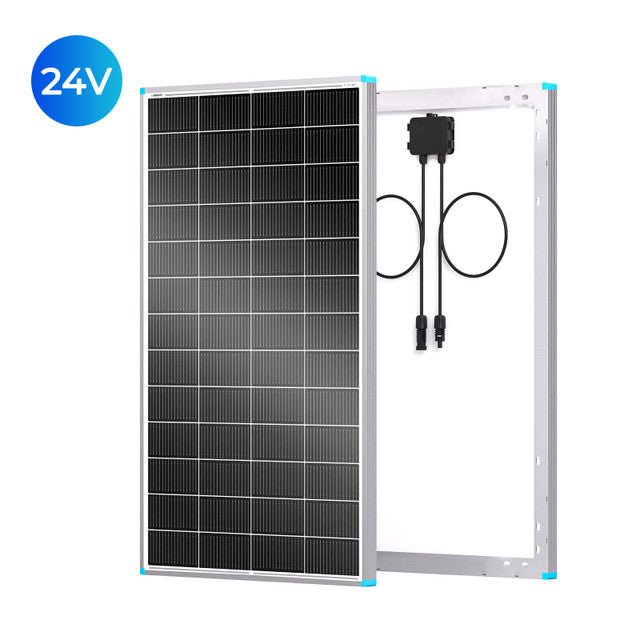

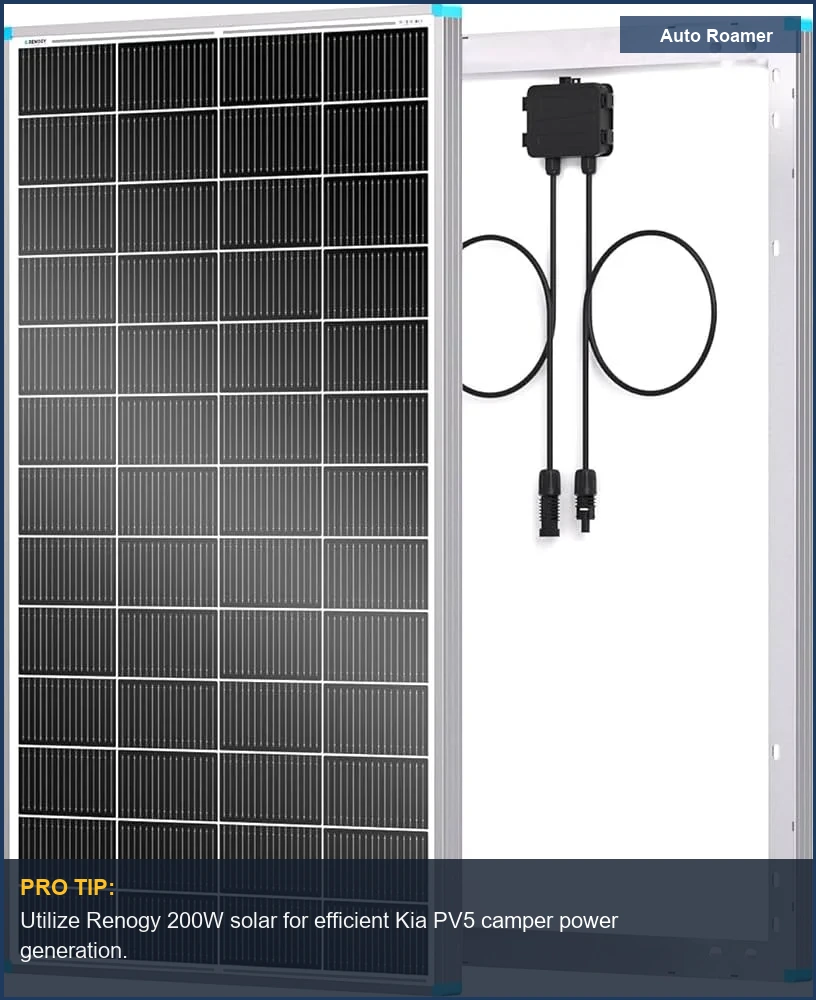

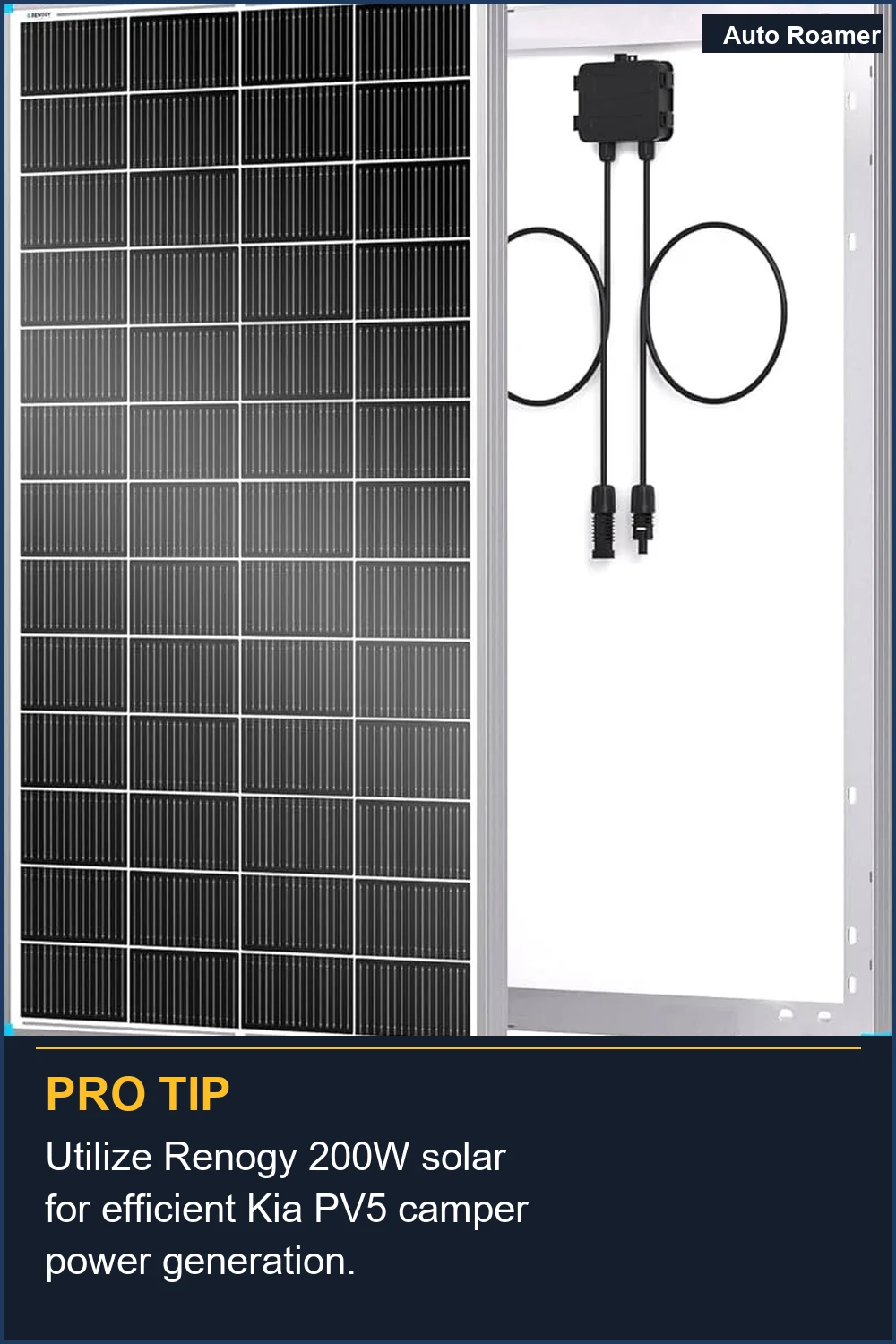

Renogy 200W Monocrystalline Solar Panel (~$200)

• Capacity: 200W, 10.8A max power current, 18.9V max power voltage.
• Pros: High efficiency (21%), durable aluminum frame, pre-drilled mounting holes.
• Cons: Rigid panels require fixed mounting. Can be susceptible to micro-cracks from excessive vibration if not properly secured.
• Best-for: Providing a continuous trickle charge to your auxiliary battery, extending off-grid time. Reduces reliance on shore power or driving to charge.

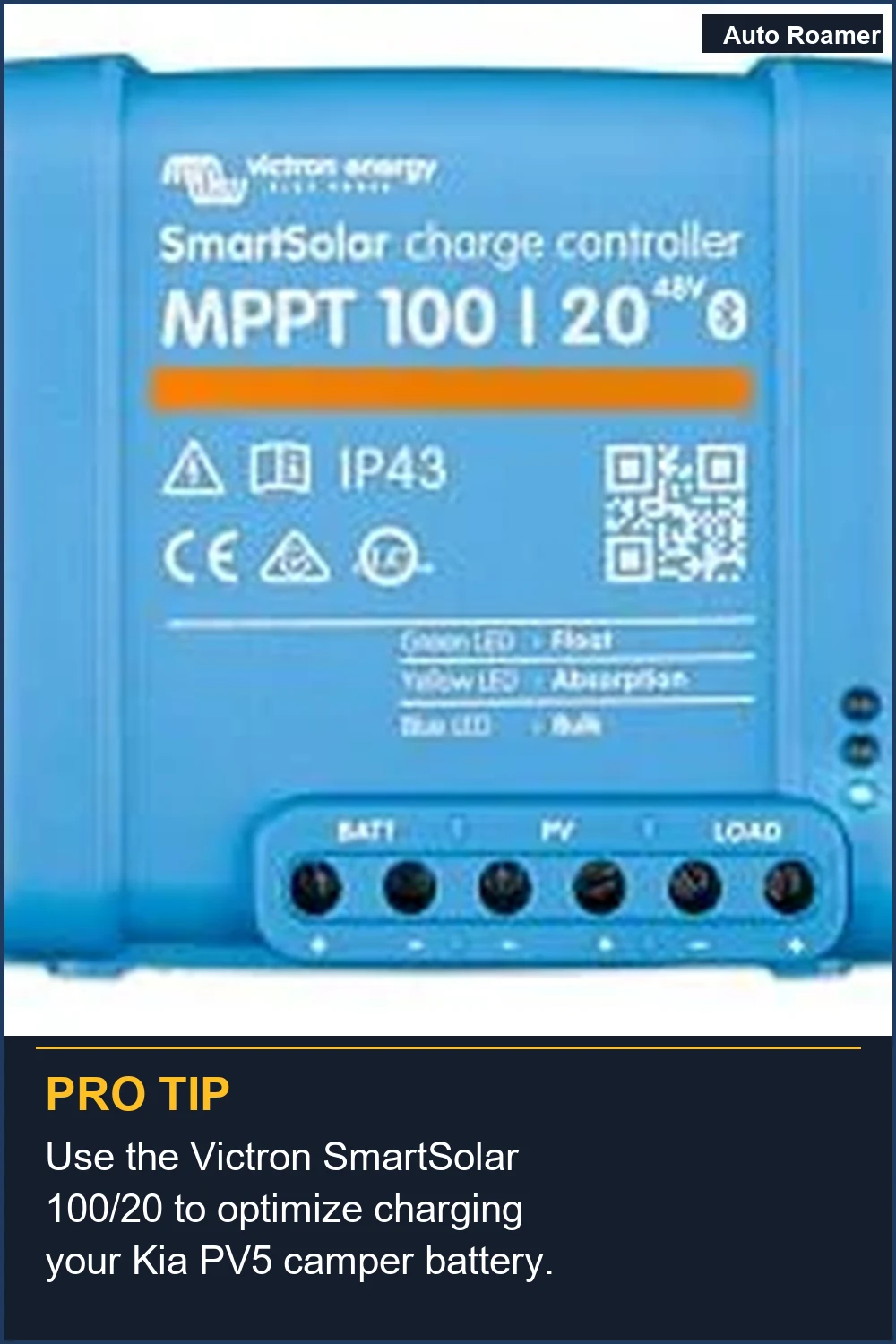

Victron Energy SmartSolar MPPT 100/20 (20A) (~$250)

• Capacity: Up to 290W (12V) / 580W (24V) solar input, 20A charge current.
• Pros: Bluetooth monitoring, intelligent charge algorithm, maximizes solar harvest. Essential for protecting your expensive LiFePO4 batteries.
• Cons: Interface can be intimidating for novices. Overkill for tiny 50W panels.
• Best-for: Optimizing solar charging efficiency and extending battery life. Prevents overcharging and deep discharge, which kills battery cycle count.

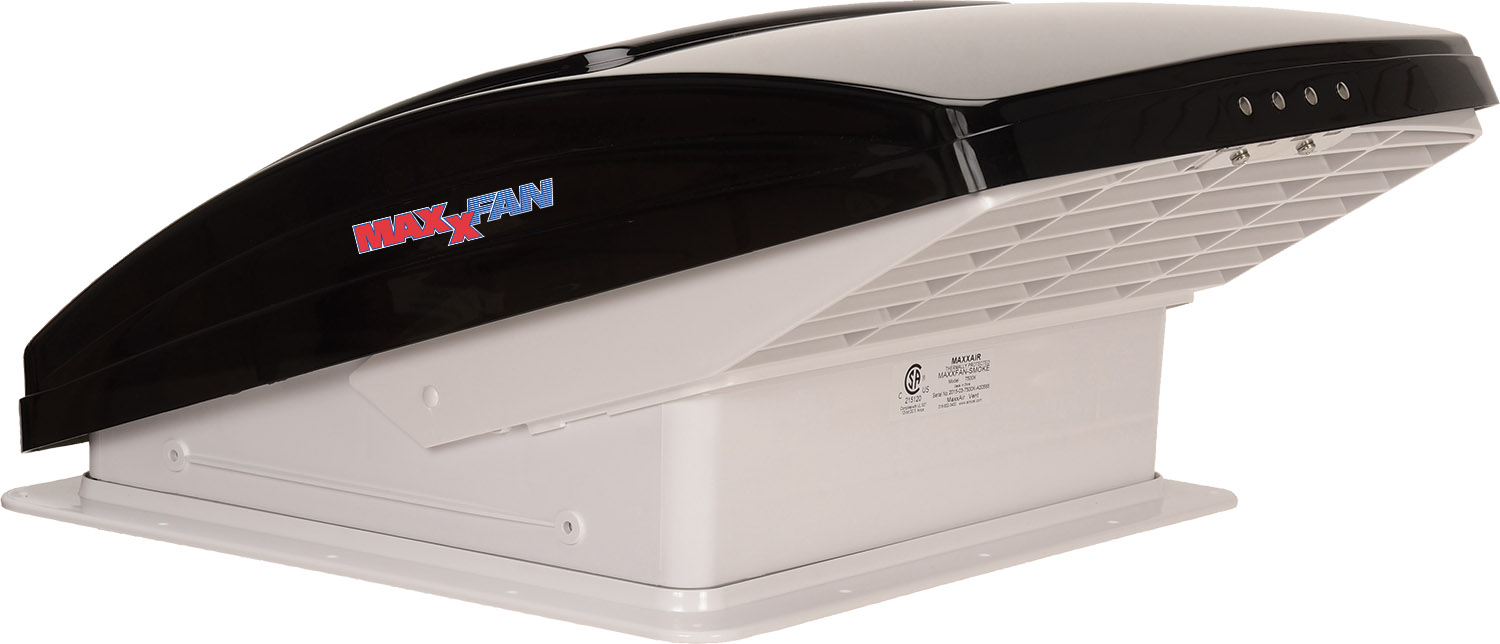

Maxxair Maxxfan Deluxe 6200K (~$350)

• Capacity: 900 CFM airflow, 10-speed fan, rain shield.
• Pros: Moves serious air, critical for thermal regulation and preventing condensation. Integrated rain cover means it can run in any weather.
• Cons: Requires a 14"x14" roof opening - a structural modification that needs careful sealing to prevent water ingress.
• Best-for: Maintaining comfortable interior temperatures and preventing moisture buildup that leads to mold. Essential for air exchange.

Shurflo Revolution 4008-101-E65 Water Pump (~$80)

• Capacity: 3.0 GPM, 55 PSI, 7.5A max draw.
• Pros: Reliable, quiet operation, built-in check valve. Good pressure for showers and sinks.
• Cons: Requires proper plumbing and electrical wiring. Can vibrate if not mounted with rubber isolators.
• Best-for: Providing consistent water pressure for your sink and outdoor shower. It's a workhorse, not a finicky gadget.

Head-to-Head Comparison

The Kia PV5 isn't entering an empty market. It's going up against established players, and its electric platform changes the game. But every platform has its quirks. YouTube conversions are already popping up, and Top Gear praises its practicality. Let's look at where the rubber meets the road.

Feature	Kia PV5 (2026 est.)	VW ID.Buzz (2024 est.)	Ford Transit Connect (ICE/Hybrid)
Powertrain	All-Electric (E-GMP.S platform)	All-Electric (MEB platform)	Internal Combustion Engine (ICE) or Hybrid
Base Price (est.)	Under £35,000 Electrifying.com	Near £60,000 Electrifying.com	~$35,000 - $40,000
Modular Design	High (16 variants, removable 'modules')	Medium (fixed body, some interior flexibility)	Low (traditional van body)
Payload Capacity (approx.)	~1,700 lbs (based on similar EV vans)	~1,400 lbs	~1,500 - 1,700 lbs
Range (WLTP)	Up to 416km (243 miles) Eco Car Guide	~420km (260 miles)	Varies greatly by engine/fuel tank
Charging Speed (DC Fast)	30 minutes (to 80%) Eco Car Guide	~30 minutes (to 80%)	N/A
Conversion Ease	High (designed for modular 'pods')	Medium (flat floor, but fixed interior)	Medium (requires more custom work)

The PV5's low entry point is a clear advantage over the ID.Buzz for loading gear Electrifying.com. Every centimeter of vertical space matters when you're living in a box. The price difference between the PV5 and ID.Buzz alone could buy you a full solar setup, a fridge, and a decent bed. That's not just savings; that's a whole new level of functionality.

Budget vs Premium: Where Your Money Actually Goes

You can throw money at a van conversion, or you can spend it smart. The difference between budget and premium often comes down to material properties, failure rates, and the thermal efficiency of components, not just a fancy label. New Atlas reported on the first pop-up PV5 conversion, and they're talking about sustainable materials and maintaining OEM components where possible. That's the smart play.

Component	Budget Option (~$USD)	Premium Option (~$USD)	Why it Matters (Dirtbag Engineer's View)
Insulation	Reflectix + Spray Foam (~$100-200)	Thinsulate/Armaflex (~$500-800)	Thermal Dynamics: Reflectix mainly reflects radiant heat; spray foam has inconsistent R-value and can trap moisture. Thinsulate/Armaflex provide consistent R-value and are hydrophobic, preventing condensation and mold. Better insulation means less battery drain for heating/cooling.
Auxiliary Battery	Lead-Acid Deep Cycle (100Ah, ~$200)	LiFePO4 (100Ah, ~$500-800)	Circuit Integrity & Cycle Life: Lead-acid has ~50% usable capacity, ~300-500 cycles. LiFePO4 offers ~80-100% usable capacity, ~2000-5000 cycles. LiFePO4 also maintains voltage under load better, reducing voltage drop and resistive heating in your wiring. Budget batteries fail faster.
Refrigerator	Thermoelectric Cooler (~$100-150)	Compressor Fridge (Dometic CFX3, ~$600-900)	Thermal Dynamics & Current Draw: Thermoelectric coolers are inefficient, pulling 4-6A constantly, struggling to get below 40 degrees F. Compressor fridges cycle on/off, drawing 0.6-1.5 Ah/hr. Premium saves massive battery power and actually keeps food cold, preventing spoilage.
Solar Charge Controller	PWM Controller (~$30-50)	MPPT Controller (Victron SmartSolar, ~$150-300)	Circuit Integrity & Efficiency: PWM controllers are cheap but inefficient, losing up to 30% of solar energy. MPPT controllers actively track max power point, increasing efficiency by 15-30%, especially in cloudy conditions. This means more usable power delivered to your battery.
Water Heater	Camp Shower Bag (~$20)	Propane Tankless Water Heater (~$150-300)	Fluid Dynamics & Thermal Transfer: Shower bags are gravity-fed, low pressure, and rely on passive solar heating. Tankless heaters provide instant, pressurized hot water. The premium option means consistent thermal comfort, without having to wait 3 hours for the sun to do its job.

The PV5's low step-up point makes loading cargo easier Electrifying.com. That's a small detail that makes a big difference when you're hauling gear in and out daily. Don't skimp on core systems like battery and fridge; they dictate your actual living comfort and operational reliability.

The Bottom Line

• A Solid Foundation: The Kia PV5, with its modular design and all-electric E-GMP.S platform, is a genuinely strong contender for a camper conversion Eco Car Guide. Its low floor and urban-friendly dimensions make it practical for both driving and living.
• Cost-Effective Entry: Significantly undercutting rivals like the VW ID.Buzz by thousands of pounds Electrifying.com, the PV5 leaves more budget for critical conversion components. This isn't just a cheap van; it's a strategically priced platform.
• Conversion Potential is High: The vehicle is designed for flexibility, meaning less structural compromise when adding your own interior. Companies are already rolling out flat-pack kits Auto Roamer, which simplifies the build process.
• Electric Vehicle Trade-offs: While the 243-mile WLTP range is respectable, real-world winter driving will drop that to around 150 miles Electrifying.com. Thermal cycling and auxiliary loads will always impact your usable range. Plan your routes and charging.
• Focus on Mechanical and Electrical Integrity: Don't just bolt things in. Ensure all added components are structurally sound, properly fused, and within the vehicle's electrical and payload limits. A cheap mounting bracket will fail under dynamic load.

Overall, the PV5 offers a compelling blend of affordability, modularity, and electric efficiency. It's not just a van; it's a blank canvas with a solid engineering backbone.
