Toyota RAV4 Roof Rack Weight Capacity (Tent-Safe Numbers)

Open the owner's manual for any 5th-generation RAV4 - the 2019 through 2026 cars - and you will find one roof number, printed in plain language: "Do not exceed 176.4 lb. (80 kg) cargo weight on the roof luggage carrier." That is the OFFICIAL figure, straight from Toyota, and it is the only roof-load number the company commits to on paper. Every honest conversation about what you can strap up top starts and ends with that 176.4 lb.

Here is the trap I want you to sidestep before we go a paragraph further. That 176.4 lb is a dynamic limit - the weight the roof is rated to carry while the car is moving down the road, absorbing bumps, wind, and the leverage of a turn. It is not the parked number, and it is not the number most SEO blogs quote at you. Get dynamic-versus-static straight and the whole subject stops being confusing.

I read the manual before I trust a spec because the marketing number and the engineering number are rarely the same one. The 176.4 lb is the engineering number - it already bakes in Toyota's safety margin for a car at highway speed. When a rack company or a blog hands you a different figure, the first question is always the same: is that a vehicle rating, or a rack rating dressed up to look like one?

That distinction - the roof's rating versus the rack's rating - is the thing this whole page exists to untangle. They are two different numbers from two different sources, and the internet collapses them into one wrong fact more often than it gets them right. If you carry only one line away from here, make it this: 176.4 lb dynamic is Toyota's roof, and everything else is a rack maker's spec you have to keep in its own lane. For the wider picture across brands, the SUV roof rack weight limits guide lays the same logic over the rest of the segment.

Search "RAV4 roof weight limit" and you will trip over the number 165 lb, usually presented as "Toyota's factory limit." It is wrong, and it is wrong in a specific, traceable way that tells you a lot about how these articles get written. That 165 lb is a crossbar rating - a Thule or Yakima aftermarket bar spec - that got copied into a paragraph, mislabeled as the vehicle number, and then reprinted by the next site down the line.

So you end up with two numbers in circulation that are close enough to look interchangeable but come from completely different places:

• 176.4 lb - the OFFICIAL Toyota dynamic roof-load limit from the owner's manual. This is the vehicle's rating.
• ~165 lb - a VENDOR crossbar rating (Thule/Yakima kits land in this range). This is the rack's rating, and it has Toyota's name on it only because a writer put it there by mistake.

Rack rating is not roof rating. That's the sentence I'd tape to the dashboard. Your real ceiling on any given day is whichever of the two is lower - if your crossbars are rated 165 lb, the bars are your limit even though the roof itself would take 176.4 lb. But that is a math problem you solve yourself, not a Toyota spec, and calling 165 lb "the factory limit" gets the source flatly wrong.

Why does this matter beyond pedantry? Because if you trust the mislabeled number, you never learn where the real constraint lives. A reader who thinks 165 lb is a fixed vehicle fact will swap crossbars and assume nothing changed. A reader who knows the roof is 176.4 lb dynamic and the bars are a separate, swappable 165 lb understands that a beefier bar buys back roof capacity right up to Toyota's ceiling - and not one pound past it.

Almost every argument about roof weight is really two people using one word for two different numbers. Rack makers draw the line clearly, so borrow their definitions. Dynamic capacity is what the roof can carry while you drive - the number Toyota rates at 176.4 lb. Static capacity is what it can hold parked and motionless, with nothing shoving it sideways through a corner or slamming it over a pothole.

Static is always the bigger number, and by a wide margin, because a parked roof only fights gravity - no wind load, no cornering leverage, no impact from the road. Thule's own guidance (VENDOR) uses a rule of thumb that static capacity runs roughly three times the dynamic figure. Yakima (VENDOR) publishes its crossbars at up to 600 lb static with a lower dynamic rating. Both are rack-maker numbers, and neither is Toyota speaking.

Now the part everyone gets wrong: Toyota publishes no static roof rating for the RAV4. None exists. If you run 176.4 x 3 you get about 528 lb, and you will see that "~528 lb static" figure quoted online as if it were a Toyota spec. It is not. It is the manual's dynamic number multiplied by a rack maker's rule of thumb - a derived estimate, useful for rough planning, but not something Toyota ever printed or stands behind.

I will not hand you a static number and pretend Toyota gave it to me, because Toyota didn't. What I can tell you honestly is the shape of it: parked, your roof holds a good deal more than 176.4 lb, likely in the several-hundred-pound range that the 3x rule of thumb implies - but treat any specific static figure as a vendor-rule estimate and verify against your own trim's manual before you bet a rooftop tent and two sleeping bodies on it. This is the exact distinction the rooftop tent weight limits guide walks through for tents specifically.

This is the question that sends people down the 165-versus-176 rabbit hole in the first place, so let me answer it the way I'd answer it in the shop. A hardshell rooftop tent runs 100 to 130-plus pounds empty. Add the crossbar hardware to mount it and you are sitting right at, or slightly over, Toyota's 176.4 lb OFFICIAL dynamic limit before a single person or sleeping bag is anywhere near it.

Split it into the two states we just defined, because that's the only way the answer makes sense:

• Driving (dynamic). Tent plus bars is marginal-to-over the 176.4 lb ceiling. The tent's contents don't count here - you're not sleeping while driving - but the tent and mounting hardware alone eat most or all of your dynamic budget. A lighter softshell tent leaves more room; a heavy hardshell can put you over on the highway.
• Parked (static). Tent plus two adults is far heavier - easily 400 to 500 lb - and this is where the roof's much larger static capacity carries you. But remember: Toyota never published that static number, so you're leaning on the vendor 3x rule of thumb, not a factory guarantee.

The honest verdict: a light rooftop tent is feasible on a RAV4, but this is not the SUV you throw the heaviest hardshell on and forget about. The dynamic limit is genuinely tight - tighter than the tent marketing implies - so weigh your specific tent plus bars and compare it to 176.4 lb before you buy. Check your own trim's manual, because the number is the number and wishful reading of it is how roofs get dented.

If the tent math comes out over your comfort line, sleeping inside the RAV4 sidesteps the roof limit entirely - the RAV4 cargo dimensions for sleeping guide has the fold-flat measurements, and gear you carry inside never touches your 176.4 lb budget at all.

Before you weigh anything, check what's actually bolted to your roof, because the RAV4 lineup is not uniform and this trips people up. The trim you bought decides whether you already have something to mount to or whether you're buying a rack system from scratch - and it does not change the 176.4 lb ceiling one way or the other.

• LE and XLE (OFFICIAL trim spec): these ship with bare raised roof rails - the two rails running front-to-back - and nothing crossing them. You cannot strap a load to raised rails alone; there is nothing spanning the gap. You must buy a crossbar system first before the roof does you any good.
• Adventure and TRD Off-Road (OFFICIAL trim spec): these come with crossbar-ready "bridge" rails designed to accept crossbars more directly. You're closer to load-ready out of the box, but you're still working under the same ceiling.

Here's the point people miss: the Adventure and TRD trims look more rugged and get marketed that way, so buyers assume they carry more up top. They don't. The 176.4 lb dynamic limit is vehicle-wide. It is not raised for the Adventure or the TRD Off-Road. The bridge rails make mounting easier; they do not buy you a single extra pound of roof capacity. That's a trim convenience, not a capacity upgrade, and the marketing quietly lets you conflate the two.

So the practical read is: if you're on an LE or XLE, budget for a crossbar system as step one and know that whatever you bolt on inherits the same 176.4 lb ceiling. If you're on an Adventure or TRD, you save a step, but don't let the off-road badge talk you into loading the roof heavier than Toyota rates it. The badge is paint and plastic; the manual is physics.

The most expensive misconception in this whole subject is that a burlier aftermarket rack buys you more roof capacity. It doesn't, and the good rack makers will tell you so themselves if you read their fine print instead of the box.

Run through what the vendors actually publish:

• Thule and Yakima crossbar kits (VENDOR): these carry dynamic ratings around 165 lb - the very number that gets mislabeled as Toyota's factory limit. That's the bar's rating, and if it's lower than 176.4 lb, the bar becomes your working limit.
• Front Runner Slimline II (VENDOR): Front Runner publishes no per-vehicle dynamic number for its platform rack and instead defers to the automaker's roof limit. That's an honest position worth respecting - they're telling you the vehicle's rating governs, not theirs.

Put those together and the rule writes itself: no aftermarket rack raises Toyota's 176.4 lb ceiling. A heavier-duty rack can let you use more of the roof's rated capacity - a bar rated 176 lb lets you reach Toyota's ceiling where a 165 lb bar would have stopped you fifteen pounds short - but it can never let you exceed the vehicle rating. The roof structure and its mounting points are what they are.

Front Runner's "we defer to the automaker" line is the tell for how to think about all of this. The vehicle sets the hard ceiling; the rack sets a possibly-lower working limit; you live under whichever is smaller. Anyone selling you a rack as a capacity upgrade for the roof itself is selling you the wrong story. For choosing between systems on their merits, the best roof rack for SUV camping guide compares the platforms without the capacity mythology.

Since Toyota won't give you a static figure, the numbers you see quoted come from the rack makers - so it's worth knowing exactly how they land on them, because it changes how much weight you should put on the figure.

The two you'll run into most:

• Thule's 3x rule of thumb (VENDOR): Thule's guidance is that static capacity runs roughly three times the dynamic rating. Apply that to the RAV4's 176.4 lb and you get about 528 lb - which is where the "~528 lb static" figure online comes from. It is 176.4 times a rule of thumb, full stop. Not a measured number, and not Toyota's.
• Yakima's published limits (VENDOR): Yakima cites up to 600 lb maximum static on its crossbars with a lower dynamic rating. That's a rack spec - what the bars can hold parked - and it still sits on top of whatever the vehicle's own roof allows.

See what's happening here? Every static number in circulation traces back to a rack maker's rule or a rack maker's product spec - never to a Toyota engineering document, because that document doesn't exist for static load on this vehicle. That doesn't make the numbers useless. It makes them estimates, and estimates are fine as long as you label them honestly and don't stake a person's safety on a rule of thumb.

My rule when I'm planning around an estimate: give it a haircut. If the 3x rule suggests ~528 lb static and I'm putting a tent and two people up there parked, I want real margin under that estimate, not to be flirting with it - because the moment I've mislabeled a vendor rule of thumb as a factory guarantee, I've stopped doing engineering and started doing hope. Attribute every static figure to the rack maker who produced it, treat it as a planning estimate, and verify the dynamic side against your own manual.

Enough theory - here's how I'd actually load a RAV4 roof without getting into trouble, boiled down to the moves that keep you honest about which number you're up against.

• Weigh the load, don't guess it. Bathroom scale under the tent, the box, whatever it is. "Feels about a hundred pounds" is how roofs end up over 176.4 lb dynamic without anyone deciding to break the rule.
• Find your lower number. Compare your crossbar's rating (often ~165 lb, VENDOR) against Toyota's 176.4 lb (OFFICIAL). The smaller one is your real driving ceiling. Include the weight of the rack and mounts themselves - they count against dynamic load.
• Keep the heavy stuff low and inside. Roof weight also raises your center of gravity and hurts handling long before you hit any number. The best fix for a tippy, wind-caught RAV4 is to carry less up top, not more.
• Treat static as parked-only. The bigger static capacity is real, but it applies when you're stopped. The second you drive off with a rooftop tent still deployed and loaded, you're back under the 176.4 lb dynamic limit - so pack the tent down to travel weight before you roll.

None of that is exotic. It's just refusing to let a marketing number or a mislabeled blog figure stand in for the one Toyota actually printed. The spec that matters when you're moving is 176.4 lb dynamic; the spec that's mostly marketing is whatever bigger, rounder number made the roof sound heroic.

If you're mounting a tent for the first time, the rooftop tent install guide covers the torque-and-fit side so the hardware you're counting against your dynamic budget is actually holding the way it should.

Here's the move that quietly solves the whole weight problem: put the heavy comfort gear inside the RAV4, where it never touches your 176.4 lb roof budget. The roof is precious, tightly rated real estate. Your cargo bay is not - it carries far more, sits low, and doesn't fight your handling.

The two pieces worth carrying inside on every trip:

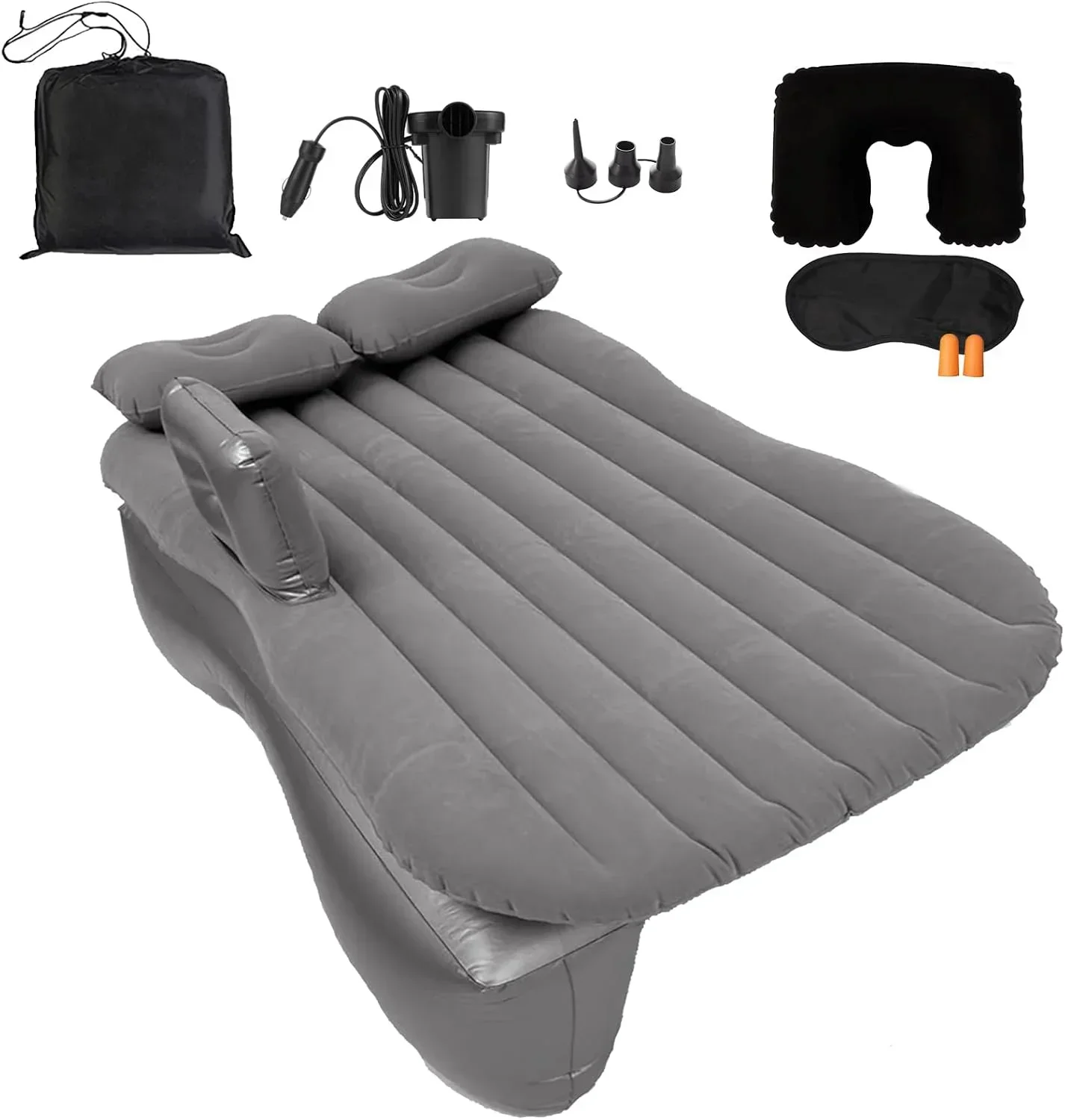

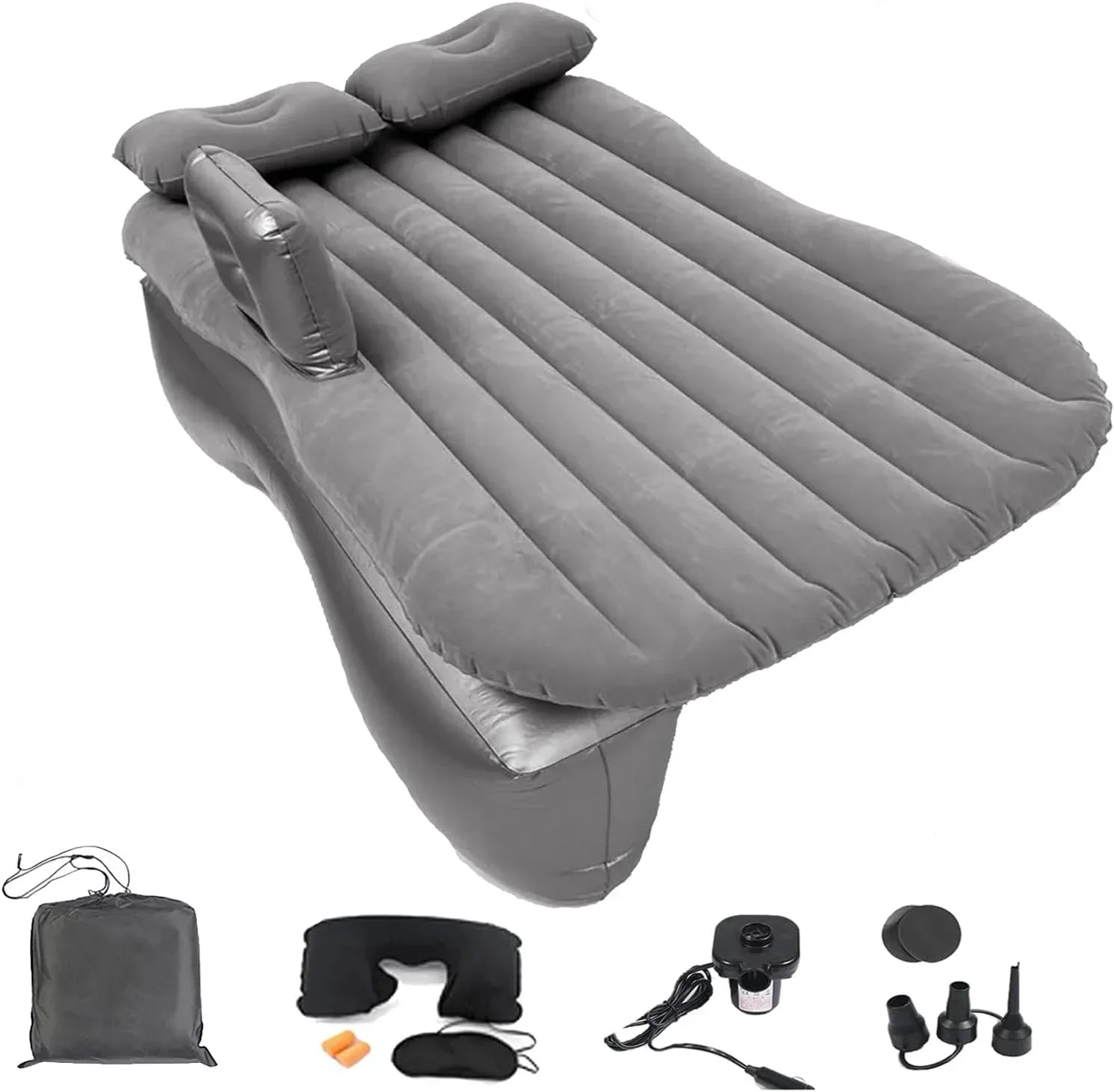

• An Onirii SUV air mattress for sleeping in the folded-down cargo bay. It turns the flat load floor into a real bed in one inflate, and every pound of it rides inside - zero roof load, no crossbars, no dynamic-limit math. If the tent numbers make you nervous, sleeping inside is the answer that sidesteps the roof entirely.

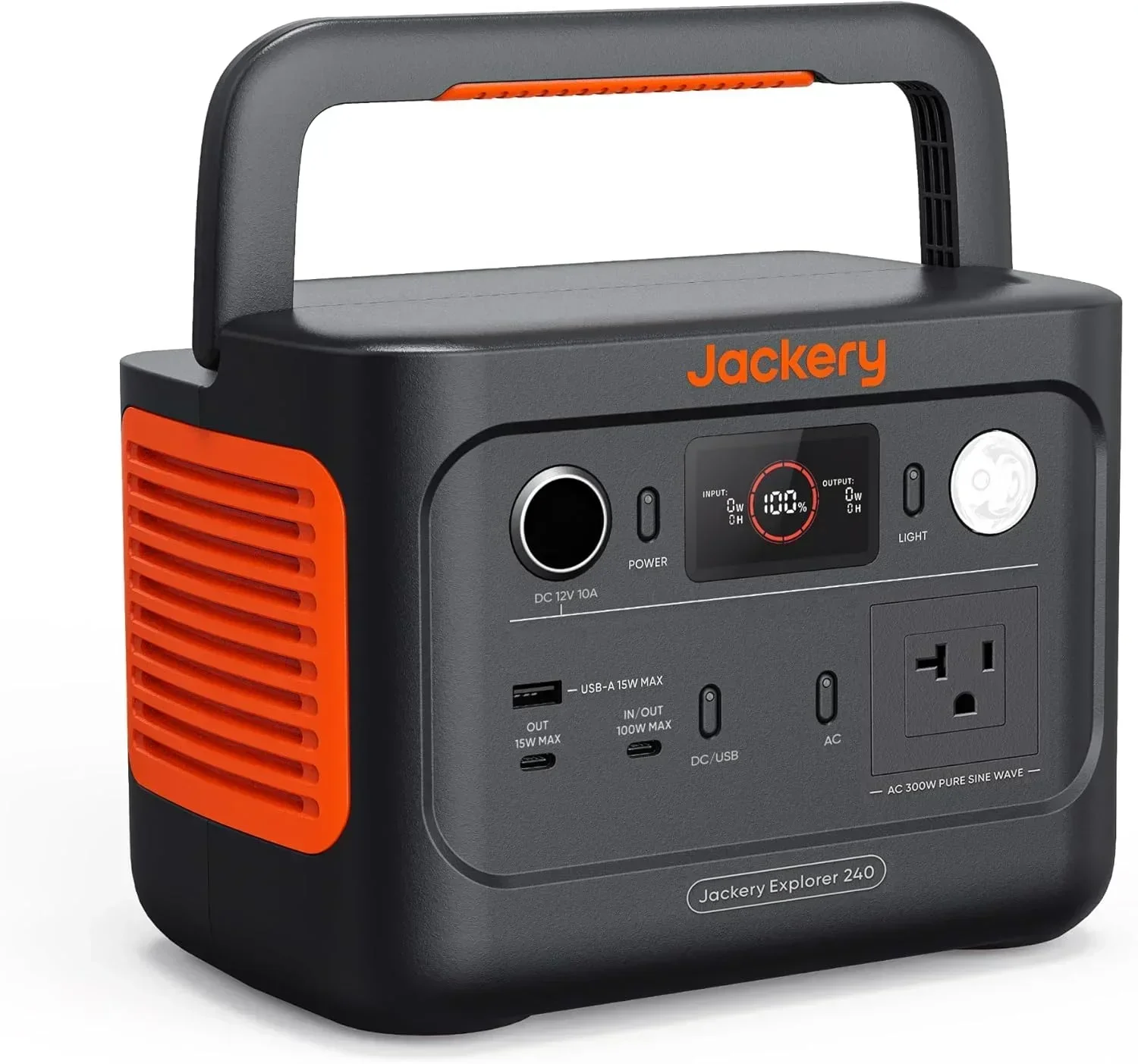

• A Jackery Explorer 240 v2 power station for running a fan, a light, and phone charging overnight without idling the engine. It sits on the floor, tops back up off the 12V socket as you drive, and keeps the whole rig quiet and low-profile in a lot.

I frame it that way on purpose: this is gear you carry, not gear you mount. The roof-rack question is really "how much can I safely put up top," and the best answer is usually "less than you think - so put the comfort stuff inside where the limit isn't 176.4 lb." A RAV4 with the seats folded is a genuinely good sleep platform, and it doesn't cost you a single pound of your dynamic roof budget.

Keep the roof for what has to go up there - a light tent, a cargo box, the bulky low-density stuff - and keep the dense, heavy, comfort-critical gear at floor level. That's how you stay well under 176.4 lb dynamic while still traveling comfortable.

Strip away the mislabeled numbers and the RAV4 roof story is short and clean. There is exactly one figure Toyota stands behind, and it's the one in the manual: 176.4 lb (80 kg) dynamic, the driving limit. That is your real ceiling any time the wheels are turning.

The mechanic's checklist, so you never get talked out of the right number:

• 176.4 lb is the OFFICIAL dynamic limit - Toyota, owner's manual, 2019-2026 RAV4. That's the spec that matters when you drive.
• Toyota publishes no static number - any "~528 lb static" you see is 176.4 times a vendor rule of thumb, an estimate, not a Toyota fact.
• "165 lb" is a crossbar rating, not the factory limit - rack rating is not roof rating; if your bars are lower-rated, the bars are your working ceiling.
• The ceiling is trim-wide - Adventure and TRD don't get more roof capacity, just easier mounting; LE and XLE need crossbars bought before the roof is usable at all.
• No rack raises the ceiling - Front Runner even says so, deferring to Toyota's limit. A better bar lets you reach 176.4 lb, never exceed it.

A light rooftop tent fits the RAV4 if you weigh it honestly against 176.4 lb dynamic and don't let the badge or the blog talk you past it. And when the roof math gets tight, the smartest move is the one nobody's selling you: sleep inside, carry your comfort gear at floor level, and leave the roof for the light stuff. Read the manual, respect the one number Toyota actually prints, and the RAV4 will carry you a long way.
