Toyota RAV4 Cargo Dimensions for Sleeping: The Real Numbers

If you're going to sleep in a Toyota RAV4, four measurements decide everything, and the brochure only brags about one of them. The RAV4 gives you about 69.8 cubic feet of cargo space with the rear seats folded, per iSeeCars and Andy Mohr Toyota - a competitive number for a compact SUV. But volume doesn't lie down; length, width, and height do, and that's where I spend my time as someone who builds sleeping platforms for these vehicles.

The honest short version: the RAV4's cargo floor runs close to 71 inches from the folded seatbacks to the tailgate per RAV4 Hub, but only about 64 of those inches are truly flat - the rest slopes up the seatbacks. Width tapers to 39.4 inches at the narrowest between the wheel wells, per Andy Mohr Toyota, and you get 34.5 to 36.6 inches of height to sit up in. Read those four numbers like a builder, not a shopper, and you know before you buy a mattress whether the RAV4 fits you flat or fights you all night. Let's take them one at a time.

Length is the make-or-break dimension, and it's also the one most guides get wrong. RAV4 Hub lists the folded cargo floor at about 71 inches from seatback to tailgate - which sounds like plenty, since 71 inches is just under 6 feet. The catch is that number is measured up the sloped, slightly raised seatbacks. The genuinely flat section of floor is closer to 64 inches, about 5 feet 4 inches.

Here's what that means for real bodies:

• Under 5 foot 4: you lie flat on the level section with room to spare.
• 5 foot 4 to 6 foot: you fit the full ~71 inches only if you bridge the sloped seatback step so your legs don't ride uphill - a cushion, a fill, or a platform extension does it.
• Over 6 feet: you sleep diagonally, or you build a flat platform that spans the whole bay from tailgate to front seatbacks.

The lesson every RAV4 sleeper learns: don't trust the 71-inch figure at face value. Measure your own flat length and plan to level that seatback slope, because a bed that runs uphill at the hips is a bed you won't sleep in twice.

For the builders: the platform math is friendly here. A deck that spans from the tailgate to the top of the folded seatbacks rides on the highest point of the slope, which means a full-length flat surface costs you only the height of that step - and the payoff is the entire ~71 inches usable edge to edge. Most RAV4 platform builds are a single sheet with two support rails, sized in an afternoon from the four measurements this page gives you.

Width is where the RAV4 quietly answers the question of one sleeper or two. Andy Mohr Toyota lists cargo width from 39.4 inches at the narrowest - between the wheel wells - up to 59 inches at its widest, and Toyota of Anaheim confirms the wide figure. That taper matters more than the big number, because your shoulders and hips sit in the narrow zone between the wheel arches.

Two adults sleeping side by side want somewhere around 48 inches of usable width. The RAV4's 39.4-inch pinch between the wheel wells falls well short of that, which is why the RAV4 is an excellent one-person bed and a genuine squeeze for two.

How to work with the width you have:

• Solo: the 39.4-inch narrow point is still wider than most sleeping pads, so a single sleeper has margin.
• Two people: plan for a snug fit, narrow pads, and no gear beside you - or accept that one of you sleeps better than the other.
• Use the 59-inch zone: position your torso where the bay opens up toward the tailgate to buy shoulder room.

Height decides whether the RAV4 feels like a tent or a coffin, and the numbers are middling-good for the class. Andy Mohr Toyota lists cargo-area height from 34.5 inches to 36.6 inches depending on where you measure. That's a hair under 3 feet at the tallest - enough to sit up partway, prop on an elbow, and change clothes, but not enough to kneel fully upright.

Getting dressed happens seated or lying down, not standing hunched - practice once in the driveway so it isn't a cold-morning surprise. Mattress thickness eats headroom too: every inch of pad you add is an inch of sitting height you lose, so a 3-inch pad turns 36.6 inches into 33.6 - still workable, but run the math before you pick a mattress.

The raised floorboard costs height as well: the same roughly 2-inch board position that flattens the floor also lifts your whole bed 2 inches closer to the ceiling. Flatness is worth it - just budget with both numbers, not one.

For a compact SUV this is a fair result. You won't stand, but you also won't feel boxed in, and the tall glass keeps it from feeling like a cave. If sitting fully upright every morning is non-negotiable for your back, that's a signal to shop taller vehicles - no pad choice buys back the roofline.

Here's the detail that separates a flat RAV4 bed from a lumpy one, and it's a feature most owners don't know they have. The RAV4's cargo area includes an adjustable floorboard that raises the load-floor height by roughly 2 inches, per Andy Mohr Toyota. Set it in the high position and it closes much of the gap between the cargo floor and the folded seatbacks, so the floor sits closer to level end to end.

The full leveling recipe for a RAV4 build:

• Raise the adjustable floorboard to its top setting to cut the step down before you add anything.
• Fill the remaining seatback slope with a rolled blanket, foam blocks, or a cut pool noodle so the hips don't ride uphill.

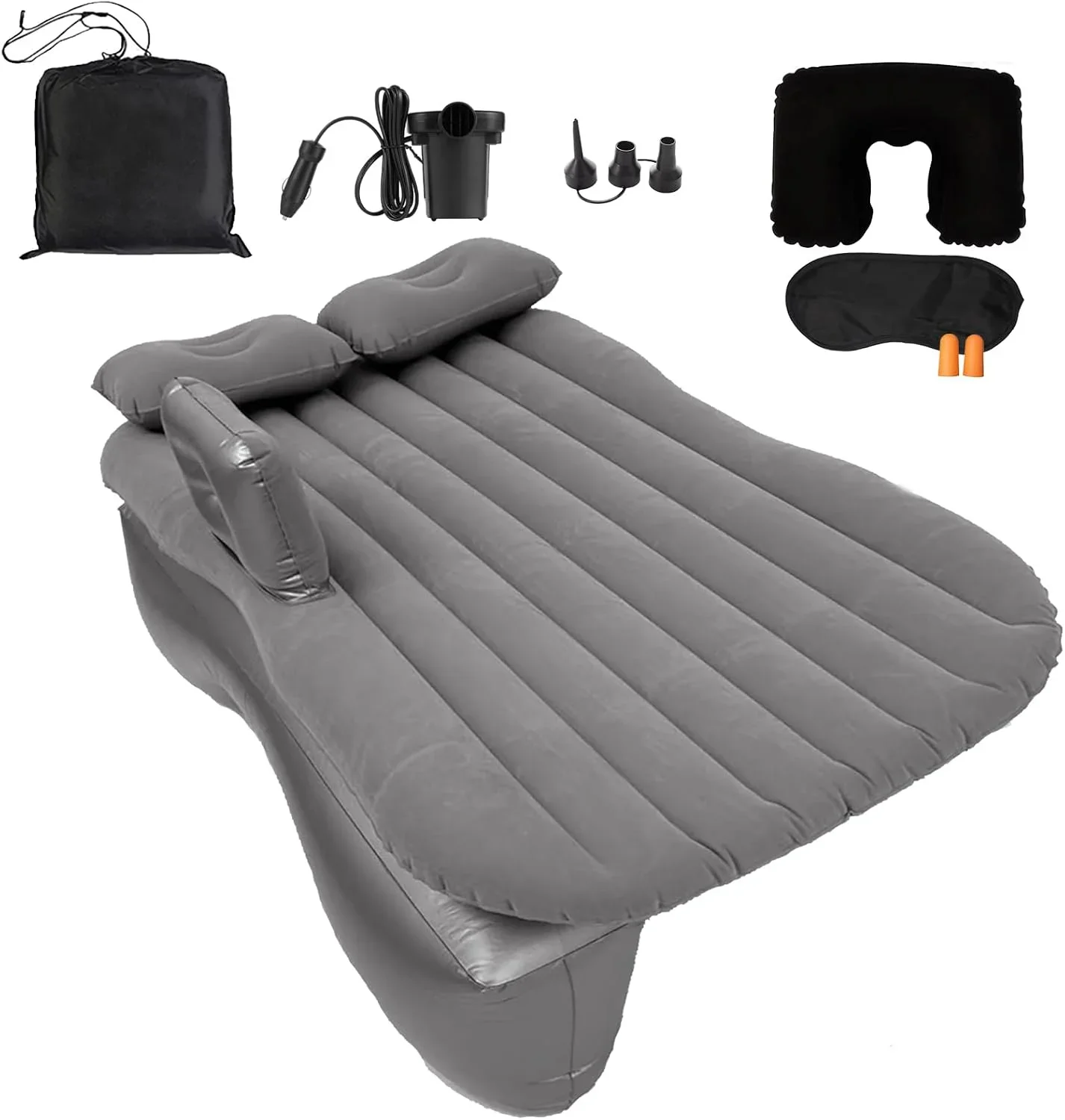

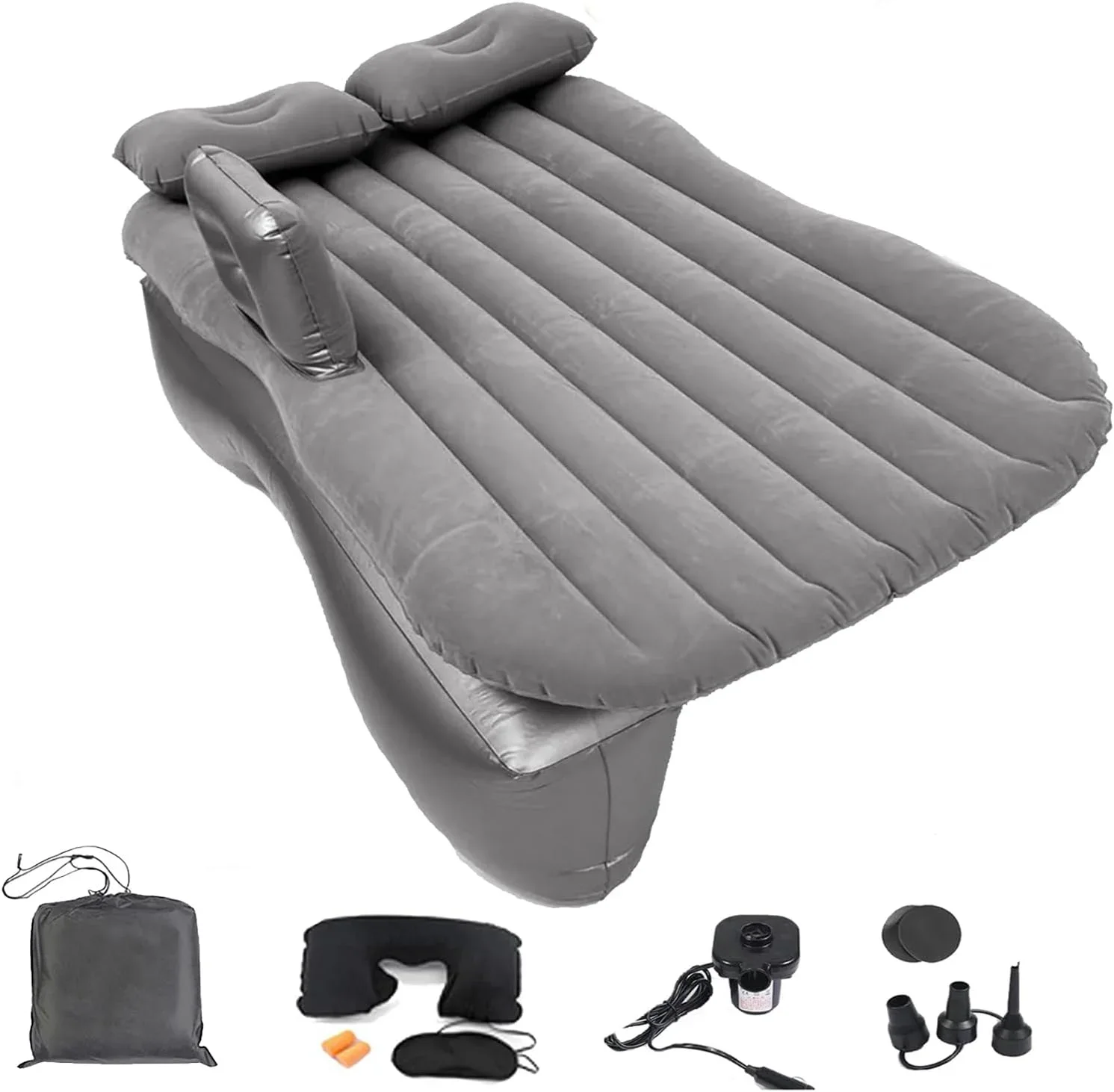

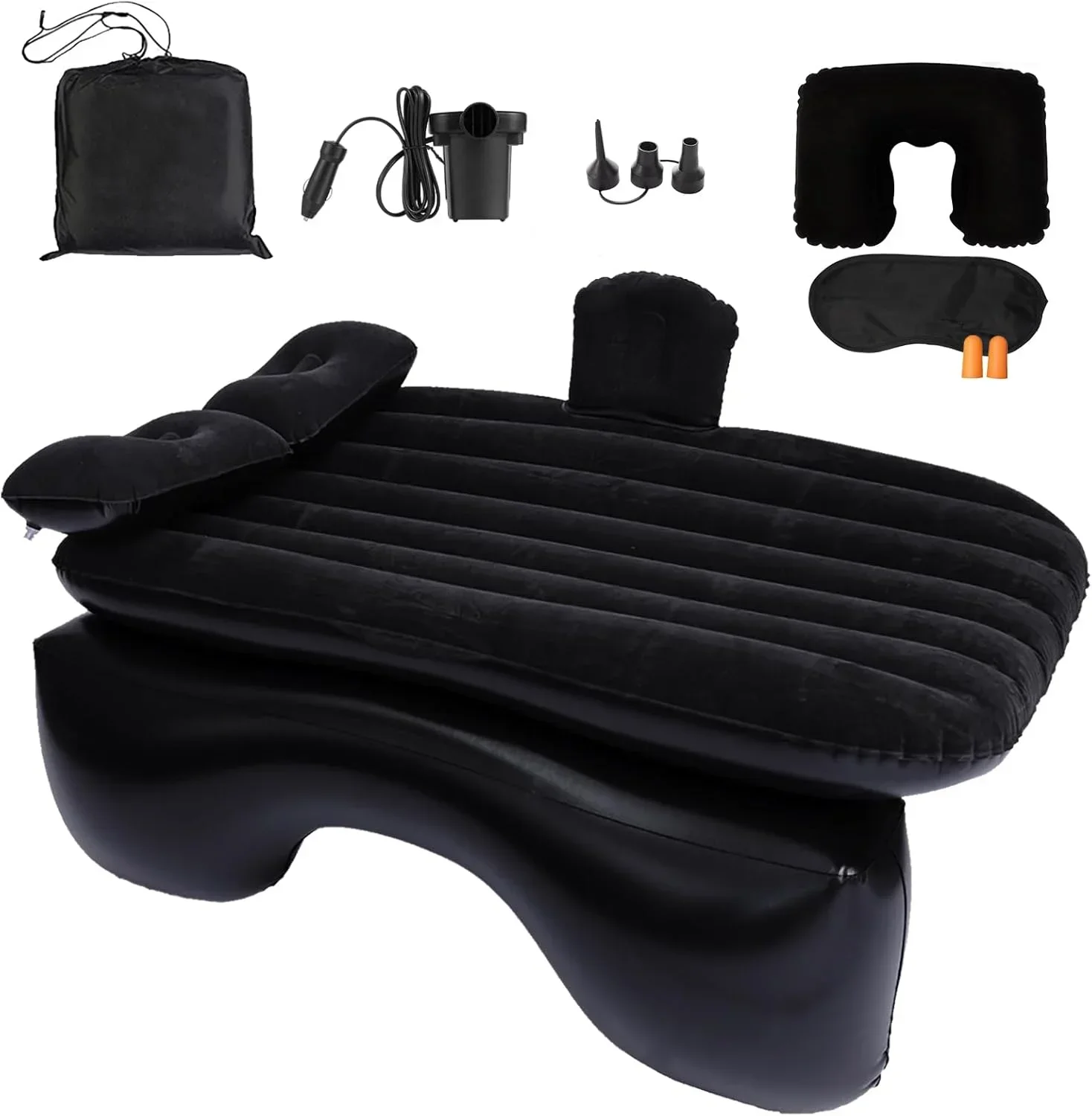

• Bridge it with a pad built for the job. An SUV air mattress like the Onirii SUV air mattress is shaped to span exactly this seatback step so the sleeping surface sits flat.

Ten minutes with the floorboard and a fill turns the RAV4's honest ~64 flat inches into a genuine 71-inch bed. That single adjustment is the difference most people never make - and it explains the split you see in owner threads, where one camper calls the RAV4 floor 'basically flat' and another calls it a ramp. They're both right; they just set the board differently. Check yours before you diagnose anything else, because every other fix on this page assumes the board is up.

The RAV4's dimensions barely change across the lineup, but its power options change your entire overnight setup, so match your build to your trim. Only the RAV4 Prime plug-in hybrid offers a real household outlet: a 120-volt, 1500-watt AC outlet in the cargo area, and even then it's optional and limited to the Prime XSE with the Weather and Premium package, per Toyota's newsroom.

What each version gives an overnight sleeper:

• RAV4 Prime XSE (so equipped): the 1500-watt outlet runs a real fan, lights, and device charging off the traction battery - the best of the family for camping power.
• Adventure and TRD Off-Road: a smaller 120-volt, 100-watt accessory outlet in the cargo bay, per EduAutos - fine for charging small devices, not for running much.
• Everything else: 12-volt sockets only, which run just while accessory power is on - so bring a portable power station and keep the starting battery sacred.

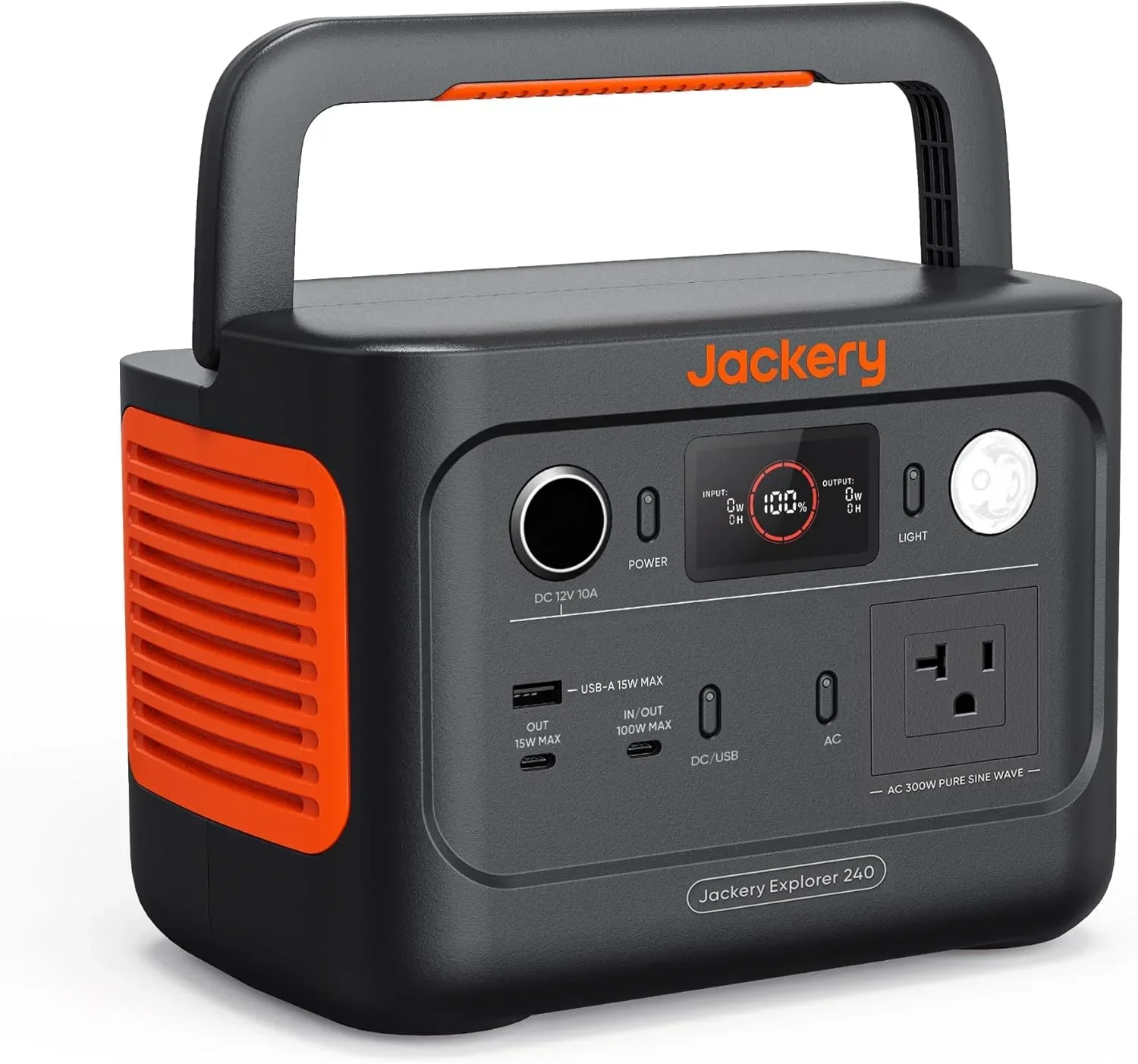

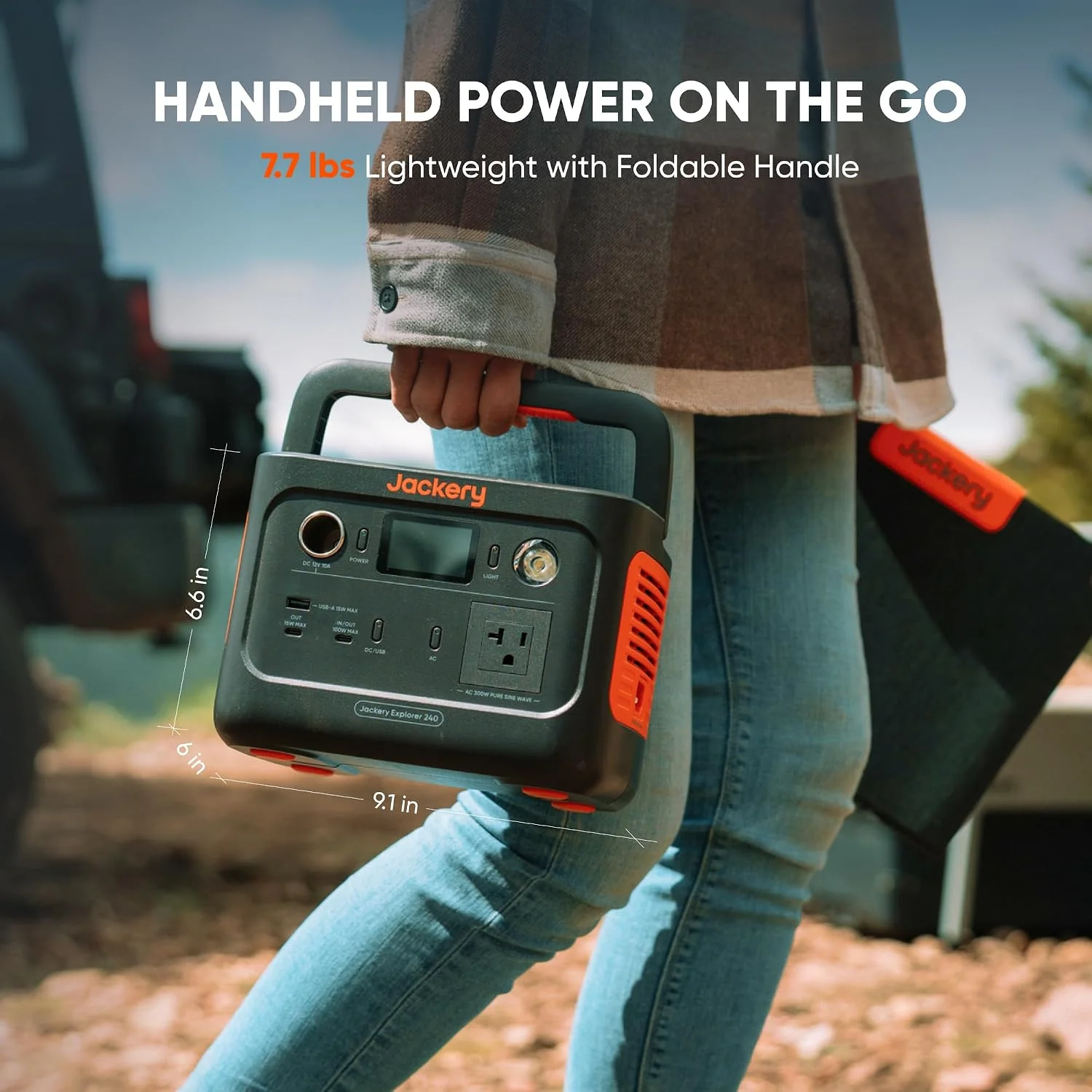

If you don't have a Prime, treat the RAV4 as giving you no overnight power and plan around a Jackery Explorer 240 v2 power station instead. It's the reliable answer at any trim - and honestly, even Prime owners end up carrying one, because the station goes to the picnic table and the tent site while the vehicle's outlet stays bolted to the cargo bay. Match the station's capacity to a fan, a light, and two phone charges and you've covered a real night with margin; anything bigger is weight you'll carry and rarely use.

Numbers only mean something in context, so here's where the RAV4 lands against the compacts and wagons people cross-shop for sleeping. On raw cargo volume its 69.8 cubic feet is right in the compact-SUV mix. On sleeping length, though, it trails the wagon that owns this niche: the Subaru Outback lays out a genuinely flatter floor around 75 inches long, per Subaru's own spec sheet, versus the RAV4's ~64 truly-flat inches.

The honest positioning:

• Versus the Outback: the RAV4 is shorter and steps more at the seatbacks; the Outback lies flatter with less work. See our Outback cargo dimensions breakdown for the direct numbers.
• Versus the CR-V and Forester: the RAV4 is comparable on volume and width - all three are one-person beds that squeeze two. Our RAV4 vs CR-V for car camping matchup runs that head-to-head in full.
• Versus bigger SUVs: a mid-size or body-on-frame rig wins outright on flat length and two-person width, at the cost of fuel and size.

The RAV4's case isn't that it's the biggest; it's that it's a reliable, efficient, capable compact that sleeps one person well once you respect the seatback step.

Specs are only useful if they become a setup, so here's the checklist I run turning the RAV4's dimensions into a flat, comfortable bed. Do these in order and the numbers above stop being trivia and start being a good night's sleep.

• Measure your own flat length and compare to the ~64 flat inches; if you're over 5 foot 4, plan to bridge the seatback slope.
• Raise the adjustable floorboard to cut the step before you add fill.
• Fill and bridge with foam or a shaped SUV mattress so the surface is level from tailgate to seatbacks.
• Check sitting height with your pad in place - subtract pad thickness from the 36.6-inch max and make sure you can still sit up.
• Sort power to your trim - Prime outlet if you have it, portable station if you don't.
• Crack two windows about 1 inch on opposite sides for cross-flow to beat condensation on the RAV4's big glass.
• Square away the where and the whether - a level, legal spot matters as much as a level floor; our guide to sleeping in your car safely and legally covers the rules side before your first night.

One sequencing tip that saves rework: do the floorboard and fill steps BEFORE you shop for a mattress, not after. The gap you measure with the floorboard raised is several inches shallower than the one you'd measure cold, and it changes which pad thickness you actually need. For the full build with mattress sizing and climate control, our sleeping in a RAV4 guide walks the whole setup.

Every number on this page describes the current-generation RAV4, and published figures are averages across trims - your specific year, trim, and cargo accessories can shift the real inches. Before you order a mattress or cut plywood for a platform, spend fifteen minutes with a tape measure and record four numbers off your own vehicle. As a platform builder, I won't cut a single board without them.

• Flat length: seats folded, floorboard in the high position, measure from the tailgate opening to where the floor starts sloping up the seatbacks - that's your true flat zone, then measure to the front seatbacks for the total.
• Narrow width: between the wheel-well arches at their closest point. This is your mattress-width ceiling, not the brochure's widest figure.
• Step height: from the cargo floor up to the folded seatback surface, floorboard high and low. This tells you exactly how much fill you need to level the bed.
• Sitting height: floor to headliner at the spot where you'll actually sit up, minus your pad's inflated thickness.

Write the four numbers on a card and shop mattresses against them, not against the model name. Ten dollars of tape measure prevents a hundred dollars of returned gear - and it settles every forum argument about 'the real' RAV4 dimensions, because yours are the only ones your bed will ever lie on.

The Toyota RAV4's cargo dimensions make it one of the better compact SUVs to sleep in - as long as you read the numbers honestly. You get about 69.8 cubic feet folded, a cargo floor near 71 inches long up the sloped seatbacks with roughly 64 truly flat, 39.4 to 59 inches of width, and 34.5 to 36.6 inches of height, all sourced from iSeeCars, Andy Mohr Toyota, RAV4 Hub, and Toyota of Anaheim. Those are one-person-bed numbers with a known fix for the length.

The RAV4 sleeps one person flat and well once you raise the floorboard and bridge the seatback slope. For two adults, the 39.4-inch pinch between the wheel wells is the wall the numbers won't move - plan narrow, or size up to a wider vehicle.

Measure twice, level the floor once, match your power to your trim, and the RAV4 turns its honest dimensions into a genuinely comfortable bed. The vehicle was never the problem; the un-leveled seatback step was, and now you know exactly how to beat it. And if the numbers on this page ruled the RAV4 out for you - too short flat, too narrow for two - that's the page doing its job: better to lose the RAV4 at the tape measure than at a trailhead at midnight, and the same four measurements will sort the next candidate in fifteen minutes flat.
