Ford Maverick Truck Bed Dimensions for Camping (Honest Numbers)

The cheap answer everyone assumes is no - the Ford Maverick has a four-and-a-half-foot bed, the smallest here, and 54.4 inches of floor won't fit an adult flat. But that's reading the wrong number, and it's the false economy of judging the Maverick by its floor length. Ford built the FLEXBED with a multi-position tailgate and molded lumber slots specifically so you can extend and build on it, and once you use them the Maverick sleeps a lot bigger than 54.4 inches suggests - for the price of two boards.

I fix and build my own stuff to skip shop rates, so the Maverick is my kind of truck: it hands you the features to solve its own size problem cheaply. This page gives you the real bed numbers - length, the 42.6 inches between the wheel wells, depth - then shows how the mid-position tailgate creates a roughly 77-inch flat surface, how the lumber slots build a near-free platform, what the 400-watt outlet actually delivers, and where the little Maverick genuinely beats a bigger, pricier truck for a camper's money.

One more thing before the numbers: the money argument is the whole point. A longer bed costs you at the dealer, at the pump every week, and in a driveway you have to fit it into. I won't pay for length when the Maverick lets me add it from a couple of boards instead, and it's the rare truck that makes that trade without costing you a real night's sleep. Read the honest floor figures first, then watch how the gate and those lumber slots claw back every inch the spec sheet says you're short.

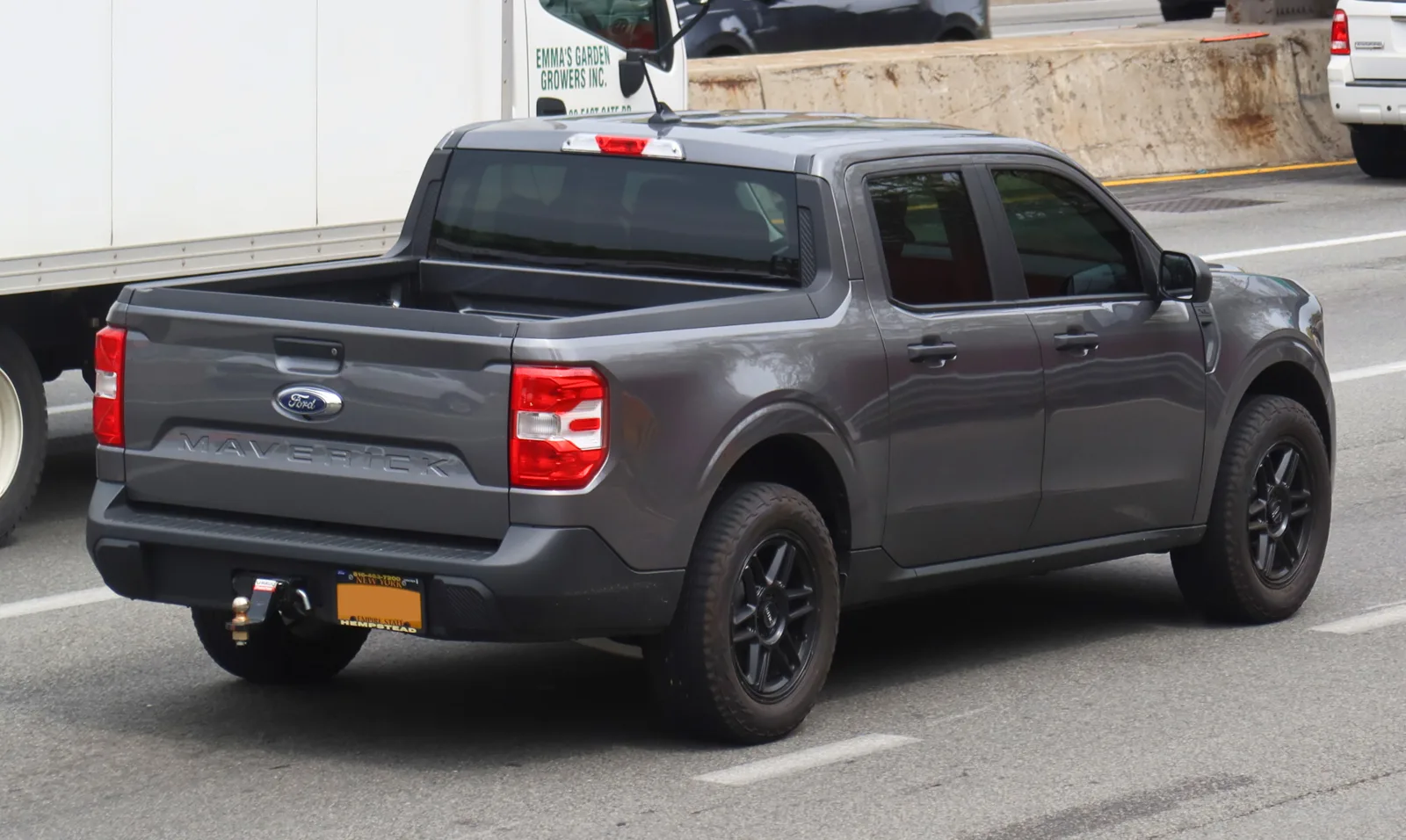

Start with the raw numbers before the clever ones. Ford's tech specs put the Maverick FLEXBED floor at 54.4 inches long, 42.6 inches between the wheel wells, 53.3 inches at its widest, and 20.3 inches deep. That's the smallest bed in the midsize/compact truck conversation.

• 54.4 inches of floor: four and a half feet - a bed for a child, or a footwell for an adult who sleeps out the tailgate.
• 42.6 inches between the wells: the narrowest floor here, but still wide enough for a standard twin pad (about 38 inches).
• 20.3 inches deep: shallower than a midsize truck, but enough wall to break the wind.

Taken flat, those numbers say 'not a bed.' But Ford knows the bed is short, which is exactly why it engineered the tailgate and the slots to extend it - and that's where the value math flips. Don't stop reading at 54.4 inches; the Maverick's whole trick is what it does past the floor.

One figure people skip is the 53.3-inch overall width against the 42.6 inches down on the floor - that gap of nearly eleven inches lives up at wheel-well height, and it's exactly the room a raised deck hands back. Down low you're boxed in by the wheel housings; up top the bed opens out to the full 53.3. So the floor figures aren't a ceiling on how wide you can sleep - they're a starting line, and the wells are the step up to it. Hold that thought, because the platform turns that eleven-inch gap into a wider bed for nothing.

Here's the feature that turns the Maverick from 'too small' into 'clever small.' The FLEXBED tailgate locks at a mid-position - halfway down, level with the tops of the wheel wells - creating one continuous flat plane from the cab wall out to the tailgate edge. Owners measure roughly 77 inches of flat surface in that configuration. That's over six feet, from a four-and-a-half-foot bed.

The Maverick's real sleeping length isn't the 54.4-inch floor - it's the ~77 inches you get with the tailgate at its mid-detent, level with the wheel wells. That free feature is the whole reason a small truck sleeps an adult.

The mid-position is rated to hold real weight (Ford's how-to content cites roughly 400 pounds at that detent), so it carries a sleeper plus a platform, not just cargo. This is the number that matters for camping, and it's the one the spec sheet buries under the 54.4-inch floor. Use the tailgate, and the Maverick's size stops being the problem it looks like.

Here's the arithmetic so 77 isn't a mystery number. The floor runs 54.4 inches to a closed gate. Drop that gate to its mid-detent and its inner face - another twenty-odd inches of flat panel - settles level with the wheel-well tops, extending the plane instead of dropping straight down the way a fully-open gate does. Floor plus that level panel is where owners tape out about 77 inches. Ford never publishes a tailgate-fully-down bed length, so don't trust a spec-sheet figure there; the mid-detent is the position that's actually been measured, and it's the one that sleeps you.

Fair skeptic's question, because a ~77-inch surface only helps if it's genuinely flat and supported. Here's the honest answer: the mid-position creates a level plane between the wheel-well tops and the tailgate, but the space between the wells is lower than that plane, so you need to bridge it. That's what the platform is for - and it's cheap.

• Bridge the well gap: a simple deck across the wheel-well tops fills the low center and gives you one flat 77-inch surface at well-top height.
• Support the tailgate end: the mid-detent holds the weight, but your platform should carry across to it so nothing sags at the feet.
• Then pad it: a rigid deck needs a real pad on top for comfort and warmth.

So yes - with a well-top platform and the tailgate at mid-position, an adult sleeps flat in a Maverick. Without the platform, you're lying partly in the low well gap, which is the mistake that makes people say the Maverick's too small. The feature works; you just have to build the cheap deck that completes it.

An honesty note on the foot end: the mid-detent carries roughly 400 pounds per Ford's how-to page, plenty for a sleeper and a light deck, but that rating assumes the gate held level, not bounced or slammed. Build so the platform rests across the gate rather than dangling weight off its tip, keep the heavy gear back over the bed floor, and the feet stay solid till morning. I've flagged the same thing on other damped tailgates - the detent is strong, and you respect it by spreading the load, not by testing where it lets go.

This is the part that makes the Maverick the budget builder's truck. The FLEXBED has molded slots in the sidewalls sized to accept dimensional lumber - 2x4s and 2x6s - so you can drop boards in to create dividers or, for our purposes, the supports for a raised sleeping deck. No brackets, no drilling, no fabrication.

• The cheap platform: 2x6s in the slots as cross supports at wheel-well height, a sheet of plywood on top, and you have a flat deck over the wells for the cost of lumber.
• Storage underneath: the deck leaves the floor space below for gear - a real bonus in a small bed.
• Pad and insulate: a Klymit Static V insulated pad tops the plywood and, because it's insulated, stops the cold radiating up through a metal bed on a clear night.

This is where the Maverick beats trucks that cost thousands more for camping: they make you buy or fabricate a platform, while the Maverick hands you the mounting points for the price of two boards. For a budget builder, that's the whole value case in one feature.

Here's the whole build, start to finish, at no shop rate. Cut two 2x6s to sit snug across the bed in the molded slots up at the wheel-well tops - those are your cross supports. Lay a half-sheet of plywood, trimmed to the roughly 53-inch span, across them; two screws into each 2x6 stop it sliding. That one sheet spans the low well gap and hands you a single flat surface out to the mid-position gate. The whole bill is two boards and a plywood offcut, and a fabricator would charge you ten times that for a bolt-in deck that does less.

The Maverick can be had with a 110-volt bed outlet, and here's the honest wattage picture, because the marketing makes it sound bigger than it camps. Ford rates the outlet at 400 watts - fine for charging and small loads - but owners report that 400-watt inverter is shared between the cab and bed outlets, so it's 400 watts total, not per outlet.

• What 400 watts runs: device charging, a laptop, a fan, lights - the useful small stuff.
• The catch: it's shared with the cab outlet and tied to upper trims and packages, so confirm your specific truck has the bed outlet before counting on it.
• Not an appliance outlet: at a shared 400 watts, skip the heating-element gear - that's a power-station job.

The value read: the Maverick's outlet is a nice-to-have for charging, not the Tacoma i-FORCE MAX's 2400-watt worksite. For real camp power on any Maverick, a portable station is cheaper than chasing the top-trim outlet package and does more - the budget move, again.

Dig into the trim matrix and the 400-watt story gets pettier still. The bed plug isn't standard - it rides on upper trims and option packages, and the same 400-watt inverter also feeds the cab socket, so a phone charging up front already eats into what's left out back. Owner-built trim breakdowns on the forums are where the real which-build-has-it map lives, because Ford's own sheets bury it. Read that as a caution, not a selling point: don't buy up a trim for 400 shared watts. A cheap power station gives you more usable juice and rides along in any Maverick.

A small open bed needs weather management, and the Maverick's shallower 20.3-inch walls give you a bit less shelter than a deep midsize bed - so plan for it cheaply.

• Cover the top: a Rightline Gear tailgate canopy clamps over the bed to keep rain and dew off without the cost of a full topper - the budget shelter.
• Insulate the floor: the metal bed pulls heat out of you; the insulated pad is doing double duty as your cold barrier.
• Block the wind: the shallower walls help less, so a cover or a bed tent matters more here than on a deep-bed truck.

The trade-off ladder for a tight budget: canopy first, insulated pad always, bed tent if you camp out often in weather. The Maverick asks a little more of your weather setup than a deep midsize bed, but the fixes are cheap and the pad you already need for warmth does most of the work.

The cheap weather kit, ranked by what each dollar buys: a clamp-on canopy sheds dew and light rain for a sliver of a topper's price; the insulated pad that keeps you warm doubles as the ground barrier, so it isn't a second buy; and a windbreak - a cover, a tarp wall, a bed tent - earns its keep more here because 20.3 inches of sidewall stops less wind than a deep midsize bed. One caveat that rides along with any closed shelter: seal the bed up tight and you swap cold for condensation, so leave yourself a crack to breathe. None of it costs much, and the pad carries most of the load.

Here's the value verdict a budget builder cares about. The Maverick is the cheapest truck in this group to buy and to run - it's a fuel-sipping compact - and for camping it punches far above its bed size because Ford engineered the extension and the platform mounts in from the factory.

• Worth it: the FLEXBED itself - the mid-tailgate and lumber slots turn a small bed into a ~77-inch sleeper for the price of lumber.
• Worth it: an insulated pad and a canopy - the two cheap parts that complete the setup.
• Not worth it: chasing the top-trim 400-watt outlet package for camp power when a power station is cheaper and does more.

Against a Tacoma or a Gladiator, the Maverick gives up bed size and the big hybrid inverter, but it wins outright on price, fuel, and build-it-yourself value. For a camper who won't overspend, that's a genuinely smart truck, not a compromise.

Put real dollars on it. A midsize truck runs thousands more up front, drinks more fuel every week, and still leaves you buying or building a sleeping deck - while the Maverick gifts you the molded slots and a self-extending gate, both at no charge. Sure, you surrender the flat six-foot floor and the big hybrid inverter. But for a camper who sleeps out back a few weekends a season, paying a truck-payment premium for length you can build from two boards is exactly the false economy I won't fall for. This truck spends your money where it sleeps you, and nowhere else.

The Ford Maverick has the smallest bed here on paper - 54.4 inches long, 42.6 between the wheel wells - and the best value for a camper who builds. The FLEXBED's mid-position tailgate creates a roughly 77-inch flat surface, the lumber slots build a platform for the price of two boards, and an insulated pad on top makes a metal bed sleepable. It's the cheapest truck that sleeps an adult flat once you use its features.

Don't judge the Maverick by its 54.4-inch floor. With the tailgate at mid-position and a lumber-slot platform, it's a ~77-inch bed for the price of lumber - the smartest truck-bed value here.

Use the FLEXBED tailgate, build the near-free platform, insulate the floor, and bring your own power, and the little Maverick out-values trucks that cost thousands more to sleep in. The full setup lives in our Ford Maverick camping guide, and our Tacoma vs Maverick matchup weighs it against the bigger midsize option.

If one thing sticks from this page, make it the order of operations: measure the mid-position surface, not the 54.4-inch floor; build the lumber-slot deck before you write the bed off as too small; insulate before you fight the cold; and carry your own watts instead of buying a trim for them. Do that and the smallest bed here quietly out-sleeps pickups priced thousands higher. That's not a runner-up pick - it's the value pick, and it's why the little Maverick earns a budget builder's respect.
