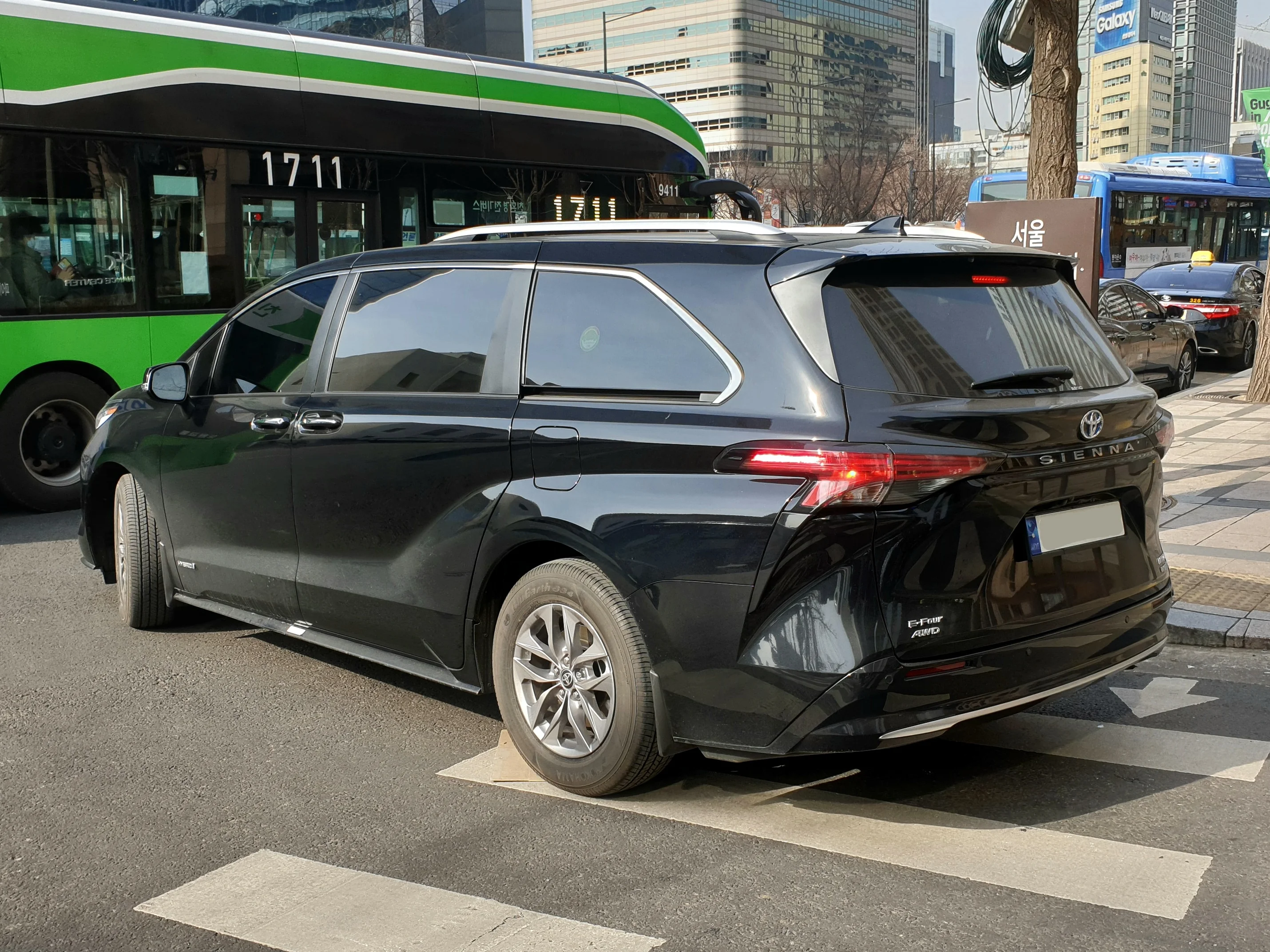

Toyota Sienna Cargo Dimensions for Sleeping: The Real Numbers

The install is where a minivan camping build goes right or wrong, and the 4th-generation Toyota Sienna hands you a specific one to solve before you buy a single piece of gear. The third row is easy - it stows flat into the floor. The catch is the second row: on this Sienna the captain's chairs slide but they do not fold flat and they do not come out, so you can't just clear the floor front-to-back the way you can in some vans. Every good Sienna bed is built around that fact, not in spite of it.

First, get the vehicle straight, because the internet is full of the wrong Sienna. The 4th generation, from 2021 on, is hybrid-only and was fully redesigned - and it dropped the old removable/split second row that earlier Siennas had. So any advice about yanking the middle seats out to make a flat floor is about a different van. This page works from the numbers Toyota actually prints for the current car, explains why there's no flat length in inches to quote, and then does the installer's job: turning a stowing third row and a fixed second row into a level place to sleep, with the class-best 1500-watt outlet spelled out at the end.

Start with what's official, because it's the honest floor for the build. Toyota lists the current Sienna's cargo volume as 33.5 cubic feet behind the third row, 75.2 with the third row stowed, and 101 behind the first row with the second row slid all the way forward. Those are real, published Toyota figures for the 4th-gen car.

• 33.5 cu ft (behind row three): genuinely big for a seats-up number - a minivan advantage - but it's gear space, not a bed.
• 75.2 cu ft (third row stowed): the third row drops into its floor well and you get a long, flat run from the tailgate to the back of the second-row seats. This is where most Sienna sleepers actually lie.
• 101 cu ft (behind row one): reached only by sliding the second row forward, not removing it - so the seats are still there, just pushed up. It's a hauling number more than a sleeping one.

Read those as a build spec: the useful bed number is 75.2, the space behind the stowed third row, because that's flat floor. The jump to 101 buys cargo length up front but leaves the seats in the middle of your bed, which is the whole problem this van sets you. Plan around the 75.2 zone and treat the extra volume as storage, not stretch-out room.

Let me be straight about a gap instead of papering over it: Toyota does not publish a cargo-floor length, width, or height in inches for the Sienna. Plenty of sites will hand you a confident number anyway; most have either lifted it from an older Sienna or estimated it from the volume. I won't, because a made-up inch is exactly what strands a six-footer with their feet against the tailgate.

When a maker publishes volume but not inches, the honest answer is measure your own van, not a borrowed number. A tape measure behind the stowed third row beats a spec-sheet guess every time.

What you can say honestly: with the third row stowed, the Sienna gives a long, flat load floor from the tailgate to the back of the second-row seats, and that run is where a tall sleeper fits diagonally or a shorter one lies straight. What you can't say is an exact flat length, because Toyota hasn't measured it for you and the second-row position changes it. That's why the measure-your-own step below isn't filler - it's the only way to know the Sienna fits your body before you build a platform you can't return.

Every Sienna bed begins with the third row, and this is the part the van does well. The 60/40 third row folds down and back into a deep well in the floor, leaving a genuinely flat surface where the seats were - no platform needed just to level that zone.

What that means for the build:

• Stow it fully and confirm the seatbacks sit flush with the cargo floor - on a well-maintained Sienna they do, which is the van's big advantage over an SUV whose seats fold on top of the floor.
• The well is storage, too: before you stow, remember the space that eats the third row is space you can't also use for gear.
• This flat zone is your bed's foundation - the length you actually sleep on runs from the tailgate forward to wherever the second-row seats stop you.

So the third row hands you a flat floor for free. The work is everything in front of it, where the fixed second row lives - which is the next problem, and the one that separates a good Sienna build from a lumpy one.

Here's the Sienna's defining constraint, and it decides your whole setup: the second-row captain's chairs slide fore-and-aft on long rails but they do not fold flat, and on the 4th-gen car they are not removable. There's no bench option either - captain's chairs only. So you can't clear the middle of the van to make one continuous flat floor front to back.

The Sienna's second row is a fixture, not a fold-away. Slide it as far forward as it goes and you lengthen the flat zone behind it - but the seats themselves stay in the van, and that's the surface you have to plan around.

How installers actually handle it:

• Sleep behind the second row: slide the chairs all the way forward, and build your bed in the long flat zone from the tailgate to the seatbacks. For many people that's enough length on the diagonal.
• Bridge over the chairs: a raised platform built at seat-top height can span forward over the folded-down (not flat) seatbacks to buy full length - more carpentry, but it reclaims the whole van.
• Don't fight it: the one thing that never works is expecting a flat floor where the seats are. Measure the flat zone you do have first, and size the build to it.

This is the Sienna's honest weakness for camping, and pretending otherwise is how people end up with a bed that has a seat back in the middle of it. Solve it on paper before you spend.

Here's the core install, because once you accept the fixed second row, the answer is usually a platform. A low deck turns the Sienna's stepped interior - flat floor behind, seats in the middle - into one usable plane, and gives you storage underneath.

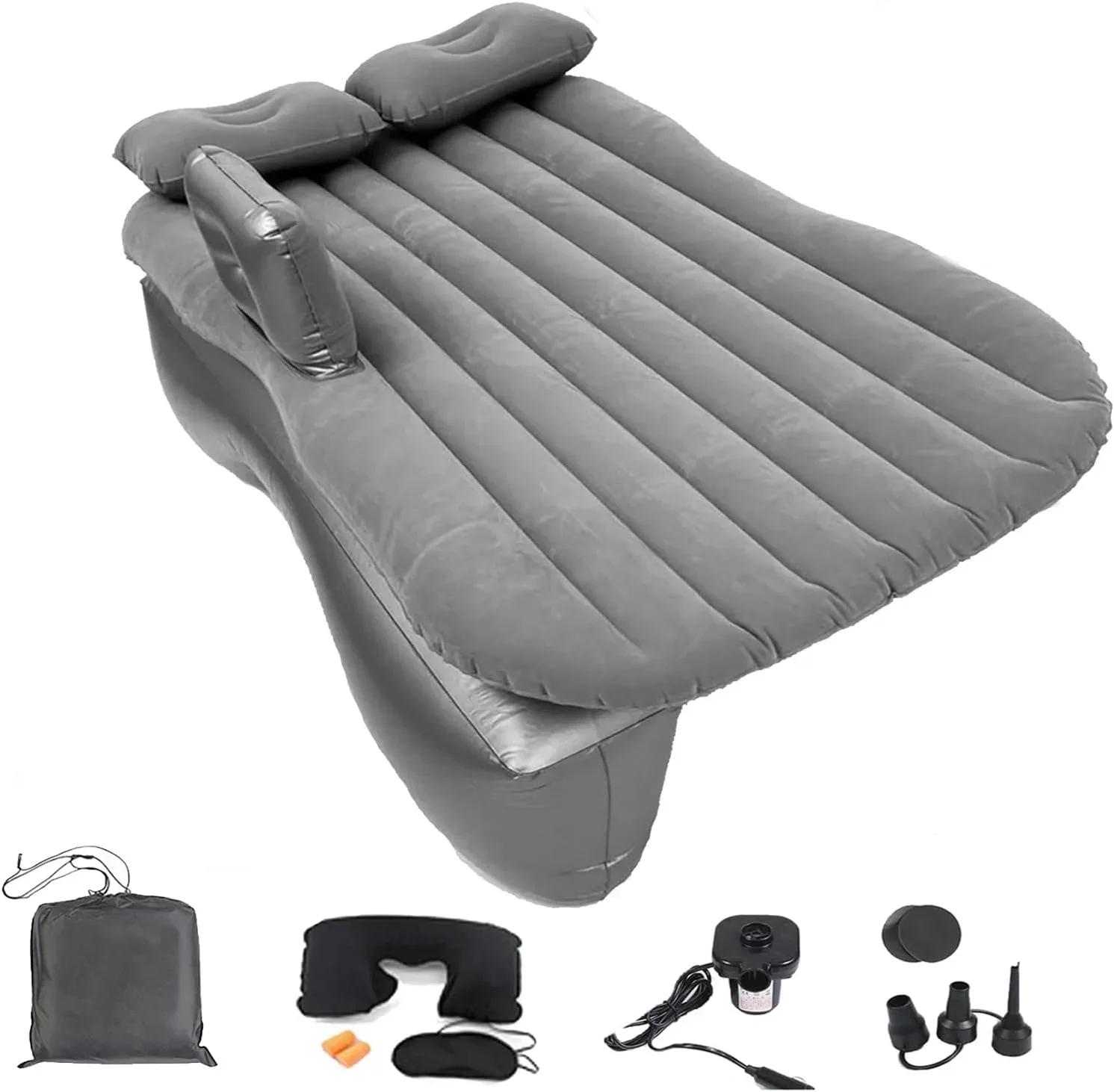

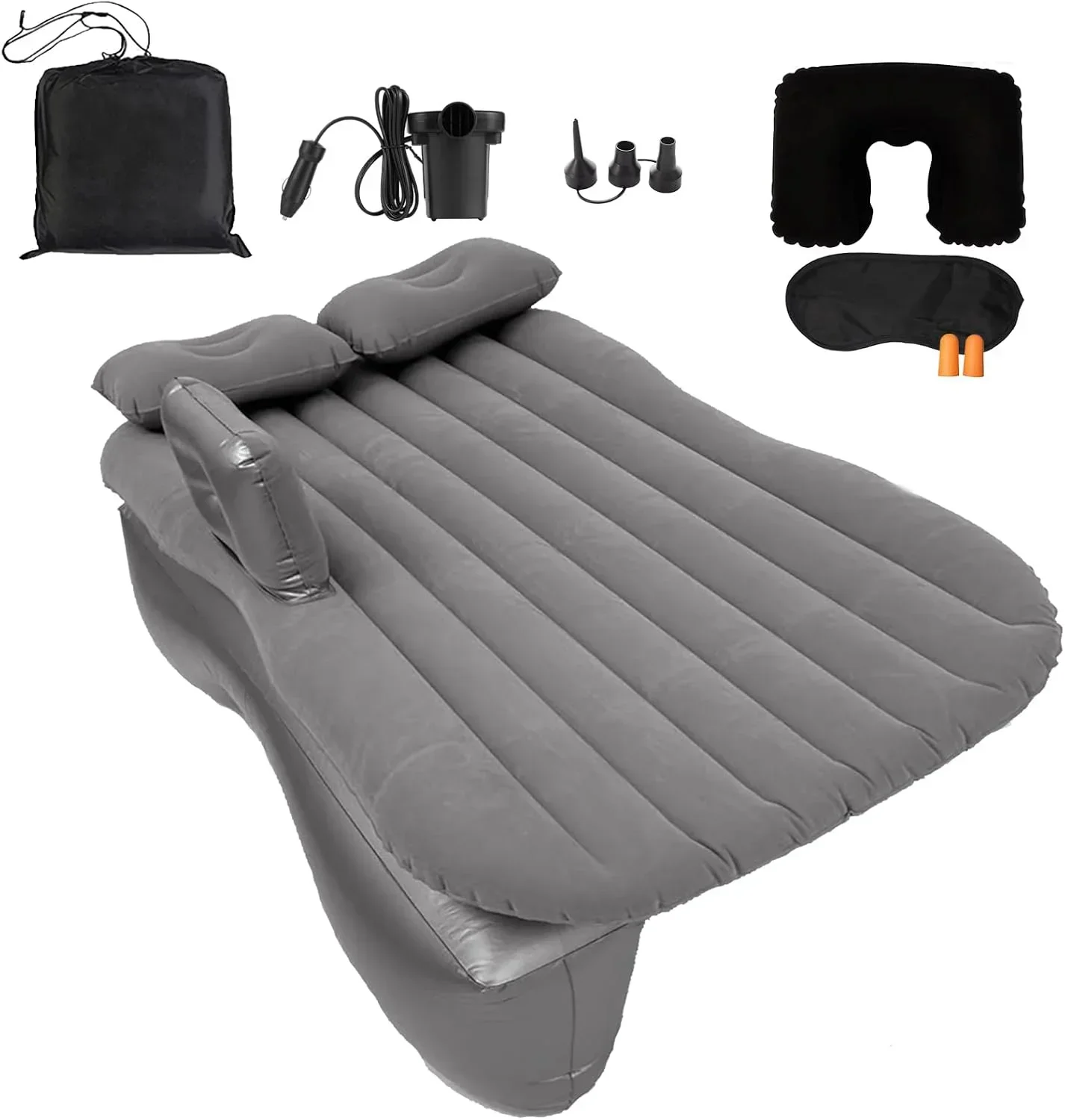

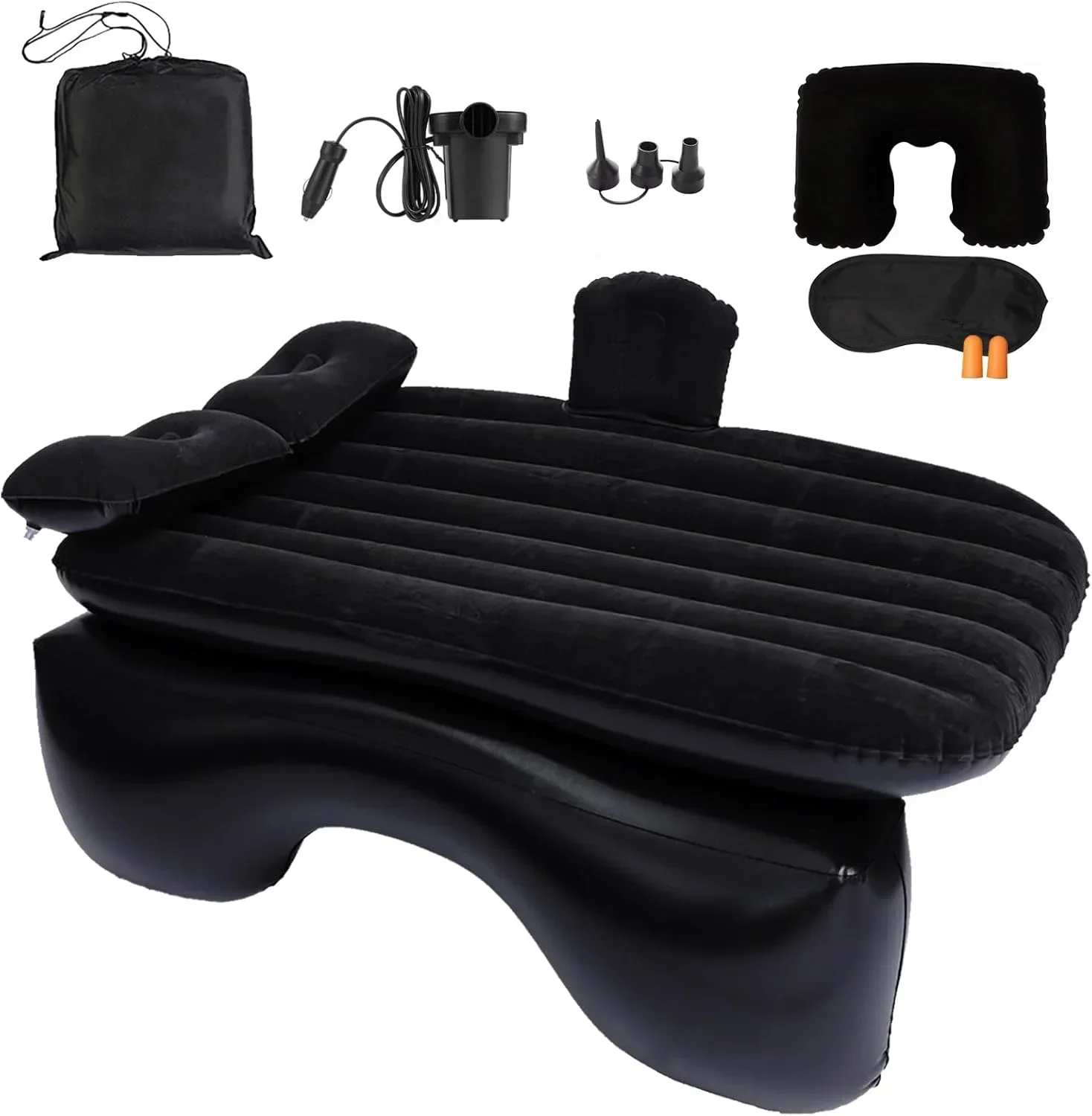

• The simple fix: a bridging pad shaped for a minivan cargo bay. An Onirii SUV air mattress is built to span seatback steps and level a surface in one inflate - the fastest route to a flat Sienna bed behind the stowed third row.
• The durable fix: a low plywood platform on cross supports, sized to your measured flat zone, that turns the floor into a deck with bins beneath. Split the panel where it meets the second-row seats so it drops in without wrestling one long board past the sliding doors.
• Check clearance: a platform raises you toward the roof, so confirm sitting height before you commit to a deck height.

The installer's rule: level first, soften second. Get the surface flat with a platform or a shaped mattress, then add your pad on top - not the other way around. The gap you ignore at the seatback is the lump you feel at 3 a.m.

Width is where the minivan shape pays off, and it decides one sleeper or two. Toyota doesn't publish a cargo width in inches either, but the Sienna is a wide box with near-vertical walls between the sliding-door openings, which is a friendlier shape for two pads side by side than a tapered SUV.

The number to respect isn't the widest point - it's the pinch between the wheel wells and the door tracks. Measure that, because it's the real ceiling on two pads across.

How to work with the width you have:

• Two adults: plausible on the Sienna's flat floor behind the third row - measure the wheel-well pinch, then build the platform up level with the wells to reclaim the full width above them.
• Solo or one-plus-a-kid: easy, with gear alongside.
• Mind the door tracks: the sliding-door rails intrude low on the sides, so keep pads inboard of them.

The van's width is a real advantage - just confirm the pinch rather than trusting the wide-open look of the tailgate. Deck flush with the wheel wells and the narrow spot disappears above that line.

Height decides whether the bay feels like a tent or a coffin, and a raised platform trades floor flatness for sitting height, so check it. Toyota doesn't publish a cargo-area height in inches, but a minivan's tall, boxy roofline gives more usable height than most SUVs - enough to sit up on an elbow and change a shirt seated, as long as the build doesn't eat it.

• Platform height: every inch you raise the floor to level over the seats is an inch off sitting height - keep the deck as low as the design allows.
• Pad thickness: a 3-inch mattress adds comfort and subtracts headroom; run the math for your build.
• Do the awkward business on the tailgate, hatch up, to reserve inside height for lying down.

The Sienna isn't a stand-up camper - nothing this shape is - but its boxy roof keeps more room than a sloped SUV, and a low platform keeps you comfortable seated. Settle the deck height first, then let the pad take what's left.

This is where the Sienna pulls ahead of every other van and most SUVs. Toyota fits a 1500-watt 120-volt household outlet on XLE trims and up (and standard on the Woodland edition), fed by the hybrid system - not the piddly 150-watt device outlets you get elsewhere, but a real one that runs real loads.

• What 1500 watts runs: a 12V fridge, lights and charging, a laptop, even many low-draw kitchen items - it's genuine appliance-grade power for a factory outlet.
• The catch: it flows when the vehicle is on / ready; it isn't a bottomless key-off supply, and running heavy loads leans on the hybrid battery and traction system.
• Trim check: base LE doesn't get it - confirm your Sienna is XLE or higher, or you're planning around an outlet you don't have.

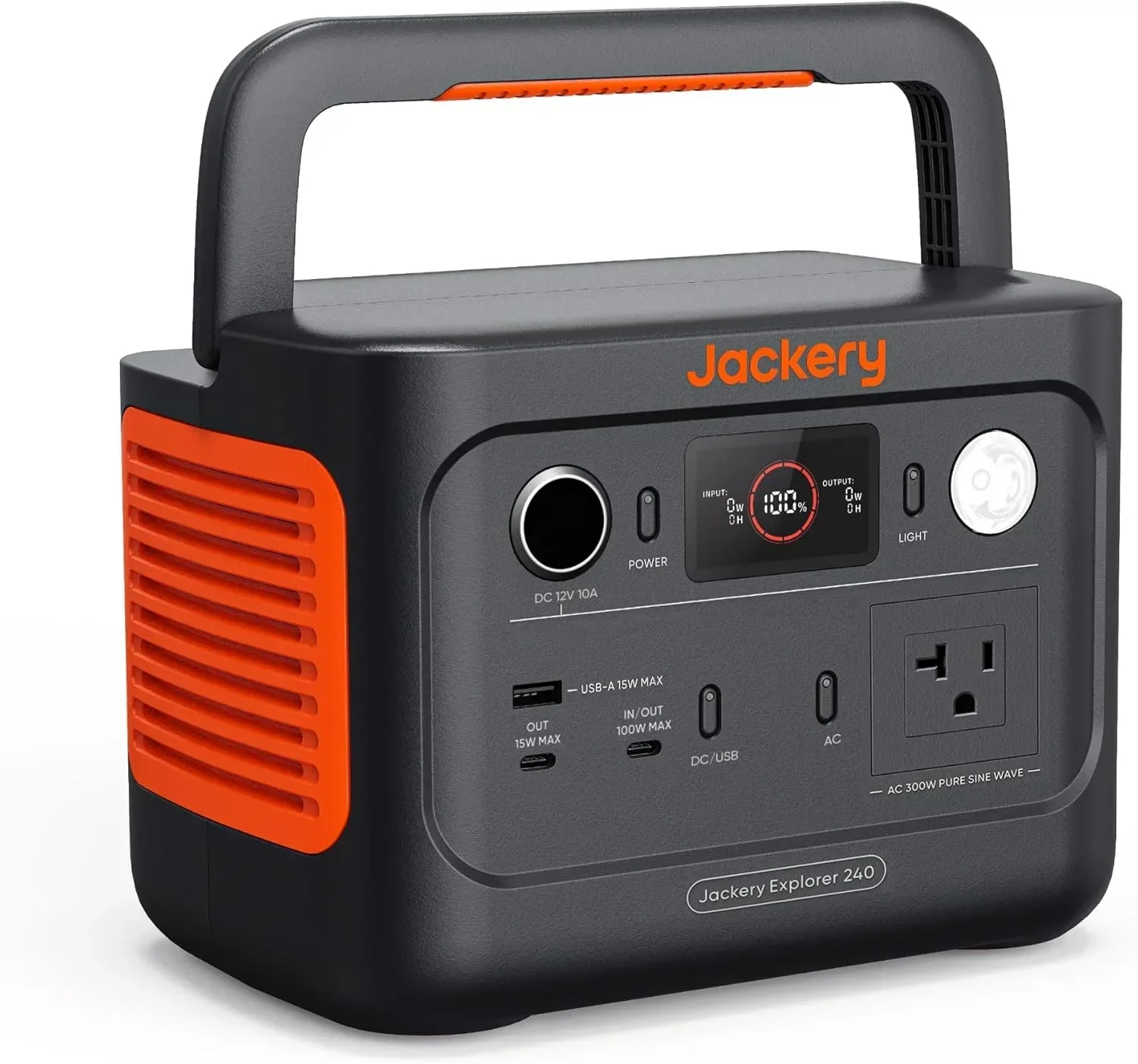

Even with the best outlet in the class, the reliable overnight answer for anything that must run while you sleep is a Jackery Explorer 240 v2 power station: it carries a fan, lights and a night of charging off its own 256 watt-hours and recharges from the 12V socket as you drive - so you keep the 1500-watt outlet for waking hours and don't lean on the vehicle overnight.

Because Toyota gives you volume and not inches, your tape measure is the spec sheet. Before you buy a mattress or cut a board, take these five numbers with the third row stowed and the second row slid full forward - ten minutes that saves a ruined build.

• Flat-zone length: tailgate to the back of the second-row seats - your true straight bed length.
• Full length over the seats: tailgate to the front seats if you plan a bridged platform.
• Wheel-well width: the pinch between the wells - the real two-person ceiling.
• Sitting height: floor to headliner, minus your planned platform and pad.
• Step height: the drop from the second-row seatbacks to the cargo floor - how much a bridge has to span.

Write them on your phone. Those five numbers turn Toyota only publishes cubic feet from a frustration into a five-minute measurement, and they're the difference between a bed that fits and one that fights the fixed second row all night. Take each twice, to the eighth of an inch.

Worth placing the Sienna against its rivals, because the second-row story is where they split. The Sienna's fixed captain's chairs make it the hardest of the mainstream vans to turn into one continuous flat floor - a Pacifica gas model folds its second row into the floor, and an Odyssey lets you remove the middle seats (heavy as they are).

• Where the Sienna wins: the 1500-watt outlet, the hybrid's fuel economy for long trips, and a big flat zone behind the stowed third row.
• Where it loses: the flat-floor build - you work around the second row, you don't clear it.
• Who it suits: the solo or two-person sleeper happy in the rear flat zone, who values the outlet and the mileage over a front-to-back platform.

None of that rules the Sienna out - it just tells you what build you're signing up for. If a full-length flat floor without carpentry is the priority, cross-shop the Pacifica; if the outlet and the road-trip range matter more, the Sienna earns its keep.

The 4th-gen Toyota Sienna is a capable minivan sleeper with one clear asterisk: the second-row captain's chairs don't fold flat and don't come out, so your bed lives behind the stowed third row or on a platform bridged over the seats. Toyota gives you 33.5, 75.2 and 101 cubic feet but no flat length in inches, so the fit is something you confirm with a tape, not a spec sheet.

Stow the third row, build in the flat zone behind it or bridge over the fixed second row, measure your own length and wheel-well width, and the Sienna sleeps one comfortably and two with a platform - with the best factory outlet in the segment on top.

Buy it for the 1500-watt outlet and the hybrid range, plan the bed around the fixed second row rather than fighting it, and bring your own overnight power. The full setup lives in our Toyota Sienna camping guide, and the Sienna vs Odyssey comparison weighs it against the removable-seat rival.
