Honda Pilot Towing Capacity & Specs (2026): The Real Numbers

The Honda Pilot is one of the most popular three-row family SUVs, and a common question before buying one — especially for families eyeing a camper or a boat — is the simplest: what can it actually tow? The honest answer depends mostly on drivetrain. A properly equipped all-wheel-drive Pilot tows up to 5,000 pounds; the front-wheel-drive version is rated around 3,500 pounds.

This guide lays out the real numbers and, just as importantly, the parts of the story the headline rating hides — payload, tongue weight, the AWD-versus-FWD split, and the gear you genuinely need to reach the rating safely. The decision isn't 'can the Pilot tow my trailer'; it's 'can MY Pilot — this drivetrain, with this family aboard — tow it within payload and with the right equipment.'

I leaned on Honda's published specs, Car and Driver's testing, and the real-world towing discussions in the Pilot owner forums — where owners separate the brochure number from what the truck feels like with a loaded trailer on a grade. Where the spec is best-case and where the practical limit is, I say which.

Four numbers decide whether the Pilot tows your trailer safely:

• Drivetrain: AWD vs FWD. AWD with the tow package tows 5,000 lb; FWD tows around 3,500 lb. This is the single biggest factor — buy AWD if towing matters.
• The tow package and transmission cooler. Reaching the full 5,000 lb generally requires the factory/dealer tow package, which adds the cooling to handle towing heat — confirm yours has it.
• Payload, not just tow rating. A full three-row family plus the trailer's tongue weight can exceed payload before you hit the tow limit — both numbers bind.
• Tongue weight and gear. Tongue weight is usually 10-15% of trailer weight; near the limit you want a brake controller and a weight-distribution hitch to keep it stable.

The temptation is to read only the 5,000 lb headline, but that's the best-case AWD-with-tow-package number, and your real ceiling is often payload once the family and gear are aboard. Weigh drivetrain, payload and the towing gear against the trailer you actually want to pull, because a number on a brochure isn't a safe rig on a mountain grade.

A practical way to do the payload math: find your Pilot's payload number on the door-jamb sticker (it's specific to your exact truck, not the brochure), then subtract the weight of every passenger, the dog, the cooler and the camping gear you'll carry inside. What's left is how much tongue weight you can put on the hitch — and a 5,000 lb travel trailer's tongue weight alone can be 500 to 750 pounds.

Run that subtraction with a full family aboard and you'll often discover the Pilot runs out of payload well before it runs out of tow rating. That's not a flaw unique to the Pilot; it's true of nearly every three-row family SUV, and it's the single most overlooked number in towing. Doing the arithmetic before you buy the trailer saves you from a rig that's technically under the tow limit but dangerously over its payload.

Reaching the Pilot's rating safely is as much about equipment as the truck. Start with the hitch: a CURT Class III Trailer Hitch sized to the Pilot gives you a proper 2-inch receiver rated for towing near the 5,000 lb capacity, the foundation everything else bolts to.

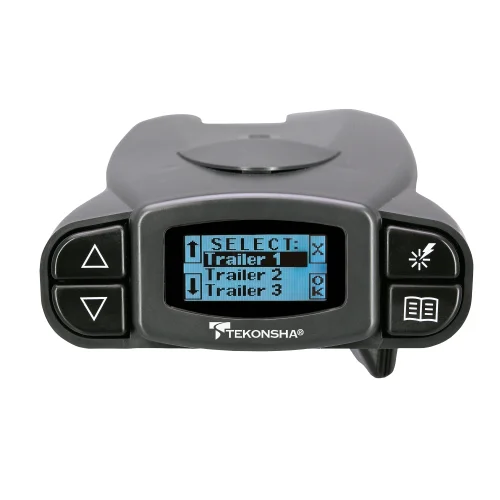

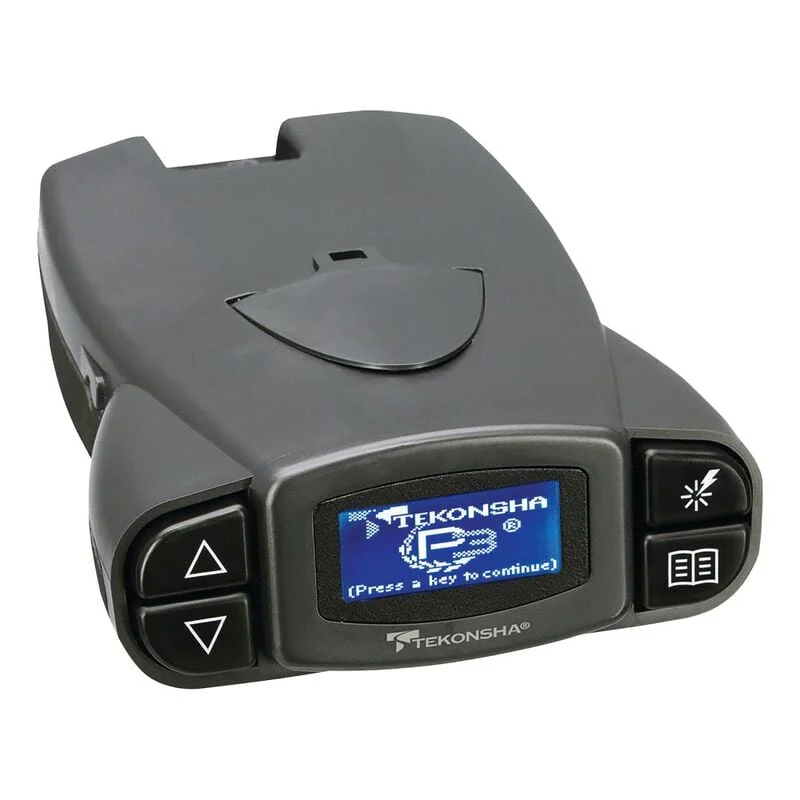

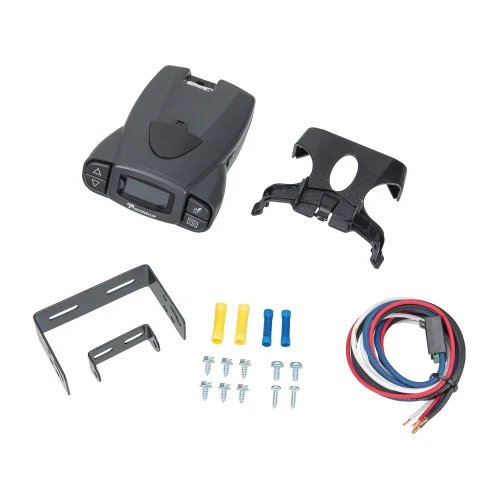

For anything heavy, a Tekonsha Prodigy P3 Brake Controller is the piece owners most often say they wouldn't tow without — a proportional controller that applies the trailer's own brakes in sync with yours, dramatically shortening stopping distance and meeting the legal requirement for braked trailers in many states.

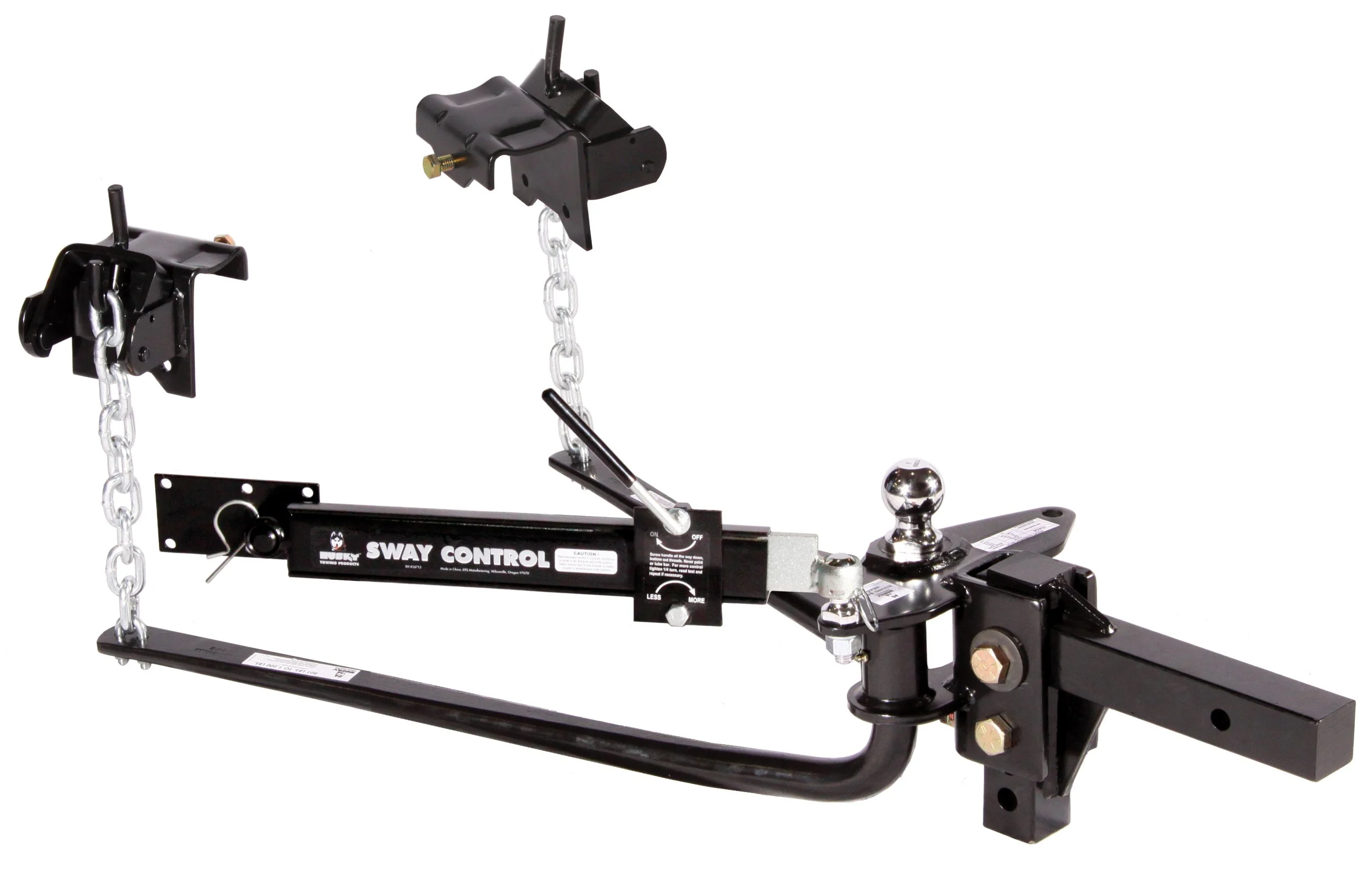

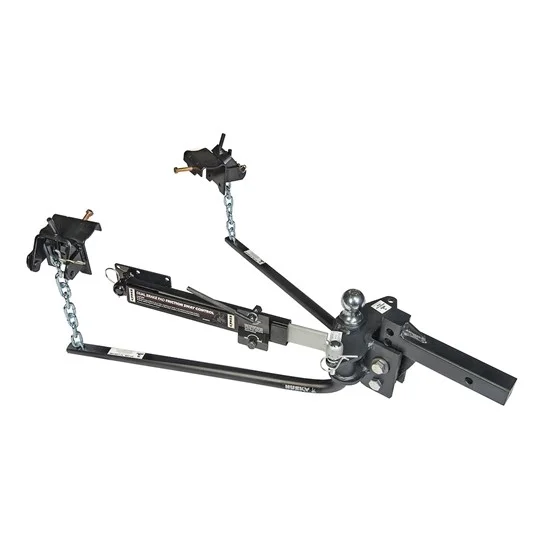

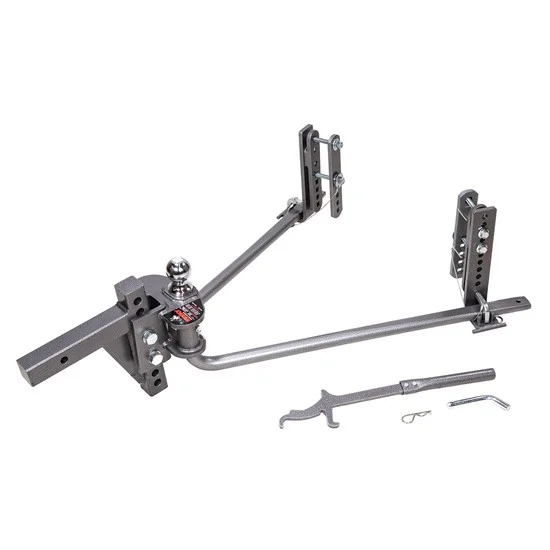

When you're towing near the Pilot's max, a Husky Towing Weight Distribution Hitch levels the rig and restores the steering and braking feel that a heavy tongue weight robs — it's what turns a Pilot that's squatting and wandering with a big trailer back into a stable, confident tow vehicle.

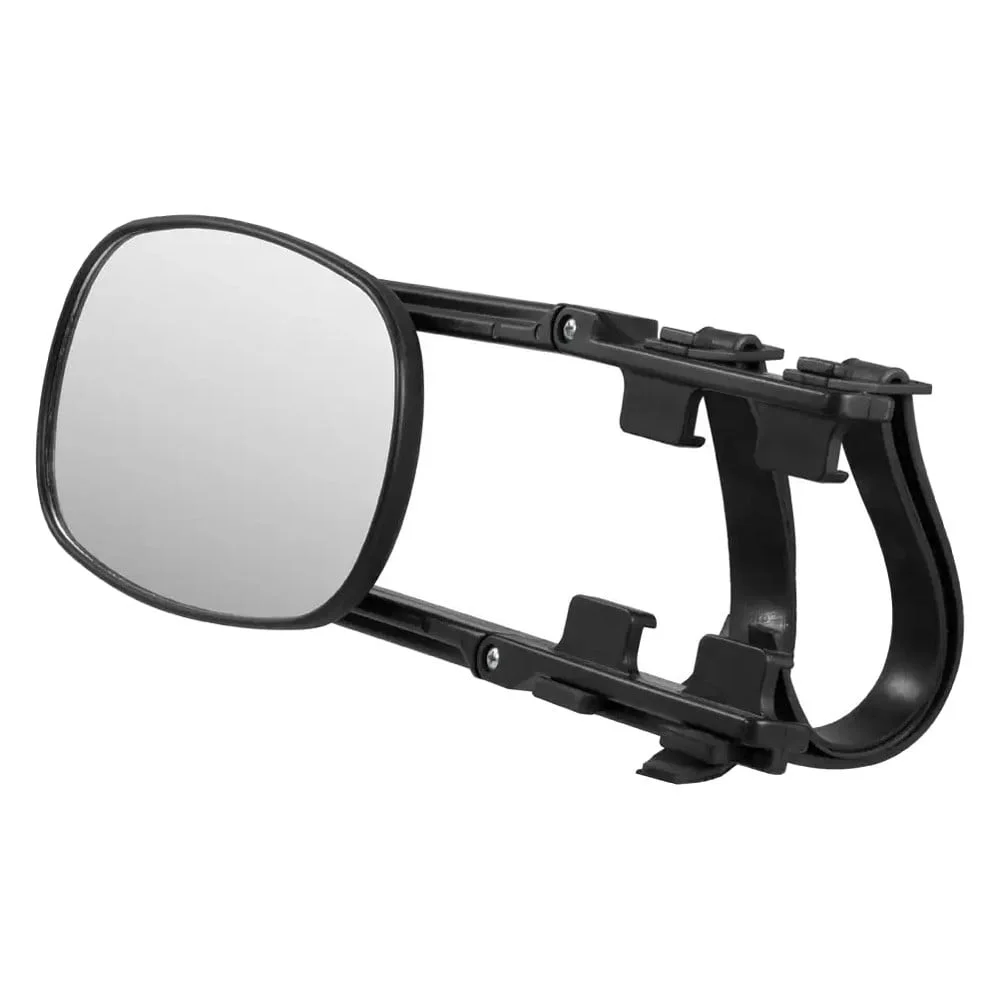

And don't skip visibility: Honda Pilot Tow Mirror Extensions extend your sightline past a wide trailer, which is both a safety necessity and a legal requirement in many places when the trailer is wider than the vehicle.

A word on how these work together, because it's the difference between a safe tow and a scary one: the hitch carries the load, the weight-distribution bars spread the tongue weight forward onto the front axle so the Pilot stays level and steers properly, the brake controller lets the trailer help stop the combined weight, and the mirrors let you see what's behind a wide load. Near 5,000 lb, all four matter — skipping any one is where towing goes wrong.

For anyone buying a Pilot with towing in mind, the real decision is made at purchase: all-wheel drive versus front-wheel drive. The AWD Pilot with the tow package tows up to 5,000 lb — enough for a small-to-mid travel trailer, a couple of jet skis, a utility trailer or a modest boat — and the drivetrain plus added cooling handle the heat of towing on grades.

The FWD Pilot is rated around 3,500 lb, which covers a small utility trailer, a pop-up camper or a personal watercraft, but leaves no margin for a real travel trailer. If you might ever tow something substantial, the AWD's extra 1,500 lb of capacity is the difference between comfortable and marginal.

Put bluntly: if towing is on your list at all, buy the AWD Pilot with the factory tow package. You can't add the capacity later — it's baked into the drivetrain and cooling — so the few thousand dollars at purchase buys you 5,000 lb of confident towing instead of 3,500 lb of careful towing. It's the one Pilot towing decision you can't undo.

One more real-world note from owners: even the 5,000 lb AWD Pilot is happiest in the middle of its range, not pinned at the limit. Towing a 4,800 lb travel trailer over a mountain pass in summer heat asks a lot of any unibody three-row SUV — the engine works hard, fuel economy plummets, and you'll want every bit of the cooling and the weight-distribution hitch. For relaxed towing, sizing your trailer comfortably under the max is the move owners consistently recommend.

Assuming every Pilot tows 5,000 lb. Only the AWD with the tow package does; FWD is around 3,500 lb — check your drivetrain and package before you buy a trailer. Running out of payload before tow rating. A full family plus a heavy tongue weight can exceed payload while you're still under the tow limit — do the payload math with everyone aboard.

Skipping the brake controller. Towing a heavy trailer without trailer brakes dramatically lengthens stopping distance and may be illegal — install a proportional controller. Ignoring tongue weight balance. Too much or too little tongue weight makes a trailer sway dangerously; aim for 10-15% and use a weight-distribution hitch near the max.

A few more that catch people out:

• Forgetting the transmission cooler. Towing heat is what kills transmissions; the tow package's cooler is why AWD Pilots can tow more — don't tow heavy without it.
• No tow mirrors on a wide trailer. You legally and practically need to see past the trailer — add mirror extensions.
• Towing at the limit in heat and mountains. The brochure number is best-case; size your trailer under the max for relaxed, safe towing.

The whole guide compressed to your towing plan:

• Travel trailer, boat, real towing: AWD Pilot with tow package (5,000 lb).
• Light utility trailer, pop-up, watercraft: FWD Pilot (~3,500 lb) is enough.
• Heavy trailer near the limit: add a brake controller + weight-distribution hitch.
• Wide trailer: add tow mirror extensions (legal + safety).
• Mountains and heat: size the trailer under the max for margin.

Buy AWD with the tow package if towing matters, do the payload math with the family aboard, and add the safety gear for anything heavy.

The Honda Pilot is a genuinely capable family tow vehicle — if you buy the right one. The AWD Pilot with the factory tow package tows up to 5,000 lb, enough for a small-to-mid travel trailer or a boat, while the FWD version's ~3,500 lb suits lighter loads. That drivetrain choice is the one Pilot towing decision you can't undo, so make it at purchase if towing is on your list.

Whatever you tow, do the payload math with the whole family aboard (tongue weight eats into it fast), add a proportional brake controller and a weight-distribution hitch for anything heavy, fit tow mirrors for a wide trailer, and size your trailer comfortably under the max for relaxed towing in heat and on grades. Do that and the Pilot does exactly what a good family SUV should — carry the family in comfort and pull a reasonable trailer to the campground safely.

One closing bit of perspective: the Pilot is a tow vehicle for people whose main job is hauling the family and whose occasional job is towing a modest trailer. If towing is your primary mission and the trailers are big and frequent, a body-on-frame truck or a full-size SUV is the right tool. But for the family that camps a few weekends a summer with a right-sized trailer, a properly equipped AWD Pilot is plenty of truck.
