Chevy Silverado 1500 Truck Bed Dimensions for Camping: All Three Beds

Skip the marketing. The spec that decides whether you sleep flat in a Silverado isn't horsepower or towing - it's which of the three beds Chevy bolted to your truck.

Eighteen years under trucks taught me to read past the brochure to the number that actually changes your night. The Chevy Silverado 1500 comes with a Short 5-foot-8 bed, a Standard 6-foot-6 bed, or a Long 8-foot-2 bed, and they are three different sleeping platforms wearing one name. A generic bed chart that quotes 'the Silverado bed' is quoting the wrong truck two-thirds of the time.

Here's the good part: the Silverado's bed floor is flat and its width is the same across all three lengths, so length is the only variable that moves your bed. And it hides one honest catch about power that most write-ups get wrong. This page gives you all three beds straight - floor length, the width between the wheel wells, the depth - which cab came with which, and what the truck will and won't do for you at a campsite. One note on the names before we start: those bed labels are nominal, so the badge that reads 5-foot-8 actually measures about 69.9 inches of floor, and this page uses the real floor numbers throughout because the marketing name rounds while the floor is what you actually lie on. Everything here is measured on the T1XX-generation Silverado 1500 - the 2019-and-up truck - so match your year to the numbers, because the older platform reads a hair different and a chart that doesn't say which generation it means is a chart I don't trust.

Start with floor length, because that's the sleeping number. On the current Silverado 1500, the Short bed's floor is about 69.9 inches, the Standard bed's about 79.4 inches, and the Long bed's about 98.2 inches. These come from aggregator spec pages that mirror Chevrolet's numbers - the closest public source, since Chevy's own server blocks automated reads.

• Short 5'8" = 69.9 in floor: the common bed - handy daily, short for lying flat.
• Standard 6'6" = 79.4 in floor: the camping sweet spot - most adults stretch out flat.
• Long 8'2" = 98.2 in floor: the work bed - room to spare and gear at your feet.

At mile 300 with your back complaining, those inches matter more than any showroom feature. Read the floor length as your straight sleeping length, then check it against your own height before you trust it. When you run the tape yourself, measure the floor at the bulkhead panel behind the cab rather than up at the rail, and subtract for a drop-in plastic bedliner - it can steal an inch or two of usable length and adds molded ridges a pad then has to bridge, whereas a spray-in liner costs you nothing off the floor. Chevy also quotes cargo volume - roughly 62.9 cubic feet for the Short bed, 71.7 for the Standard and 89.1 for the Long - but that's a hauling figure that folds the deep walls in, so it balloons with depth and tells you nothing about whether your legs go straight; for sleeping, ignore the cubic feet and read the floor length.

Here's the spec the charts bury and you should lead with: the width between the wheel wells is about 50.63 inches, and it's the same on all three beds. That's the real usable width on the floor - not the wider 71.4-inch figure at the bed rails, which is above the wells and doesn't help a mattress lying flat.

Fifty and a half inches is the number that matters; the 71-inch rail width is the one that's just marketing. A queen mattress is 60 inches wide, so it will not lie flat between the wells. That's the mistake I see most.

What it means for your setup:

• One sleeper: easy - a standard pad has room to spare on the floor.
• Two sleepers: two twin-width pads fit between the wells; skip the queen.
• Platform over the wells: build a deck level with the wheel-well tops to reclaim the full 71-inch rail width above them and fit a wider mattress.
• Where 50.63 comes from: the wells eat roughly ten inches off each side of the ~71.4-inch rail width - that's the arithmetic behind the number, and it's fixed geometry, not something a liner or a mat changes.
• Pad sizing: two 20-inch pads leave room to shift in the night; two 25-inch pads measure about 50 inches together and just clear the wells, so tape your pads before you buy the pair rather than trusting the label.
• The platform trade: decking level with the well tops buys the full 71.4-inch rail width, but the wells stand roughly eleven inches up, so you give back that much of the 22.4-inch depth and sit higher under any cap - you're trading width for headroom, and that's the call to make on paper before you cut wood.

The Silverado's quiet edge for sleeping is depth. Its bed is about 22.4 inches deep - notably deeper than a Ford F-150's 21.4 - and that extra inch of wall means you sit lower, tucked further out of the wind and out of sight.

• 22.4 in of depth: deep walls shelter a sleeper better than a shallow bed - the sides act like a low wind fence.
• Flat floor: no hump to fight - a pad or platform sits clean.
• The trade: a deeper bed is a taller climb in and out, and it means a cap sits higher - worth knowing, not a dealbreaker.

Depth is the kind of spec nobody advertises but you feel it the first cold, windy night. On the Silverado it's a genuine advantage over shallower beds - one of the few places the truck quietly out-specs its rivals for sleeping. Measure your own depth floor-to-rail-top, and remember a rubber bed mat steals about half an inch of it; that single inch over the F-150's 21.4 sits right at head height when you're lying flat, which is exactly where a passing headlight or a cold gust would otherwise find you. The same depth is why a cap or camper shell rides taller here than on a shallow-bed rival - worth a thought if you park in a low garage or watch highway crosswinds catch a tall shell.

You don't pick a bed length freely - Chevy pairs it with cab size, so the cab tells you which beds were possible. Across the dealer sources that agree, the Silverado 1500 pairings are: Regular Cab with the Standard 6'6" or Long 8'2" bed; Double Cab with the Standard 6'6" only; and Crew Cab with the Short 5'8" or Standard 6'6".

• Crew Cab (the volume seller): most Silverados sold are Crew Cabs, and they default to the Short 5'8" bed - the one that makes you work to sleep flat.
• Double Cab: the Standard 6'6" bed - a good camping length with a real back seat.
• Regular Cab: the long beds - best for sleeping, least cab room.

One honest note on sourcing: some bed charts mix up the cab pairings, so I've leaned on two dealer sources that agree rather than a chart whose combos contradicted themselves. If you bought the popular Crew short bed, the next section is for you. If you're still shopping, the combination worth hunting is a Crew Cab with the Standard 6'6" bed - you keep the full back seat and gain the ten inches of floor that let a six-footer stretch out flat, which the default 5'8" won't. Regular Cabs have drifted toward fleet-order trucks, so the long beds that actually sleep best are the hardest to turn up on a used lot - budget for patience or plan to build over the wells on whatever Crew short bed you find.

Straight answer: not lying flat with the tailgate up. A six-footer is 72 inches; the Short bed's floor is about 69.9 inches, so you're a couple inches short. The Standard 6'6" bed (79.4 inches) fits a six-footer flat easily, and the Long bed obviously does.

If you're on the Crew Cab short bed and taller than about 5-foot-9, you've got three real options: drop the tailgate, sleep on the diagonal, or build over the wheel wells. Pick one on purpose - don't find out at midnight.

The diagonal is the underrated one: the corner-to-corner distance on a 50.63-by-69.9-inch floor is roughly 86 inches, so a six-footer can often lie flat diagonally with the tailgate closed and the weather out. Measure the clear diagonal on the floor, past the wheel wells, before you count on it. Our guide to sleeping in a truck bed without a topper walks through both approaches. Run the diagonal yourself before you count on it: the square root of 50.63 squared plus 69.9 squared lands near 86 inches, but the wheel wells bulge into that corner-to-corner path, so the truly clear diagonal above the floor comes up a little shorter - lay the pad on the angle and confirm both your shoulders and your feet clear the wells, because the math is generous and the sheet metal isn't. Step up one bed length and the problem dissolves: the same diagonal on the 6'6" floor runs past ninety inches, which is why buying the bed to your body beats every night-time workaround.

The Silverado's available Multi-Flex tailgate is a genuinely useful piece for a camper. It has six configurations, including a flip-up inner section Chevy calls the Load Stop - and with the tailgate down and the load stop up, Chevy markets just under eleven feet of usable load length on the Standard bed.

• Tailgate down + load stop: the load stop makes a low foot-guard - handy so a tall sleeper's feet don't hang off the open tailgate.
• The honest caveat: that eleven-foot figure is for hauling long cargo, not a flat eleven-foot bed - the tailgate sits lower and angled, so bridge the lip with a pad or board.
• Tailgate-down length isn't officially published for sleeping, so measure your own tailgate rather than trusting a chart.

If your Silverado has the Multi-Flex gate, it's the short-bed camper's best friend - it turns the tailgate-down setup from a compromise into a decent flat run with a built-in foot stop. Two build notes from doing it: the load stop is a molded flip-up panel, so treat it as a foot guard and not a step you stand on, and bridge the gap between the bed floor and the lowered tailgate with a piece of plywood cut to the 50.63-inch width - that carries your pad flat across the angled lip instead of letting it sag into the seam. Keep the six-configuration gate in mind too: only the tailgate-down-plus-load-stop mode is the one earning its keep for sleeping, and the near-eleven-foot number Chevy prints is a load-length spec for hauling lumber, not a promise of a flat eleven-foot bed.

Here's what the reps and half the internet get wrong, so let me be clear: the gas Silverado 1500 does not have a Ford-style onboard generator. It offers available 120-volt outlets in the bed and cab, but Chevy doesn't cleanly publish a wattage for the gas truck's bed outlet, and the big multi-kilowatt generator numbers you'll see belong to the Silverado EV, not this truck. Don't plan a campsite around power the gas 1500 doesn't have.

• What it has: available 120V outlet(s) - fine for charging and a light while the engine runs.
• What it doesn't have: a Pro-Power-Onboard-style kilowatt generator; that's a Ford feature and a Silverado EV feature, not the gas 1500.
• Don't trust a kW number for the gas truck: any big wattage you see quoted for a gas Silverado bed is almost certainly the EV's spec.

The reliable answer for overnight power is the same as any truck: a portable power station you charge while driving. The engine-off battery is what runs a fan or a fridge while you sleep, not a factory outlet. Size that station to the load, not to the truck: a 12-volt roof fan sips only a few watts, so a modest 500 watt-hour battery will spin it all night, while a compressor fridge wants a good deal more - match the pack to what you actually run. And treat that 120V bed outlet as an engine-running convenience for a phone or a light, because on most configurations it dies with the ignition, which is the outcome you want: it can't quietly flatten the starting battery while you sleep, and you don't wake up to a truck that won't turn over.

The build itself is simple - a flat, deep bed is a good starting point. Two pieces get you sleeping, and neither needs a full cap.

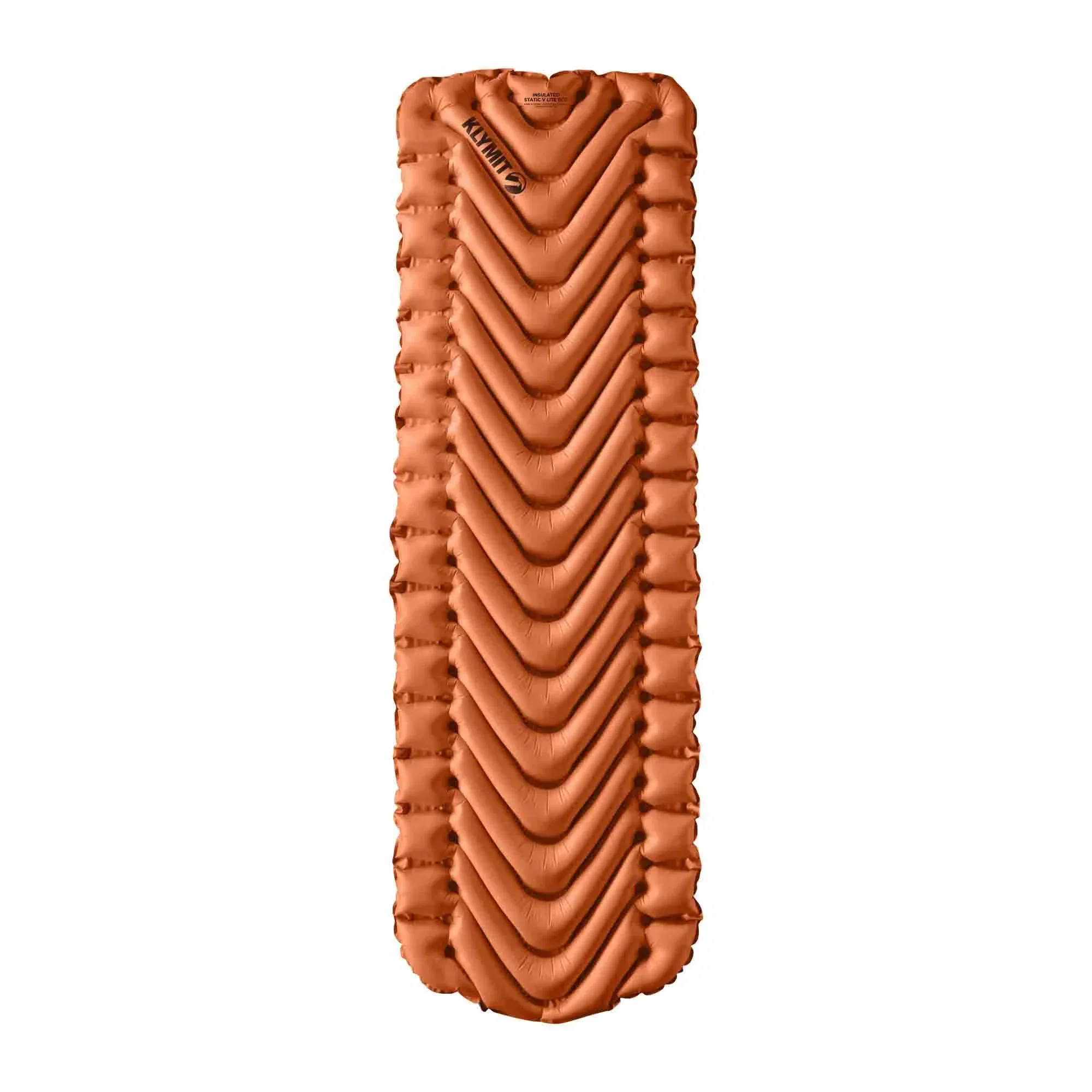

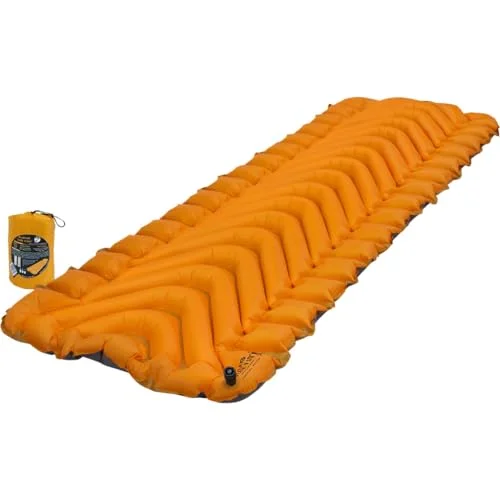

• Level the floor: a Klymit Static V pad turns the hard bed floor into a sleepable surface and packs down small - the base layer for any of the three beds.

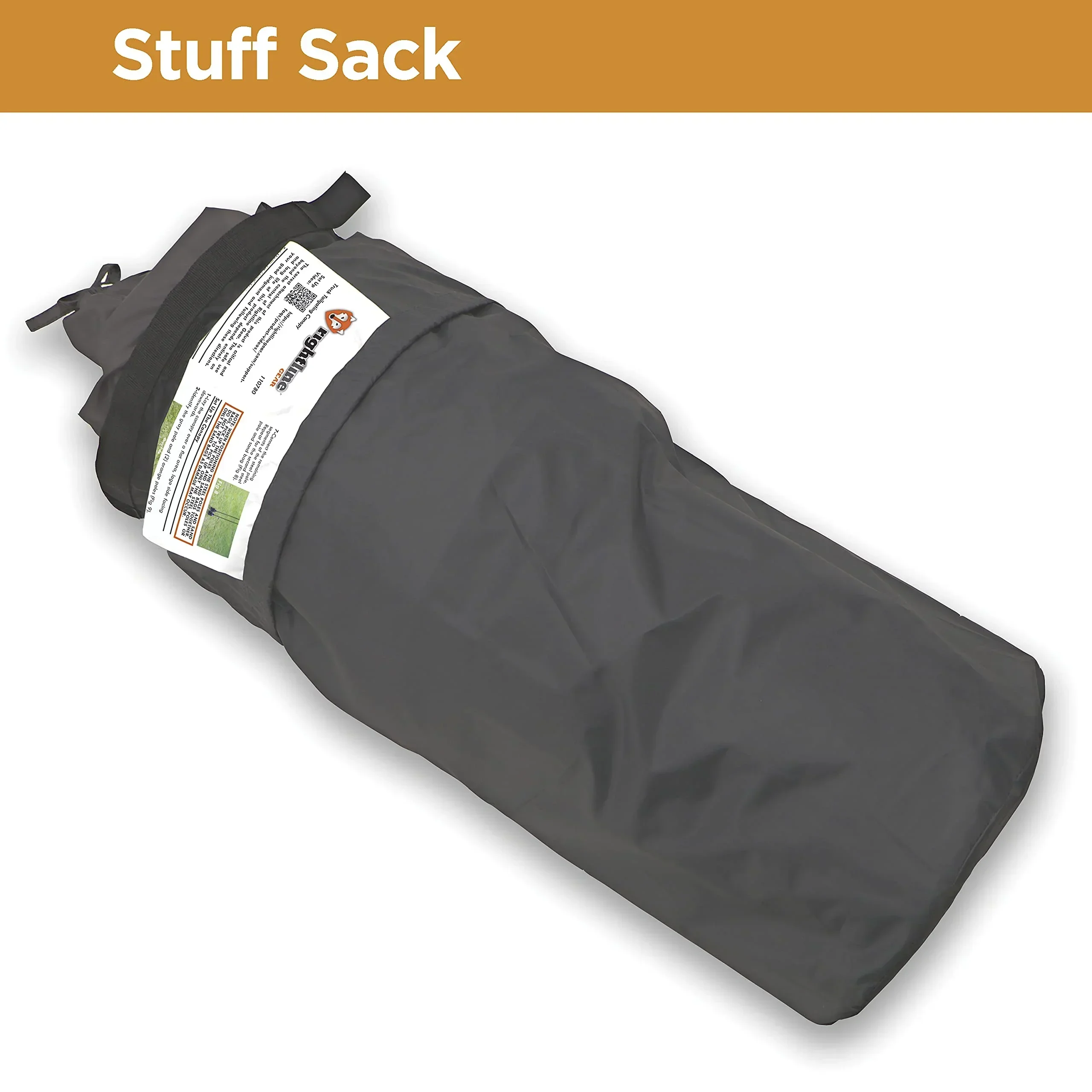

• Keep the rain off: a Rightline Gear tailgate canopy clamps over the open bed to shed rain and dew - especially useful over a tailgate-down setup where your feet extend past the bed.
• The upgrade: a hard or soft topper is the all-weather answer if you camp often, but a pad and a canopy prove out how much you actually need.

Order of operations at mile 300: level first, cover second. Get the floor comfortable, then keep the weather off, and the deep Silverado bed makes a genuinely sheltered place to sleep. The steps in order: sweep the bed clean, lay the pad and inflate it firm but not rock-hard so it settles over any liner ridges, then clamp the canopy - and check the clamp reach first, because the Silverado's 22.4-inch-deep rails ride higher than a shallow bed's and a short-jaw clamp can come up empty on the lip. Over a tailgate-down setup, that plywood bridging board from the tailgate section earns its keep again, carrying the pad flat across the gap so your feet don't drop into the seam between the floor and the gate.

The Chevy Silverado 1500 is a strong truck-bed camper on a notably deep, flat floor - just know which bed you have first. The Standard 6'6" and Long 8'2" beds fit a six-footer flat with the tailgate up; the popular Crew Cab's Short 5'8" bed needs the tailgate down (helped by the Multi-Flex load stop) or a diagonal. All three share 50.63 inches between the wheel wells - too narrow for a flat queen - and a deep 22.4-inch bed that shelters you well.

Know your bed length, measure the floor and the diagonal, level it with a pad, cover it with a canopy or topper, and don't expect a bed generator - the gas 1500 has outlets, not kilowatts. Carry a portable battery for overnight power.

Buy the bed length to your height if you can. If you're cross-shopping, our Chevy Colorado and Ram 1500 bed breakdowns weigh the same length question, the Toyota Tacoma covers the midsize option, and the Chevy Colorado camping guide shows a full smaller-truck build. And if you already own the popular Crew short bed, work your three fixes in order of effort: reach for the Multi-Flex load stop and a bridging board first, sleep the diagonal second, and build a platform over the wheel wells last, when you want the full 71-inch two-across width - each one buys back a slice of the length the 69.9-inch floor costs you, and together they make the hardest bed to sleep in behave like the easy one.
