Backup Camera Black Screen? Fix It Now

The black screen on your backup camera isn't just an annoyance; it's a safety hazard. I've seen too many parking lot fender benders because some poor sap lost their rear view at 2 MPH. Modern vehicles, like a VW ID.4, rely on these systems, and when they glitch, it's a real pain in the ass. This isn't usually a sign of your car spontaneously combusting, just a component acting up.

Understanding Backup Camera Black Screen? Fix It Now

When your backup camera goes black, that's almost always a power delivery or software handshaking issue, not a video signal problem. A blue screen, on the other hand, usually means the video signal is present but corrupted, or the monitor isn't interpreting it correctly. Black means dead. No power. Or the computer brain isn't even trying to send it. Auto Roamer points out this distinction.

The camera itself is a simple CMOS sensor, encased in plastic, usually rated IP67 for dust and water ingress. But that rating doesn't mean it's immune to mechanical stress or thermal cycling. Road salt, UV exposure, and vibration will degrade the seals and the lens over time.

Your vehicle's electrical system is a complex network. A backup camera relies on a constant 12V supply, a ground, and a signal wire - often composite video or a digital signal like LVDS. Any break in that circuit integrity, from a corroded terminal to a fatigued wire, means no picture.

The common failure points are exactly where you'd expect: where wires bend, where connectors mate, and where components are exposed to the elements. The tailgate harness is a notorious spot for wire fatigue due to constant opening and closing cycles. That's a lot of mechanical stress.

Don't just assume the camera is fried. I've seen dealers replace entire camera modules for $500 when the actual problem was a $0.50 fuse. That's a 1000x markup on parts, plus labor. Absolute highway robbery, as Auto Roamer mentions.

Backup Camera Black Screen? Fix It Now in Detail

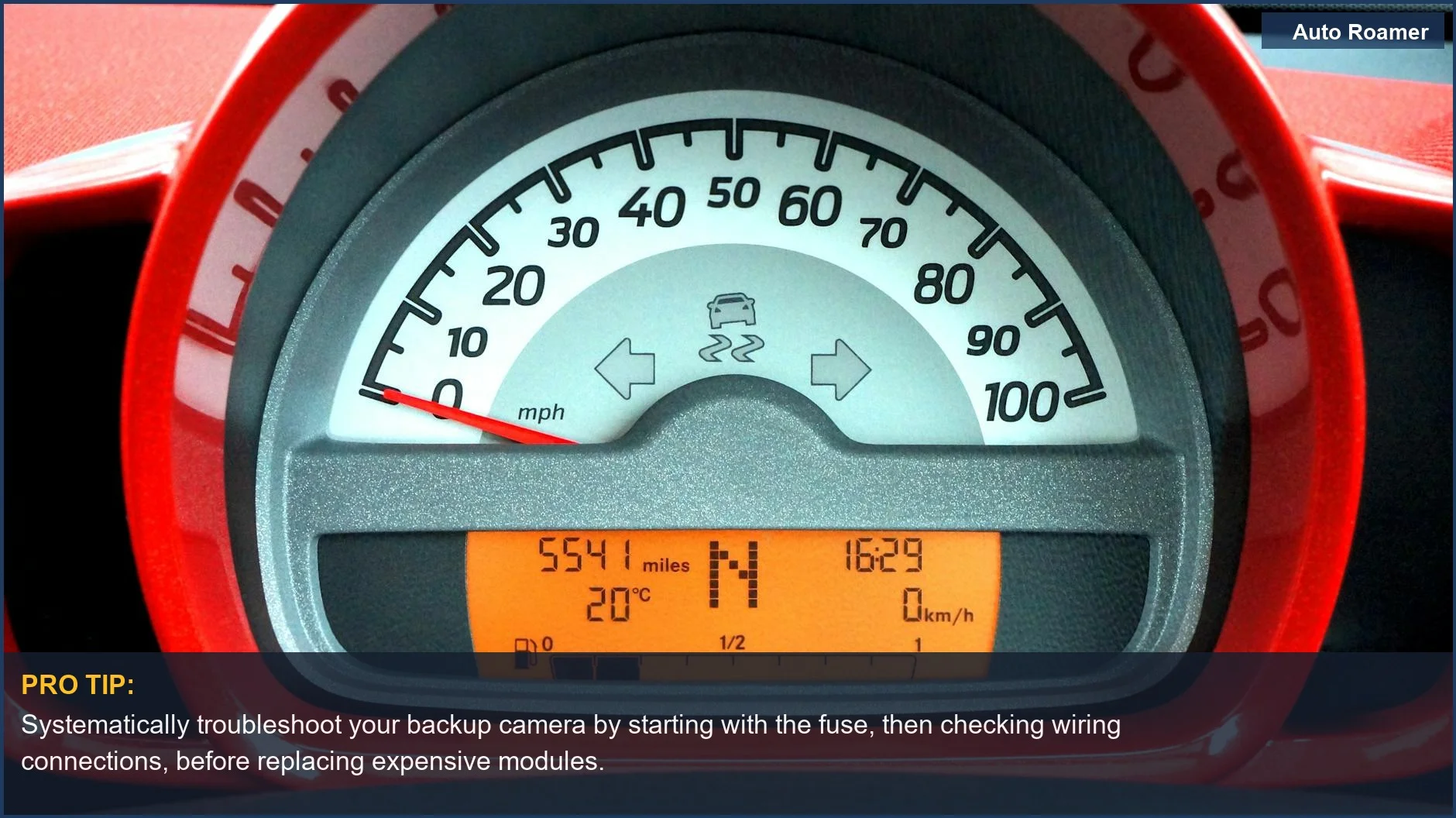

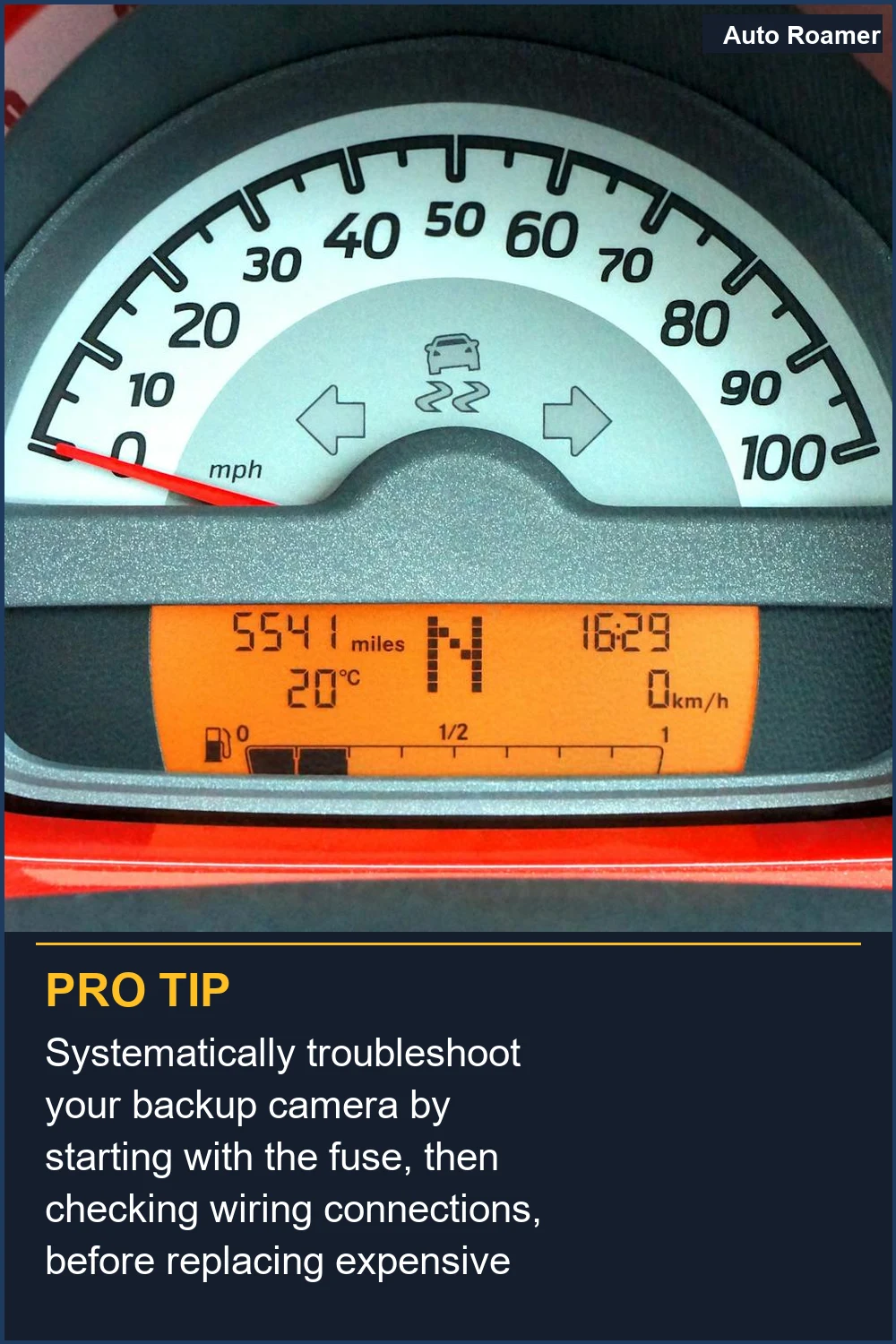

The sudden black screen on your backup camera needs a systematic approach, not just throwing parts at it. Here's how I'd tackle it.

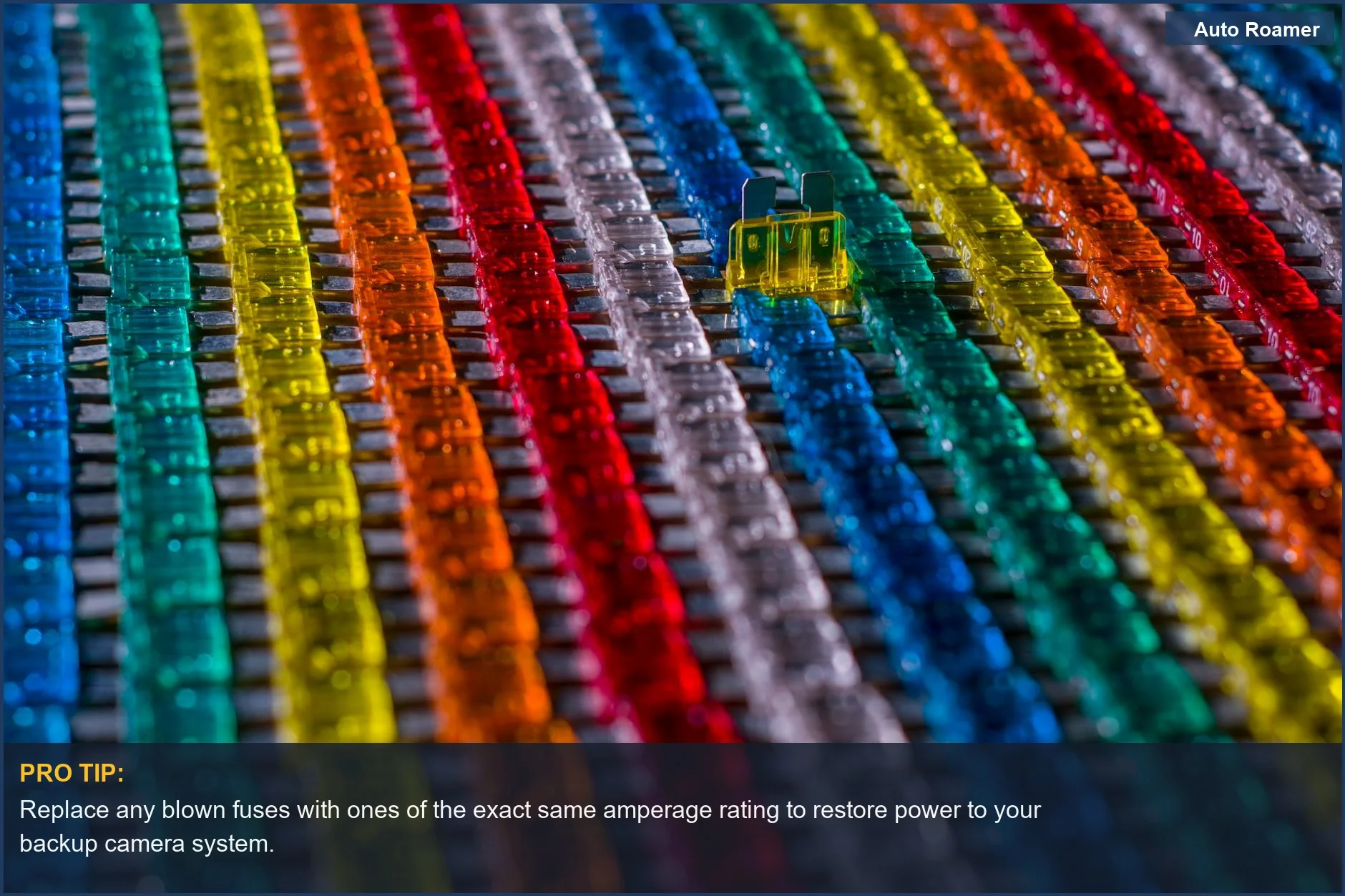

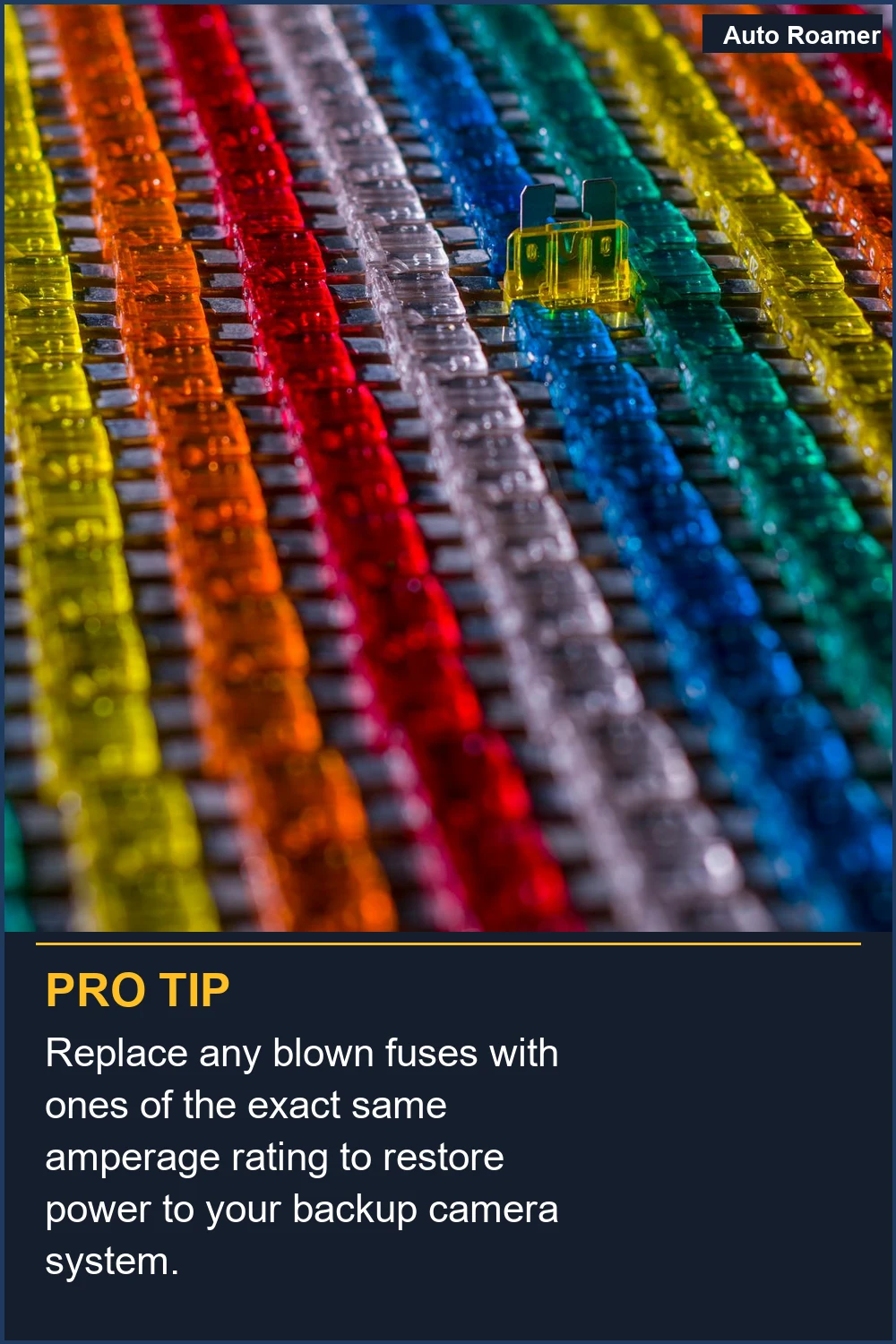

1. Check the Fuse. Seriously.

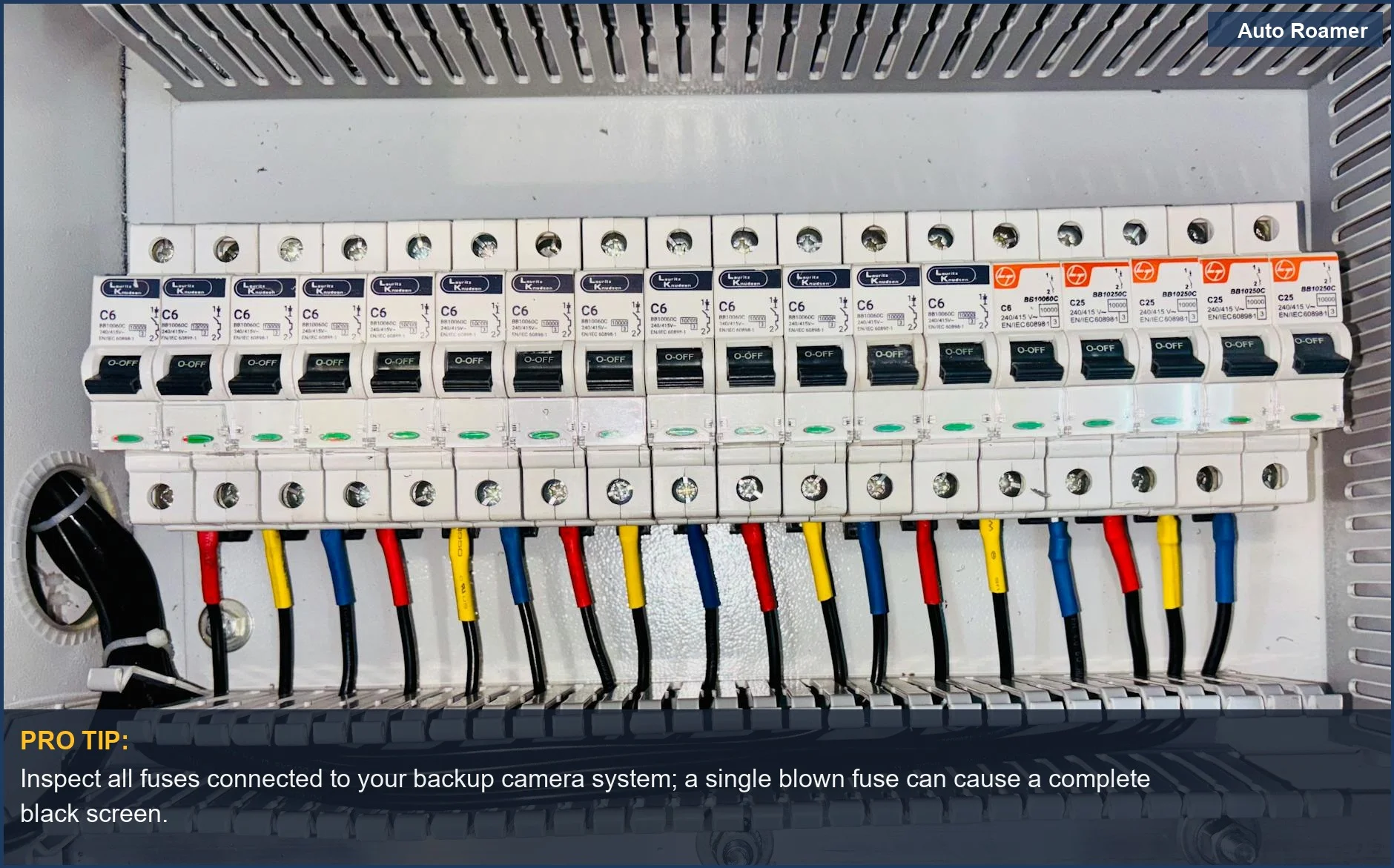

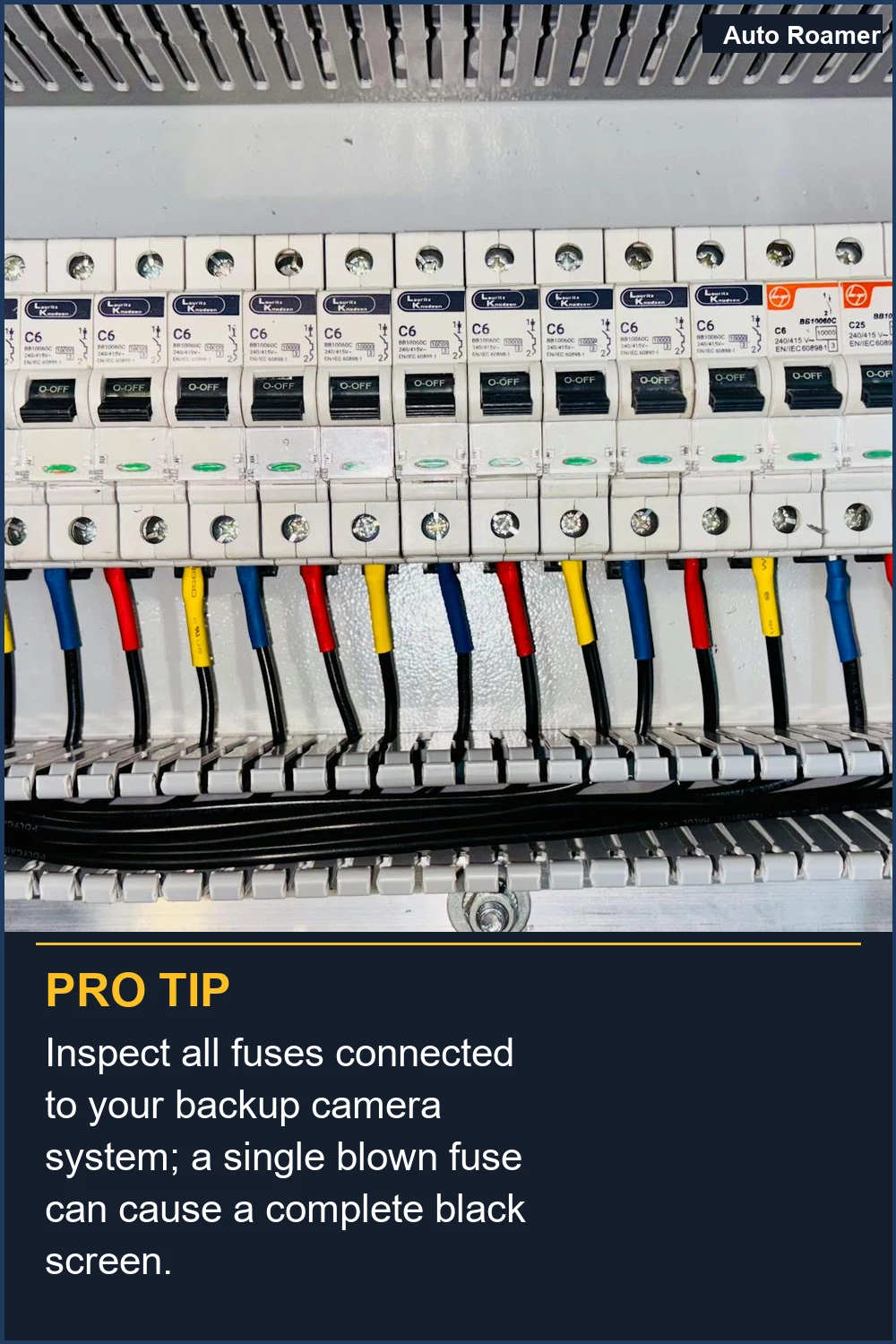

Your backup camera circuit is protected by a fuse, typically a 7.5A or 10A mini-blade fuse, often in the passenger footwell or trunk fuse box. Consult your owner's manual for the exact location. A $15 multimeter set to continuity mode can confirm a blown fuse in 10 seconds. Don't just eyeball it; a hairline break is invisible. This is always step one.

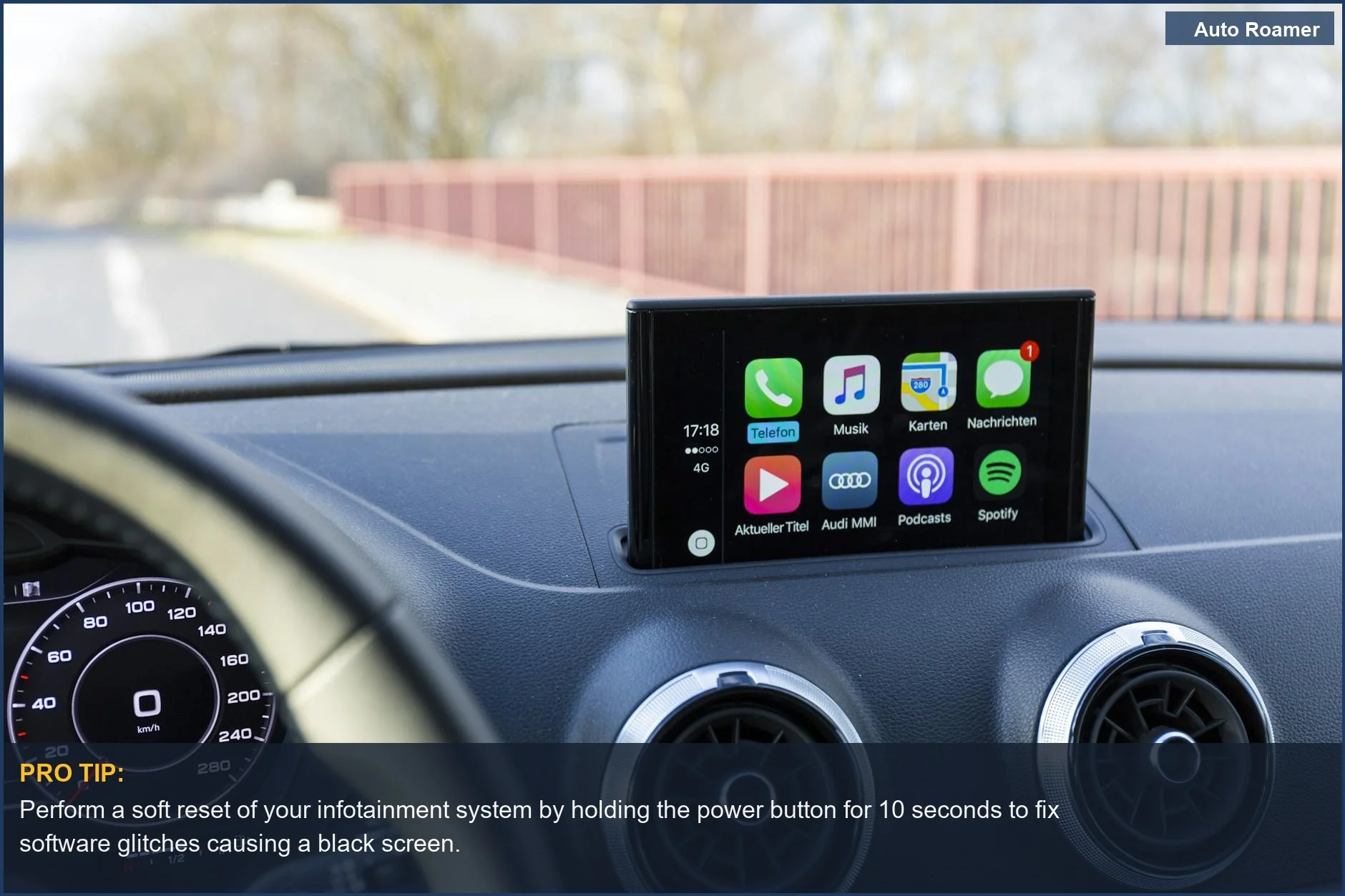

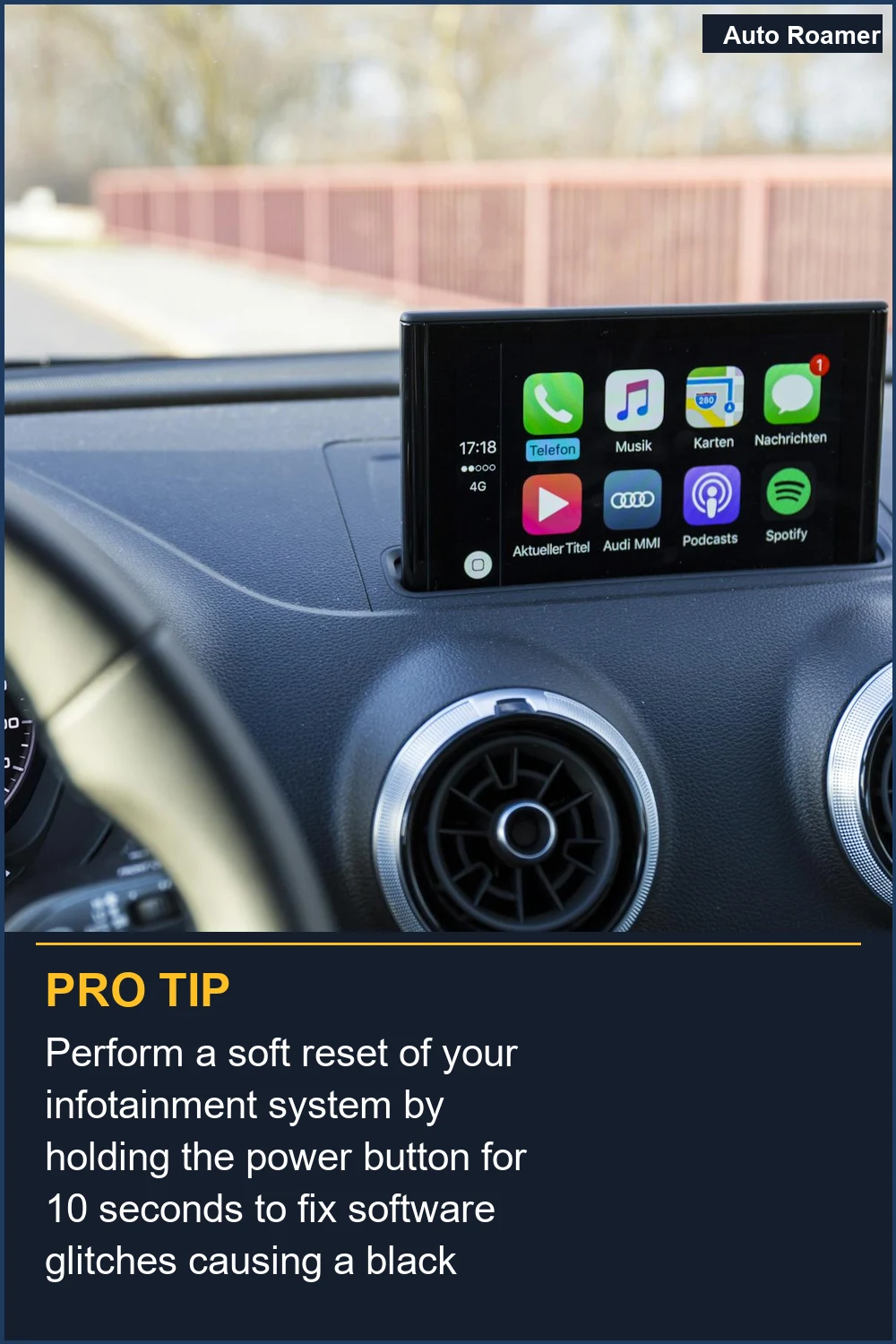

2. Perform a Hard Reset of the Infotainment System.

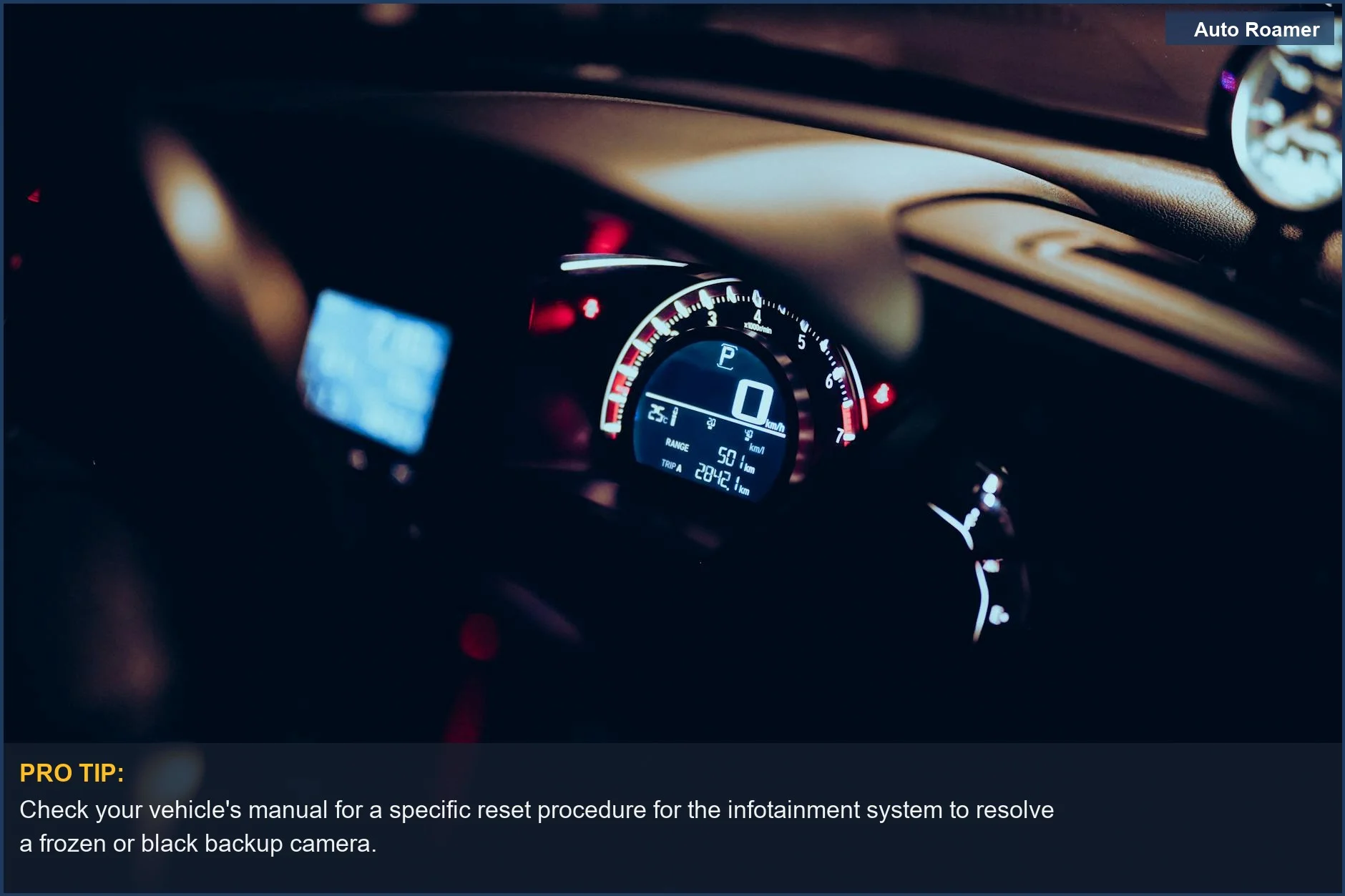

Modern vehicle systems are basically computers on wheels. Sometimes the display module just needs a reboot. Hold the power button on your head unit for 10-15 seconds until it cycles off and on. This clears temporary software glitches, as some guides suggest. It's the equivalent of turning your computer off and on again. Brilliant engineering.

3. Inspect Wiring and Connections.
This is where the real dirtbag engineering comes in. The wiring harness running from the camera (usually in the tailgate or bumper) to the head unit is exposed to constant vibration, moisture, and temperature fluctuations. Look for pinched wires, frayed insulation, or corroded terminals. Pay special attention to the boot where the wires pass from the body to the tailgate - high mechanical stress point. A visual inspection is free, and often reveals the culprit.

4. Clean the Camera Lens.
Okay, this sounds dumb, but I've seen it. A thick layer of road grime, dried mud, or even just condensation can completely obscure the lens. While it usually results in a blurry or dark image, not a black screen, it's a 10-second check. Grab a microfiber cloth and some glass cleaner. Don't use anything abrasive, you'll scratch the polycarbonate lens coating.

5. Test the Camera's Power and Ground.
If the fuse is good and the wiring looks okay, you need to verify the camera itself is getting power. Backprobe the camera's power and ground wires with your multimeter while the vehicle is in reverse. You should see 12V DC. If not, the break is upstream. If you have power, but no picture, the camera module itself or the video signal line is suspect. A black screen generally means no signal.

Common Questions About Backup Camera Black Screen? Fix It Now

What's the real cost difference between a DIY fuse replacement and a dealer repair for a black screen?

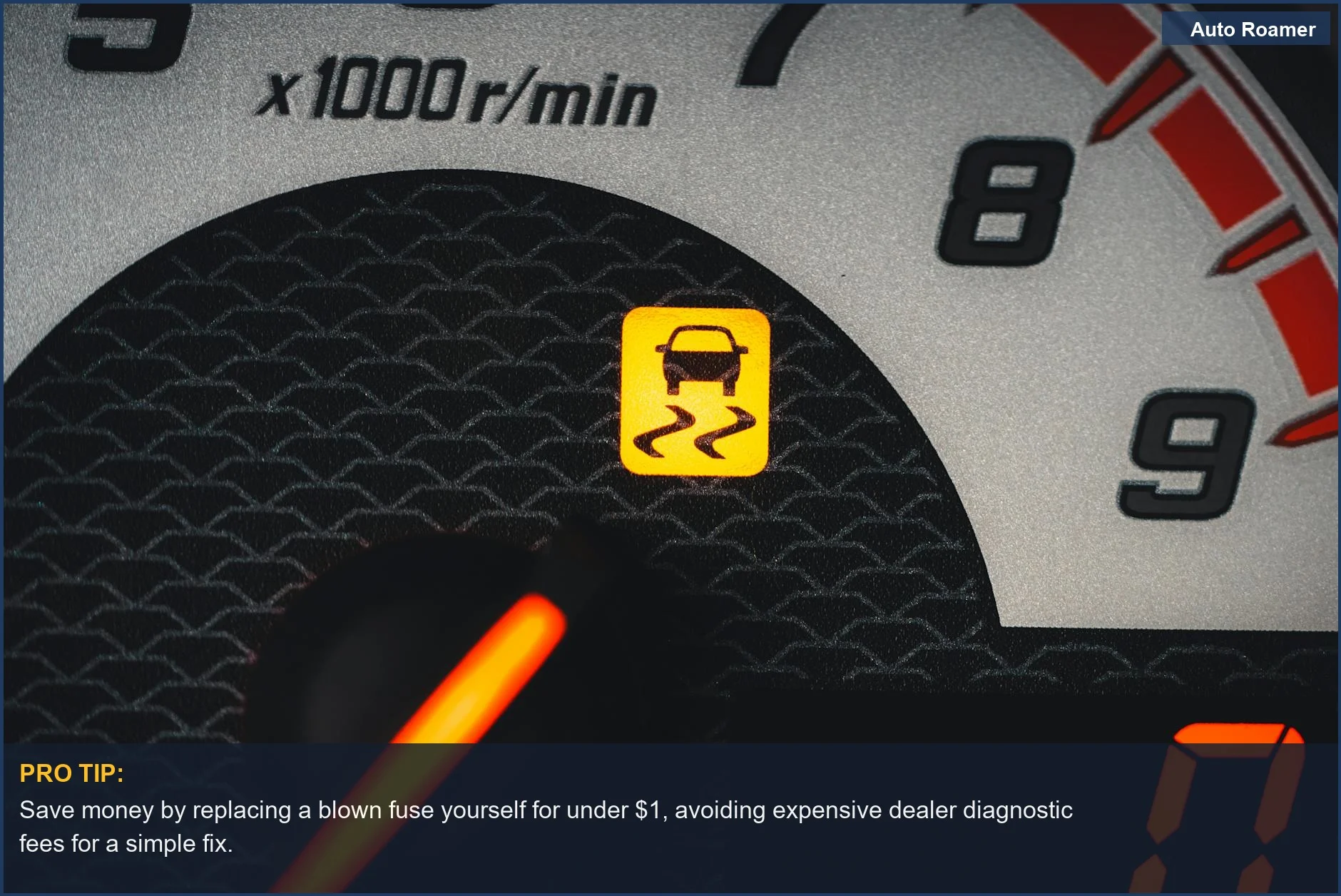

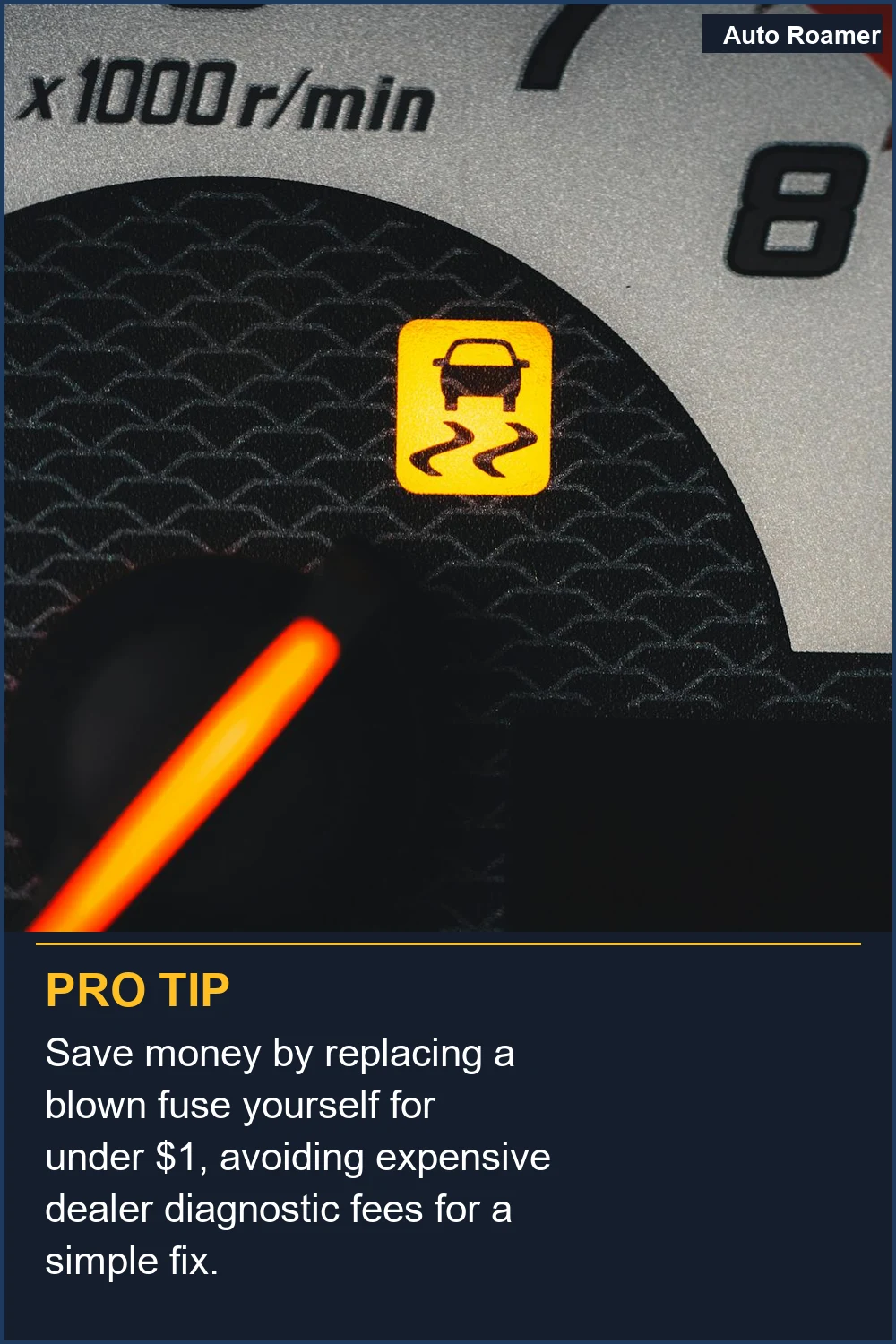

A replacement fuse for your backup camera circuit costs about $0.50 at any auto parts store. The dealer will charge you $150 for 'diagnostic time' and then another $50 for the fuse, plus labor, easily pushing it to $250. My local shop tried to charge a buddy $280 to replace a 10A fuse on his F-150 last month. Absolute highway robbery. This isn't an exaggeration.

Do I really need a multimeter to troubleshoot electrical issues, or can I just eyeball it?
Eyeballing a fuse is a rookie move. A multimeter is a non-negotiable tool for electrical diagnostics. You can pick one up for $15-$20 at any hardware store. It's the only way to confirm circuit integrity and proper voltage. Without it, you're just guessing, and that's how you replace perfectly good parts.

What if I've checked everything and it's still a black screen?
If you've confirmed power to the camera, good ground, and all fuses are intact, then the camera module itself is likely toast, or the video signal line has an open circuit. These cameras are sealed units, designed for replacement, not repair. Damaged wiring or a faulty camera module are common issues. You can try reseating the camera's connector, as some folks have had luck with.

Can a black screen permanently damage my vehicle's electrical system?
Unlikely. A black screen usually indicates an open circuit or a failed component, not a short that would cause damage. The worst you'll do is blow more fuses if you're careless with testing. The vehicle's onboard diagnostics are designed to prevent widespread electrical failure from a single component.

Is it true that aftermarket head units are more prone to backup camera issues?
Not necessarily more prone, but they often have different signal input requirements. Some aftermarket units expect a specific composite video signal, while OEM cameras might output a digital signal. Compatibility issues, not inherent unreliability, are the bigger factor here. Always check the spec sheet before buying.

Tips and Best Practices

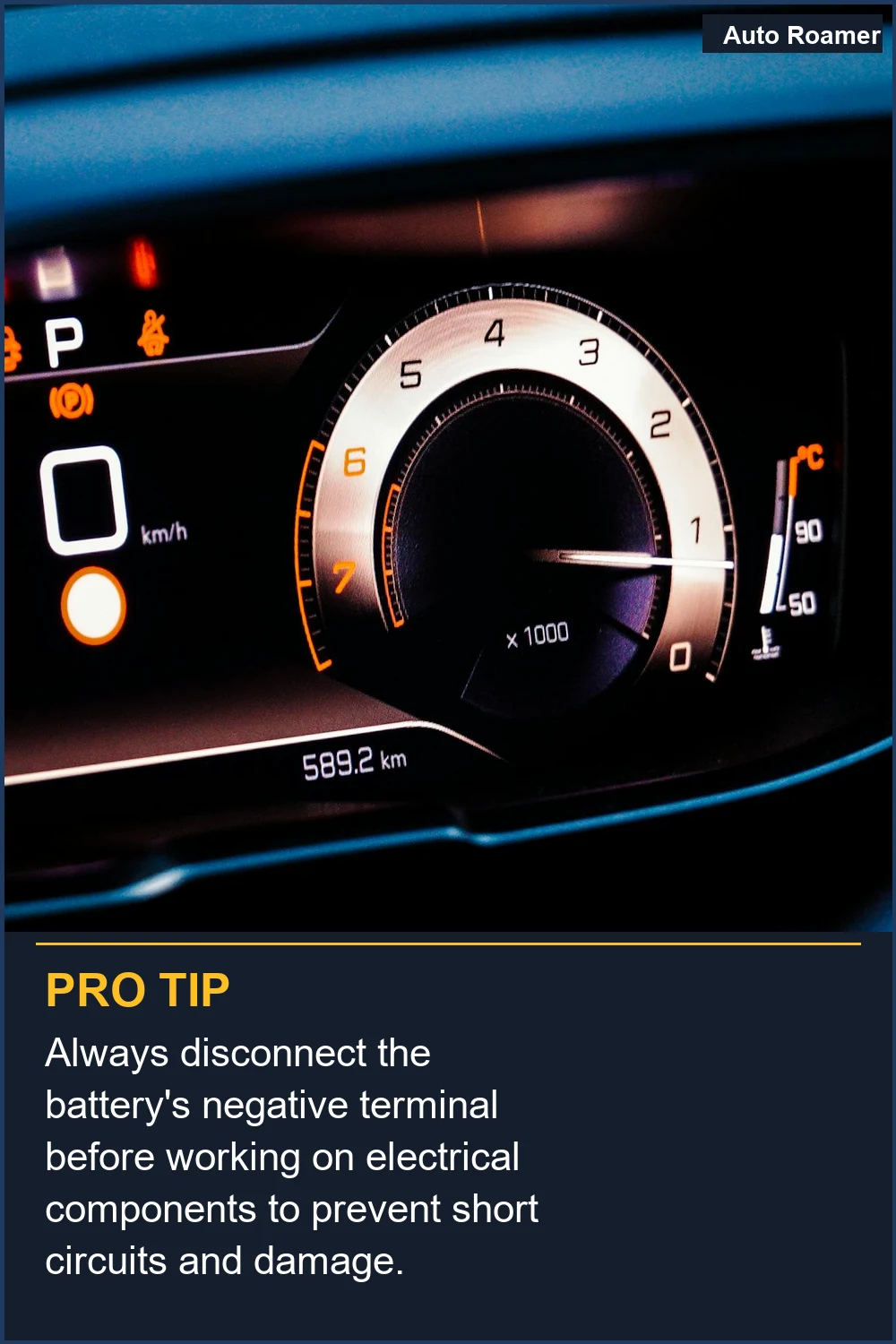

When you're dealing with electrical systems, always disconnect the battery's negative terminal before probing or replacing components. You don't want to accidentally short something out and fry a more expensive module. A momentary lapse in judgment can cost you hundreds.

Before you even start pulling panels, grab your owner's manual. It's got the fuse box diagrams and often troubleshooting steps specific to your vehicle. Some modern cars, like a 2019 Lexus ES350, might have camera calibration issues that are software-related, not hardware.

If you're testing wiring, use a small piece of sandpaper or a wire brush to clean any corrosion off ground points. A solid ground connection is just as critical as a good positive feed. High resistance on the ground side causes voltage drop, making your camera effectively powerless.

When reinstalling connectors, make sure they 'click' into place. A loose connection has high resistance, leading to intermittent power delivery and eventual corrosion. That 0.3mm of play can cause arcing and intermittent signal loss. You want a positive, tactile engagement.

Consider the environment. If your vehicle lives in a high-salt or high-humidity area, expect faster degradation of wiring and connectors. The thermal cycling from hot days to cold nights causes materials to expand and contract, eventually breaking down insulation and seals. This isn't a design flaw; it's physics.

Real-World Examples

I had a buddy with a 2017 F-150 whose backup camera went black. Dealer wanted $600 for a new camera and install. I grabbed my multimeter, found the 10A fuse for the camera circuit was blown. Replaced it for $0.50. Dealer markup: 1200x.

Another one: a 2019 Honda Civic. Black screen, but sometimes it would flicker on. Traced the wiring to the tailgate hinge. The harness insulation was cracked, exposing the signal wire. Road salt had caused a high-resistance short to chassis ground. Fixed with some heat shrink and electrical tape for $3. Wiring is a common failure point.

Then there was the 2018 Mazda CX-5. Black screen, but the guidelines still showed up. That's a classic sign the head unit is ready for a video signal, but not receiving one. The camera module itself had failed internally. No power issues, no wiring issues. Just a dead sensor. Replaced the camera for $180, DIY. The dealer would have charged $450.

A common issue with RVs and campers, as seen on Forest River Forums, is the sheer length of the wiring run. More wire means more opportunities for voltage drop, interference, and mechanical damage. You're pulling that camera signal from the bumper all the way to the dash. That's a long way for a clean signal.

Key Takeaways

Don't let a black screen on your backup camera turn into a $500 dealer repair. Most issues are simple electrical or software glitches.

• Check Fuses First: A $0.50 fuse is the cheapest fix. Don't skip it.
• Inspect Wiring: Mechanical stress on harnesses, especially in tailgates, is a common failure mode.
• Reset Systems: A hard reset of your infotainment system can clear software bugs for free.
• Verify Power: Use a multimeter to confirm 12V at the camera. If no power, trace it back.
• Consider the Camera: If all else fails, the camera module itself may have failed.

A little diagnostic work with basic tools can save you hundreds. Don't pay someone $200 for a 30-second fix. You can reset a frozen camera in minutes. It's not rocket science, just basic circuit integrity and mechanical inspection.
