Best AUTO-VOX Backup Camera: The Lineup Compared

AUTO-VOX does not sell one backup camera — it sells several distinct lineups, and picking the right one comes down to a single question: do you want to run a video cable or not? If the answer is no, the Solar series (Solar1, Solar4, Solar5) is the obvious starting point: a battery-and-solar-powered camera that beams its picture wirelessly, so there are no wires to snake the length of the vehicle and nothing to charge if the panel gets sun. If you want the most stable, highest-clarity feed and do not mind a one-time wired install, the CS-2 and CS-5 wired kits are the AUTO-VOX answer. And if you would rather replace your rear-view mirror entirely, the mirror-mounted V5, W7, and W10-style systems put the camera feed on a screen built into the mirror.

Here is the honest short version, drawn from AUTO-VOX's published model specifications rather than any test of our own: pick the Solar series if zero wiring and easy DIY install are your priority; pick a wired CS-series kit if signal stability and image clarity matter most and you tow or reverse in tight spots often; pick a mirror system if you want a large display without adding a separate monitor to your dash. The wireless models trade a little signal robustness and the need to recharge for a dramatically simpler install; the wired models trade install effort for a rock-solid, always-on feed.

This guide walks through the whole AUTO-VOX lineup the way the specs actually divide it: wireless versus wired, the solar option, screen and mirror types, resolution and field of view, install difficulty, and which model suits which kind of driver. Every figure cited is an AUTO-VOX published or manufacturer-stated specification, attributed as such — we have not bench-tested these units, and we will say so plainly wherever a number comes from the spec sheet rather than the road.

One more framing note before the details. AUTO-VOX is a single-brand decision: every option below is an AUTO-VOX product, so this guide is about choosing within the AUTO-VOX range, not about AUTO-VOX versus the rest of the market. If you are still deciding whether to buy AUTO-VOX at all, or you want to compare distinct brands head to head, our wireless backup camera comparison across seven brands is the better starting point, and we link back to it again at the end.

AUTO-VOX organizes its backup cameras into three broad families, and understanding the split is most of the battle. Once you know which family fits your vehicle and your tolerance for installation work, narrowing to a specific model is straightforward.

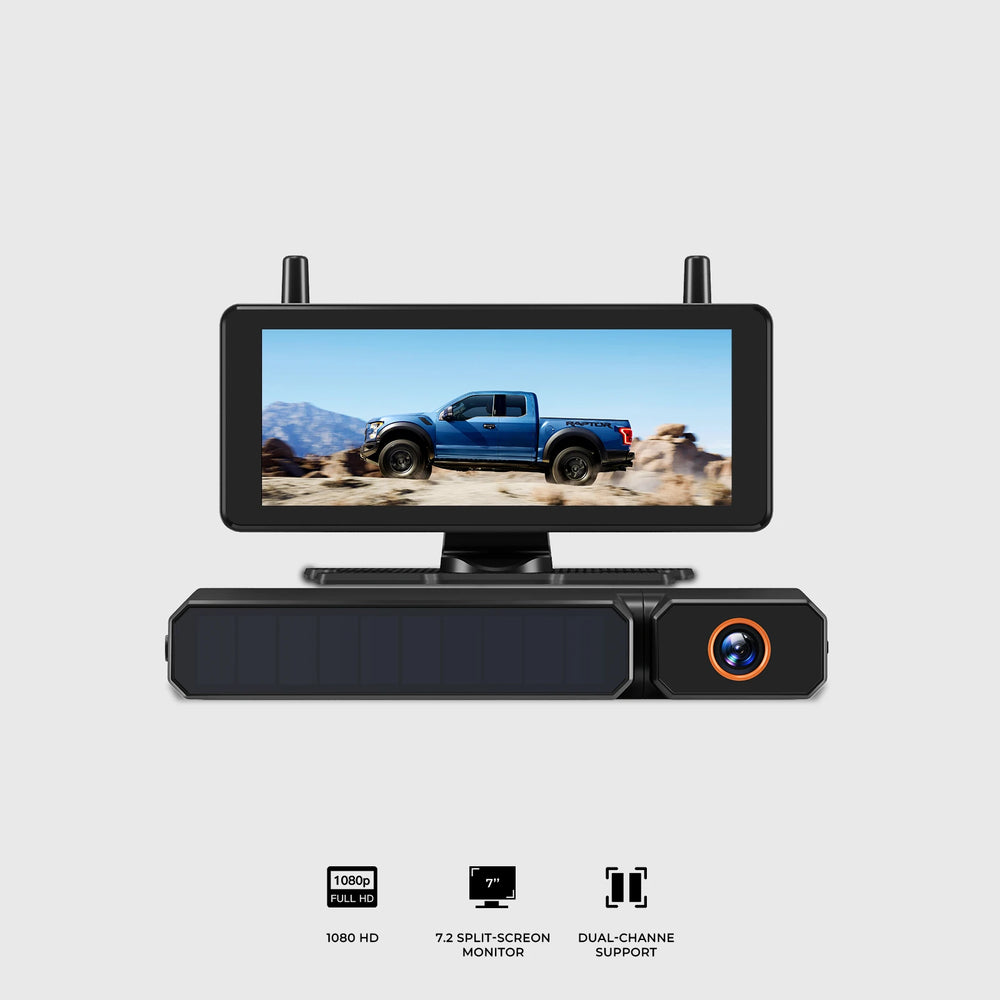

The Solar wireless family (Solar1, Solar4, Solar5). These are the models AUTO-VOX is best known for. The camera carries its own rechargeable battery and a small solar panel on top, so it can run without any power wiring at all, and it transmits the picture wirelessly to a dedicated monitor on your dash. AUTO-VOX positions these as the easiest possible install — mount the camera on the license plate, stick the monitor on the dash, pair, done. They are the right pick for renters, for anyone who hates wiring, and for vehicles where running a cable is impractical.

The wired CS family (CS-2, CS-5). These kits run a physical video cable from the rear camera to the front monitor. That cable is the whole point: a wired link does not drop out, does not need recharging, and delivers the most consistent image AUTO-VOX offers. The trade is a longer, more involved install — you are routing a cable the length of the vehicle and typically tapping the reverse-light circuit for power. The CS-2 is the long-running mainstream wired kit; the CS-5 adds a larger, sharper display.

The mirror-mounted family (V5, W7, and similar). Instead of a separate monitor, these put the screen inside a unit that clips over or replaces your rear-view mirror, showing the camera feed there. Many of these double as a dash cam, recording the road ahead, which is a meaningful bonus if you want both functions in one device. They suit drivers who want a big screen without cluttering the dash.

The honest rule of thumb: choose the Solar family for the easiest install, the wired CS family for the most reliable picture, and the mirror family if you want a large integrated display or a combined dash-cam-plus-backup-camera unit. There is no single ‘best AUTO-VOX camera’ — only the best one for how you drive and how much install work you are willing to do.

Model names and exact specifications shift as AUTO-VOX refreshes its range, so always confirm the current spec on the listing before buying. The family logic, however, stays stable: wireless-solar for convenience, wired for stability, mirror for display size. The rest of this guide compares those families on the specifics that change real-world performance.

Before any single model makes sense, settle the wireless-versus-wired question, because it dictates install effort, reliability, and price more than any other spec. AUTO-VOX sells strong options in both camps, and neither is universally ‘better’ — they solve different problems.

Wireless (the Solar series and other AUTO-VOX wireless kits) transmit the camera image over a paired radio link, usually on the 2.4GHz band, to the monitor. The advantage is enormous for install: there is no video cable to route through grommets, under trim, and across the cabin, which is the single hardest and most error-prone part of a backup-camera install. The trade-offs are real, though. A wireless link can suffer interference or latency, especially over the length of a long vehicle or trailer, and the camera needs power — which is exactly why the solar panel exists, to keep the onboard battery topped up so you are not recharging it by hand.

Wired (the CS-2 and CS-5) send the signal down a physical cable. That cable is immune to radio interference, introduces effectively no latency, and never needs recharging, which is why AUTO-VOX's wired kits deliver its most consistent feed. The cost is install labor: you route the cable end to end and typically power the camera from the reverse-light circuit. For drivers who reverse toward a hitch in a tight space regularly, or who tow, that always-on stability is usually worth the extra install time.

• Choose wireless if easy DIY install is the priority, you are renting or will move the camera between vehicles, or running a cable is impractical.
• Choose wired if you want the most reliable, lag-free picture, you tow or reverse in tight spots often, and you are comfortable with a longer install.
• On a long vehicle, RV, or trailer, weigh wireless range carefully — AUTO-VOX rates each wireless kit for a maximum transmission distance, and a long rig can push past it.

The deeper trade-off between the two technologies applies to every brand, not just AUTO-VOX; our broader breakdown of wireless backup cameras and how the radio link behaves covers the interference and range issues in more depth. Settle this question first, and the model choice within AUTO-VOX becomes much simpler.

The feature that distinguishes AUTO-VOX's flagship wireless cameras from most rivals is the integrated solar panel, and it is worth understanding what it does and does not do before you rely on it. The solar option is genuinely useful, but it is a battery-topping aid, not a magic perpetual-motion machine.

An AUTO-VOX Solar-series camera carries a rechargeable battery and a small solar panel on its housing. In daily use, the panel trickle-charges the battery whenever the camera sees daylight, which AUTO-VOX states can keep the unit topped up for long stretches without a manual recharge. The benefit is concrete: no power wiring at install, and in normal driving you rarely if ever have to pull the camera down to charge it over USB. That is the convenience the Solar line is built around.

The honest caveats matter. The panel only generates power when it gets light, so a vehicle parked for weeks in a dark garage, or a camera mounted where it sits in shade, will eventually need a manual top-up. AUTO-VOX supplies a USB charging option precisely for that case. The solar panel supplements the battery; it does not run the camera directly in real time, so its job is to extend the interval between charges, not to eliminate charging entirely. Treat the manufacturer's stated charge-retention figures as typical published numbers, and expect real-world results to vary with your climate, parking, and how often you reverse.

Set against a non-solar wireless camera, the solar option mainly buys you peace of mind and a lot fewer dead-battery moments. Set against a wired camera, it removes the power-wiring step but still asks you to keep the panel reasonably clean and sunlit. If your vehicle lives outdoors and sees regular daylight, the solar models are close to set-and-forget; if it lives in a deep garage, factor in the occasional recharge and decide whether wired power is simpler for your situation.

How the AUTO-VOX feed reaches your eyes is as important as the camera itself, and the lineup gives you three display approaches plus a resolution choice. Picking the display type that fits your dash and your habits prevents the most common post-purchase regret.

Dedicated dash monitor (Solar and CS series). Most AUTO-VOX kits ship with a standalone monitor, commonly in the 4.3-inch to 7.2-inch range depending on the model, that you mount on the dash or windshield. A larger screen makes distances easier to judge and reduces squinting, but it also takes up dash real estate and can obstruct your forward view if oversized for the cabin. For most cars a 5-inch monitor is the practical sweet spot; trucks and RVs benefit from the larger 7-inch-class displays.

Mirror-mounted display (V5, W7-class). These show the camera feed in a screen built into a rear-view mirror unit, which keeps the dash clear and puts the image where your eyes already glance for rearward awareness. Many mirror units add a forward dash cam, giving you recording plus backup view in one device. The trade is that a bright mirror screen can be distracting at night for some drivers, so look for models with adjustable brightness.

Resolution and field of view. AUTO-VOX lists most current cameras at 1080p, which is the sensible minimum for judging small obstacles and exact distances; older or budget feeds at 480p or 720p look noticeably softer when you are inches from a hitch ball. Field of view typically lands around 130 to 150 degrees depending on the model — wide enough to see the full width of the vehicle plus margin, without the extreme fish-eye distortion that makes distance judgment harder. Pair a 1080p sensor with a roughly 140-degree lens and you have the combination most AUTO-VOX buyers should target.

Night performance rounds it out: look for an explicit night-vision or low-light specification, since reverse lights alone illuminate only a narrow cone. The published specs vary by model, so confirm the resolution, viewing angle, and night-vision claim on the exact unit you are considering — those three numbers, more than the screen size, determine how usable the picture is when it counts.

Install effort is where the AUTO-VOX families diverge most sharply, and being realistic about it up front saves a frustrating afternoon. None of these require professional fitting, but they are not all equal — the wireless-versus-wired choice you made earlier shows up here in concrete labor.

Solar wireless install (easiest). Because the camera is self-powered and transmits wirelessly, the job is mostly mechanical. Mount the camera on the license-plate bracket with the existing screws, place and pair the monitor, and plug the monitor into a 12V socket. There is no video cable to route and, on the solar models, no power wiring to the camera at all. AUTO-VOX advertises some of these as a few-minute install, and for the camera side that is broadly fair; the monitor is the only thing that needs 12V power.

1. Mount the camera: bolt it to the plate bracket; for magnetic mounts, clean the surface first for a secure hold.
2. Place the monitor: suction-cup to the windshield or adhesive-pad to the dash, cleaned with isopropyl alcohol for a lasting bond.
3. Power the monitor: a 12V cigarette-lighter socket works immediately; hardwiring to a switched fuse gives a cleaner look.
4. Pair and test: put the vehicle in reverse, confirm the feed appears, and adjust the guide lines to your vehicle's width.

Wired CS install (more involved). The wired kits add the cable run. You route the video cable from the rear of the vehicle to the front, usually along existing harness paths and under trim, and typically tap the reverse-light circuit so the camera powers up when you select reverse. This is the step that turns a 20-minute job into an afternoon, and it is where most DIY frustration lives — use proper wire taps and weatherproof any rear connections. The payoff is the cable's rock-solid, never-recharge feed.

Mirror install (moderate). The mirror unit straps over the existing mirror and is powered from a 12V source, while the reversing camera at the rear still needs mounting and, depending on the model, a wired or wireless link back to the mirror. It sits between the two extremes in effort. Whichever family you choose, budget time for aiming the camera and calibrating the on-screen parking guidelines — a camera that is mounted but mis-aimed gives you a confident-looking picture of the wrong thing.

With the families and trade-offs laid out, here is how to land on a specific AUTO-VOX choice based on what you drive and how you use it. The goal is to match the system to the load rather than over- or under-buying.

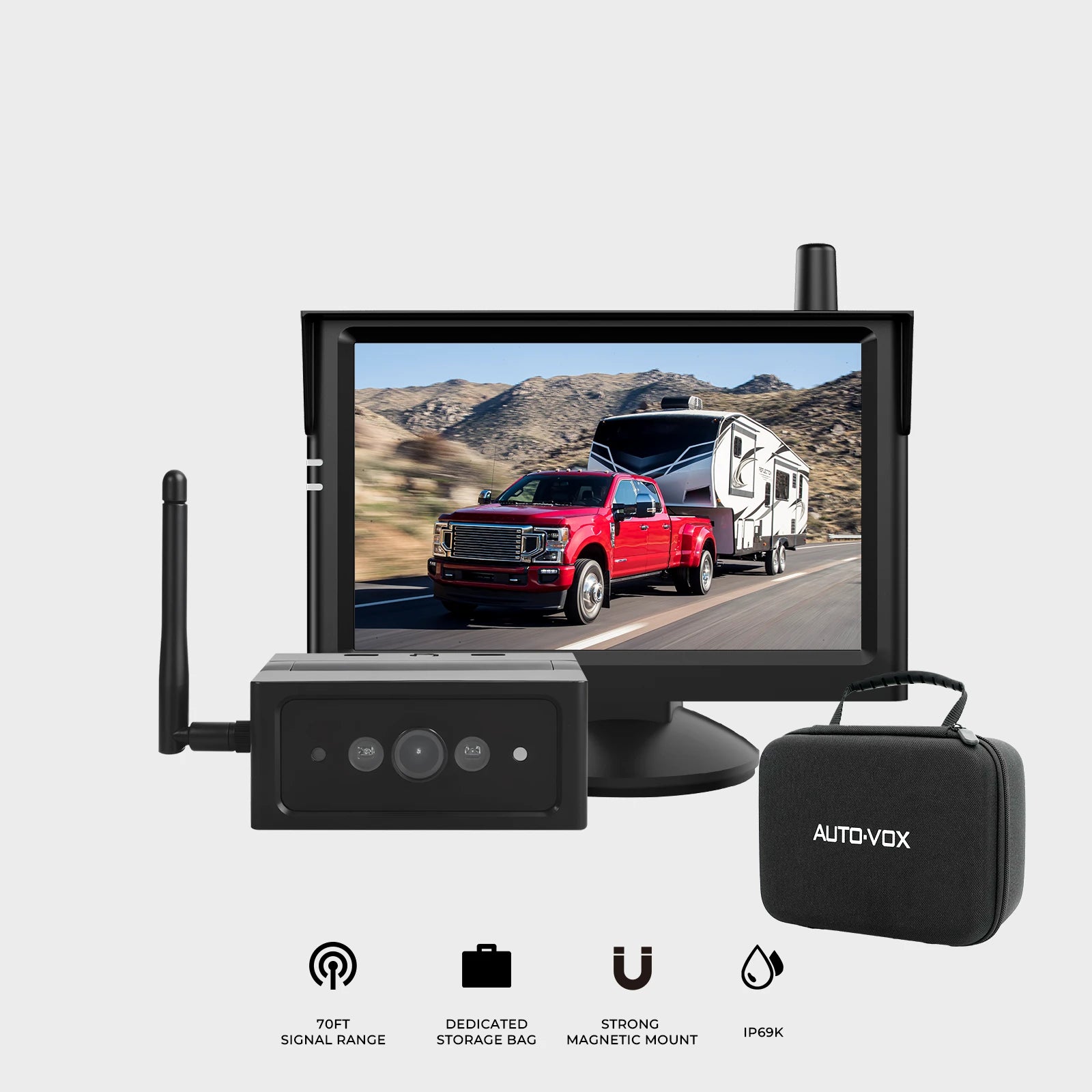

Commuter car or daily driver: a Solar-series wireless camera with a 5-inch monitor is usually the sweet spot. The install is trivial, the solar panel keeps it charged in normal outdoor parking, and a compact dash monitor does not clutter a smaller cabin. You get genuine reversing help without an afternoon of wiring.

Truck or frequent tower: lean toward a wired CS-2 or CS-5. When you are lining up a hitch in a tight space, the lag-free, drop-out-proof wired feed earns its extra install time, and the larger CS-5 display helps with the finer distance judgments towing demands. If you specifically want a wireless truck setup, confirm the kit's rated transmission range comfortably exceeds your rig's length.

RV or long trailer: range and stability are the deciding factors. A wired link is the most dependable over a long rig, but if you need wireless for practicality, choose the AUTO-VOX model with the longest rated wireless range and ideally dual-channel support so you can run a camera on both the towing vehicle and the trailer.

Driver who wants one device for everything: a mirror-mounted V5- or W7-class unit that combines a rear-view backup display with a forward dash cam consolidates two gadgets into one and keeps the dash clean. It suits anyone who values an integrated setup over the absolute simplest install.

Whatever you pick, the buying discipline is the same: confirm the current published resolution (target 1080p), field of view (around 130 to 150 degrees), display size for your cabin, power method (solar, USB, or wired), and — for wireless — the rated range against your vehicle's length. Get those five right for your situation and any AUTO-VOX model in the matching family will serve you well. If you are still weighing AUTO-VOX against other brands entirely, compare it directly in our seven-brand wireless backup camera guide before you commit, and if you are retrofitting an older vehicle, our notes on backup cameras for older trucks cover the fitment quirks worth knowing.

A backup camera is only useful if the picture stays clear, and a little upkeep keeps any AUTO-VOX unit reliable well past its warranty. These are the habits that prevent the common failures, plus what to check first when the screen goes dark.

Keep the lens clean. The rear lens collects road film, dust, and salt fast. Wipe it with a microfiber cloth and mild glass cleaner or plain water every few weeks; avoid abrasive cleaners and paper towels, which scratch the lens and scatter light into a blurry image. A grimy lens, not a failed sensor, is the most common reason a feed looks bad.

Mind the solar panel and battery. On the Solar models, keep the panel clean and reasonably sunlit so it can do its job; a panel buried under dirt or always parked in shade will let the battery run down and force manual USB charges. Check the mounting hardware periodically too — vibration loosens bolts and degrades adhesive over time, and a camera that wobbles delivers a shaky picture.

If the screen goes black, do not assume the camera died. Most ‘dead’ AUTO-VOX feeds trace to a flat camera battery (recharge it), a lost wireless pairing (re-pair the camera and monitor), a loose 12V connection at the monitor, or a reverse-circuit tap that has worked loose on a wired kit. Work through power and pairing before concluding the unit has failed.

For the wired CS kits, inspect the rear connectors once a year for corrosion or chafing where the cable passes through the body, and re-weatherproof anything exposed. For wireless kits, signal dropouts usually point to interference or a range issue rather than a fault. Our deeper guide to fixing a backup camera black screen walks through the diagnostic order in detail. A few minutes of this routine maintenance is the difference between a camera that lasts years and one you are replacing in eighteen months.

Finally, a note on the law and on brand choice. A working rear camera is now standard safety equipment, and if you are curious where the rules came from, our explainer on the US backup camera law covers the federal mandate. And to be clear about scope one last time: this guide compares AUTO-VOX models from the manufacturer's published specifications, not from first-hand testing of our own. If you want a cross-brand verdict before buying, start with our multi-brand wireless backup camera comparison.
