Kia Sportage Car Camping and Dashcam Power Setup Guide

The Kia Sportage, for all its quirks, makes a decent platform for car camping, especially if you're solo or a couple. You get 73.7 cubic feet of cargo space with the rear seats folded, which is enough for a minimalist setup. But don't expect to haul a full-size fridge. The real challenge is managing power for accessories like a dashcam without draining your 12V starting battery.

Auto Roamer notes it's best for solo or shorter couples, which means less power draw overall, but still, you need to be smart.

Kia even offers an embedded dash cam on some trims, which is a nice thought. But it's locked into their ecosystem and probably costs a fortune to replace. For true utility, you're going aftermarket. This means figuring out how to tap into the electrical system without frying your Body Control Module.

I've seen too many forum posts about dead batteries because someone wired a dashcam to an always-on circuit without understanding parasitic draw. Your 60Ah battery isn't designed for a constant 500mA pull while you're parked for three days. That's a 12Ah drain, leaving you with 48Ah - barely enough to crank a cold engine. This isn't rocket science, but it requires basic electrical knowledge.

The goal here is robust power for your camping gear and dashcam, ensuring circuit integrity and preventing a dead battery in the middle of nowhere. No one wants to be stranded because of a $30 accessory. The dealer will charge you $200 for a tow and another $150 to 'diagnose' your perfectly good battery.

Quick Verdict

If you're car camping in a Sportage, your primary concern is power. The stock 12V system is fine for driving, but parking mode on a dashcam or running a fridge overnight will kill your battery. The Sportage's 12V outlets often shut off with the ignition, which is inconvenient for continuous power. Kia's own documentation suggests an auxiliary battery for parked recording.

Dashcam Power: Hardwiring with a fuse tap is the most reliable. OBD-II adapters exist, but some Sportage owners on Kia forums warn against them, citing potential conflicts with vehicle diagnostics. Stick to the fuse box for circuit isolation.

Auxiliary Power: A portable power station is non-negotiable for anything beyond charging a phone. It isolates your camping power from the starting battery, preventing deep discharge cycles that shorten battery life. Plus, it's portable.

Sleeping Setup: The Sportage interior is tight. A custom-cut foam mattress or inflatable pad is your best bet. Forget fancy cot systems unless you want to sleep at a 30-degree angle. Measure twice, cut once.

Storage: Soft-sided bags and bins are superior to hard cases. They conform to the irregular interior dimensions, maximizing usable volume. Hard cases create dead space and rattle. Everything needs to be secured to prevent projectile hazards during sudden braking.

Climate Control: Ventilated windows or a small fan are key for overnight comfort. Humidity buildup is real, leading to condensation and potential mold growth on interior fabrics. One TikTok video shows the tight fit, reinforcing the need for smart packing.

What to Look For

When rigging your Sportage for camping and dashcam power, you're dealing with thermodynamics, electrical load, and mechanical constraints. Don't just buy what looks good. Think about failure modes.

Component	Critical Specification	Why It Matters (Failure Mode)
Dashcam Power Module	Low Voltage Cutoff (LVC)	Prevents deep discharge of the starting battery. If LVC is set too low (e.g., 11.8V), your battery's resting voltage might recover, but cranking voltage could drop below 9.6V, leading to a no-start.
Portable Power Station	Capacity (Wh) & Output (W)	Determines run time for appliances. A 200Wh unit won't run a 60W fridge for more than 3 hours. Undersizing leads to frequent recharging or dead devices. Auto Roamer suggests a portable stove for $50-150, which needs reliable power.
Wiring Gauge	AWG (American Wire Gauge)	Prevents voltage drop and overheating. Too thin a wire for a high-current device (like a fridge) causes resistance, heat generation, and power loss. This is basic circuit integrity.
Fuse Taps	Fuse Type (ATO, Mini, Low Profile Mini)	Ensures proper fit and circuit protection. Using the wrong type leads to poor mechanical connection, intermittent power, or blown fuses due to vibration. One YouTube guide shows specific adapters for the Sportage.
Sleeping Pad	R-Value & Packed Dimensions	Thermal insulation and storage space. A low R-value (below 3.0) means cold ground sucks heat from your body. Too large when packed, and it eats into critical cargo volume.

Ignoring these specs is how you end up with a dead battery, a warm beer, or a sleepless night. The physics doesn't care about your budget.

Our Top Picks for Reliable Performance

When it comes to outfitting your Sportage, you're looking for gear that can withstand thermal cycling, vibration, and general dirtbag abuse. Here's what actually works without costing a fortune or failing mid-trip. BlackVue DR900X-2CH Plus (~$450)

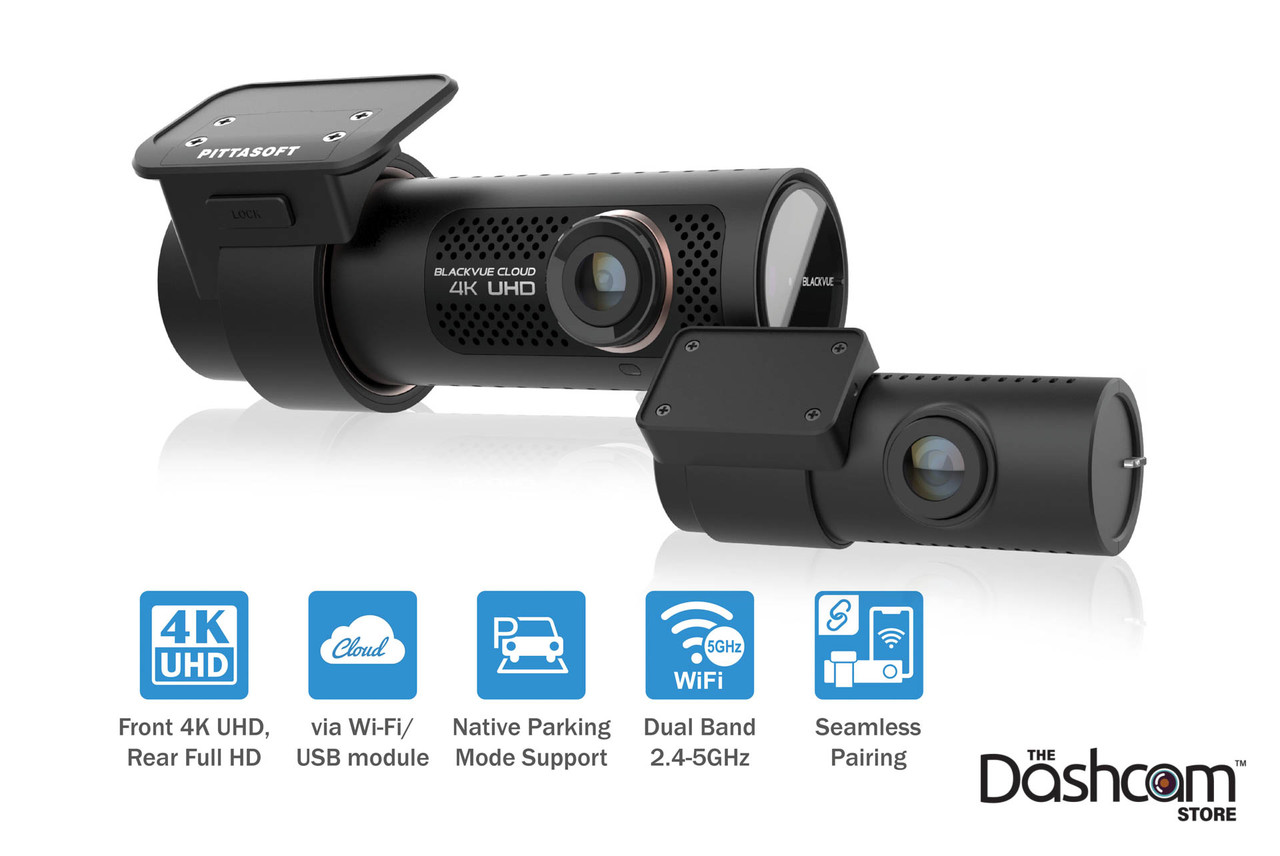

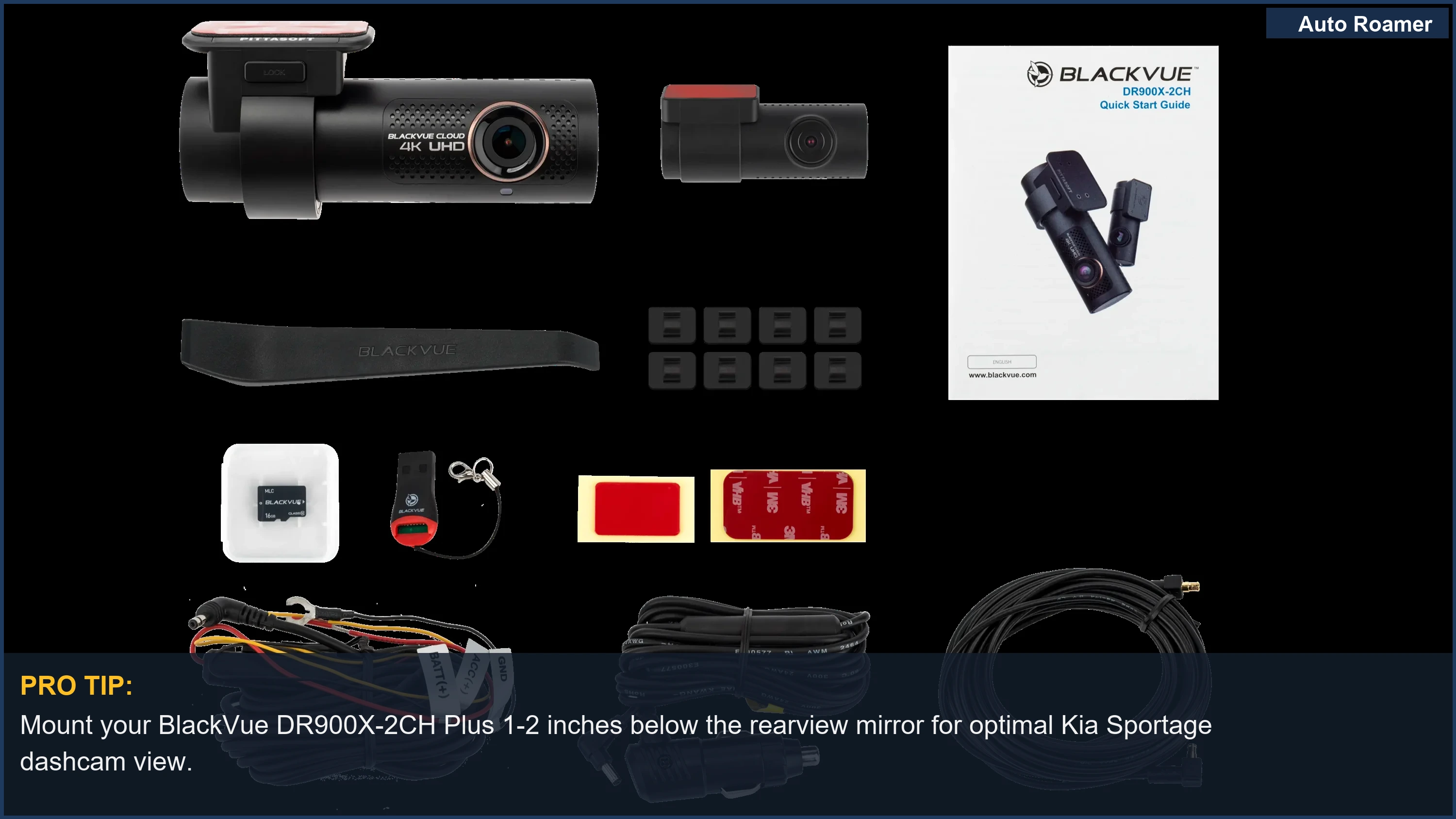

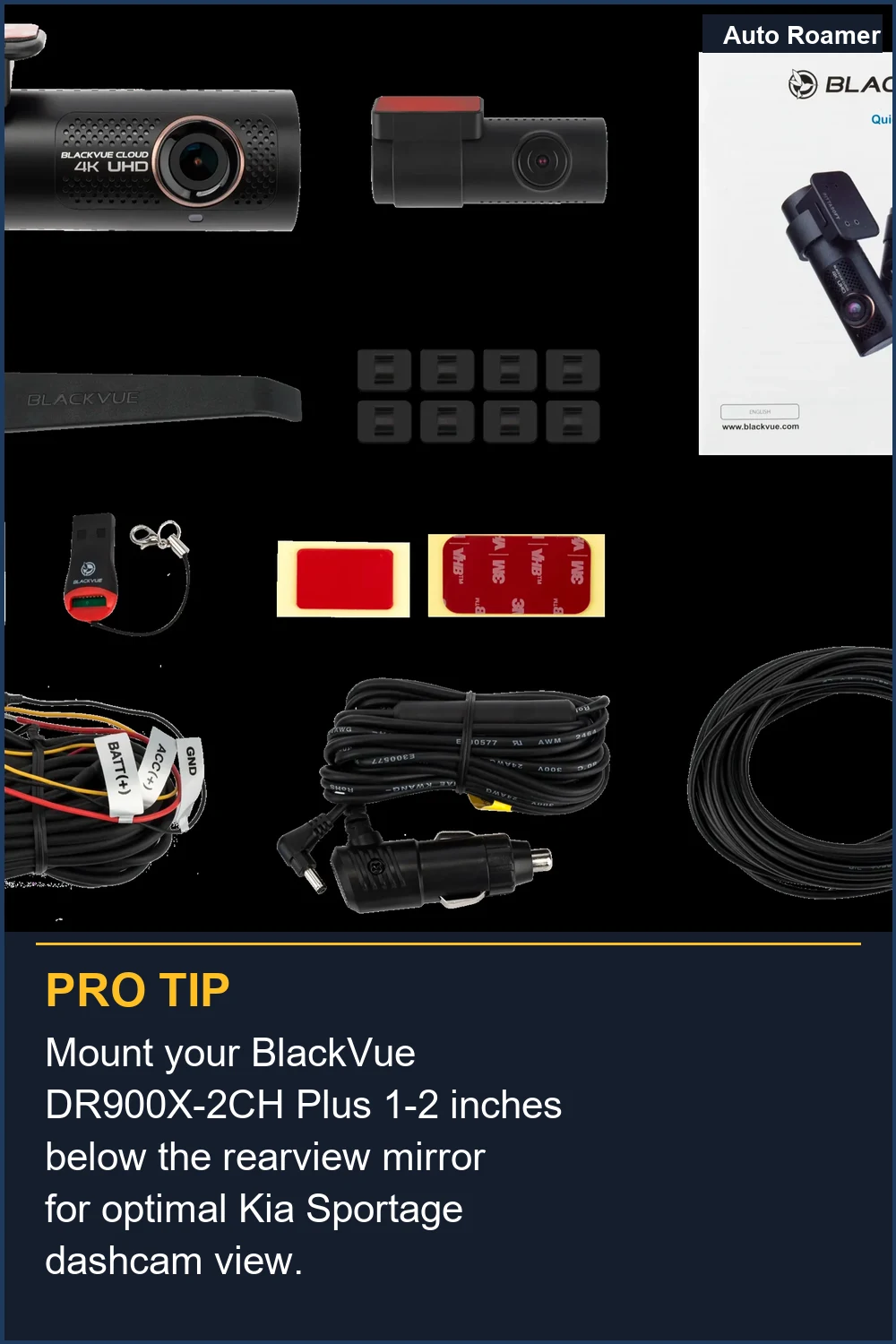

Capacity/Key Specs: 4K front, 1080p rear, parking mode with impact/motion detection, built-in low voltage cutoff (LVC).

Pros: Excellent video quality, reliable parking mode, robust software, good thermal management. The LVC is adjustable, preventing battery drain. Reddit users often recommend hardwiring for parking mode.

Cons: Pricey. Requires hardwiring for full functionality.

The rear camera cable can be a pain to route cleanly.

Best-for: Anyone serious about 24/7 vehicle monitoring without compromising their starting battery.

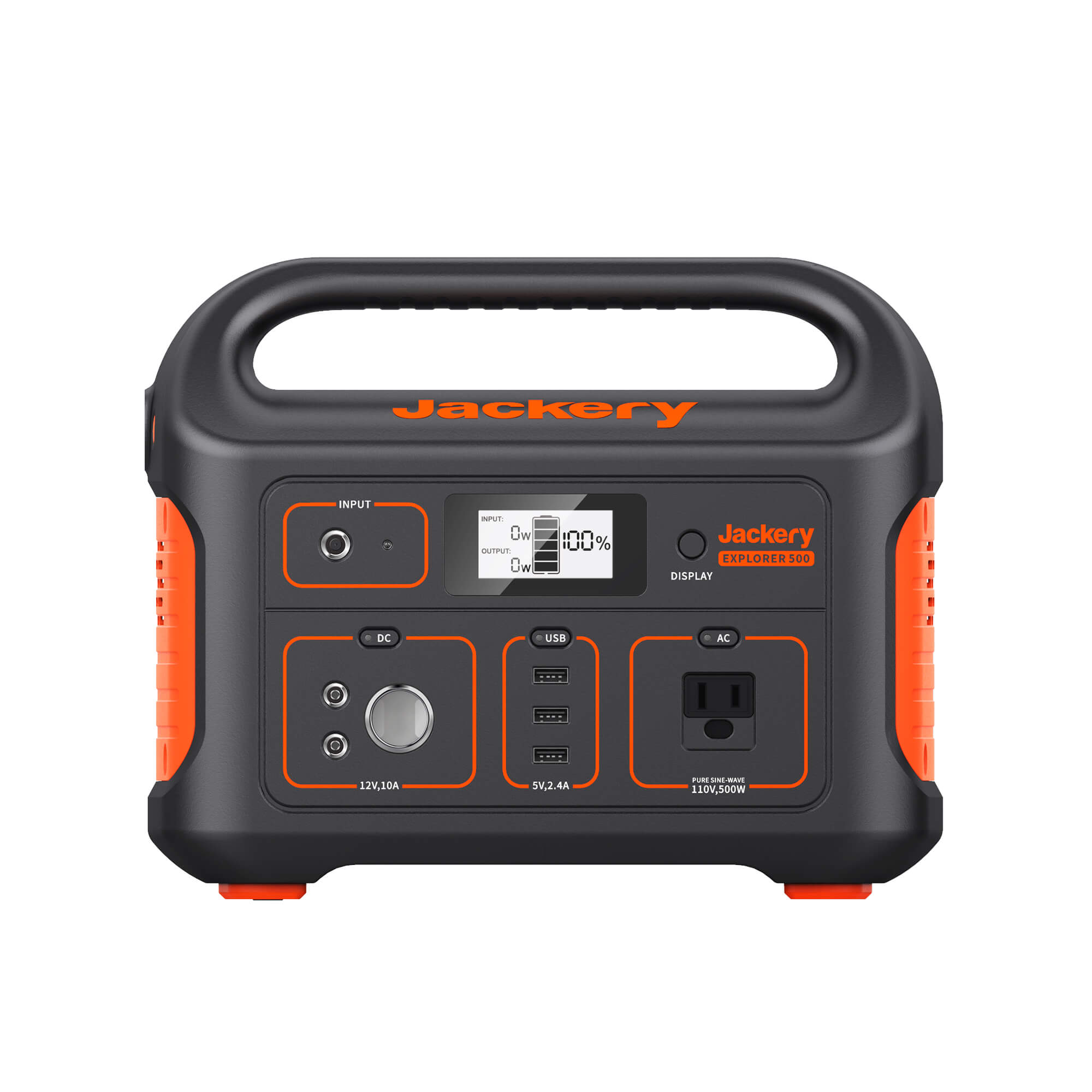

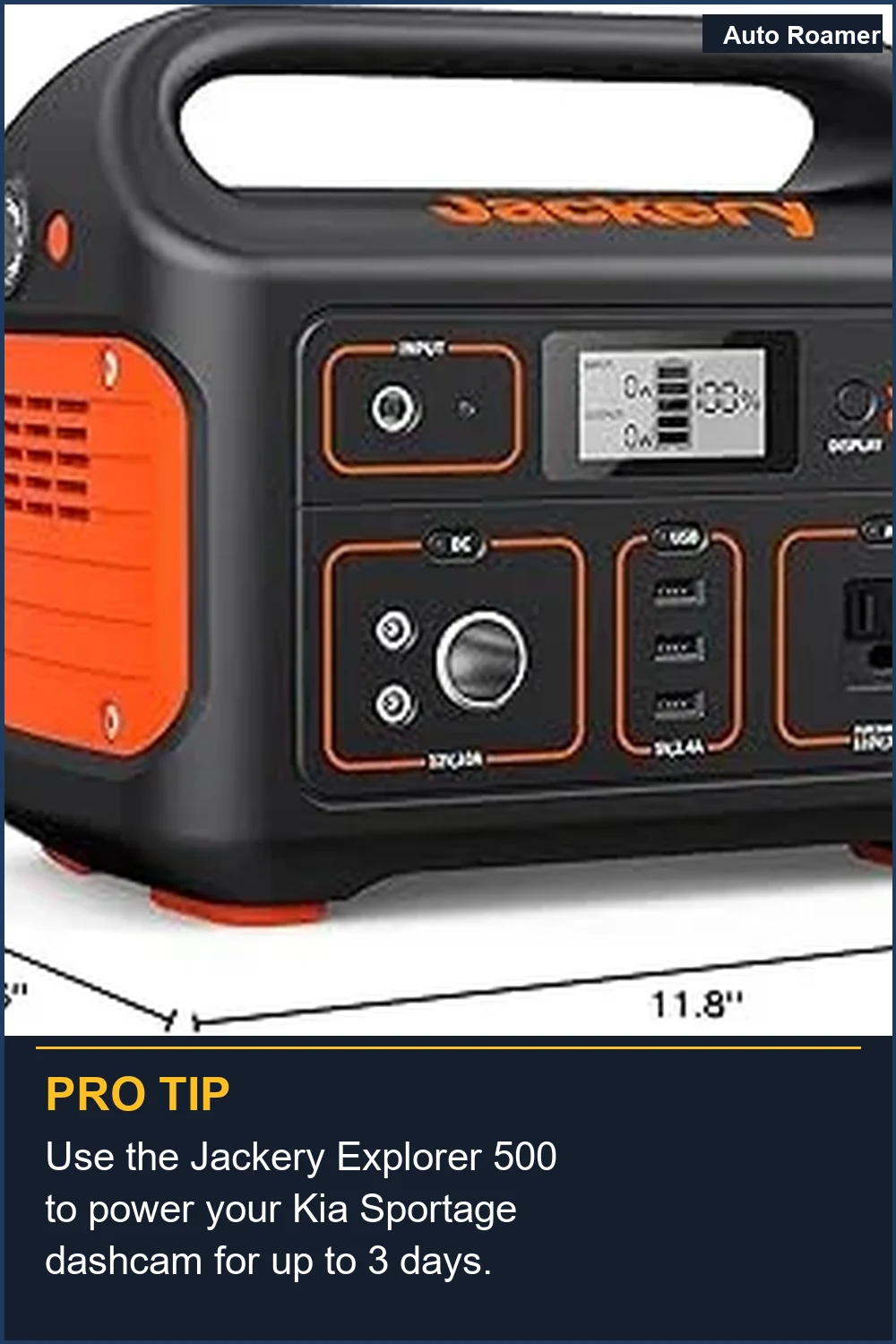

Jackery Explorer 500 (~$500)

Capacity/Key Specs: 518Wh LiFePO4 battery, 500W continuous AC output, multiple DC/USB ports.

Pros: Durable, good capacity for weekend trips, pure sine wave inverter (better for sensitive electronics), charges via 12V car adapter. Can run a small fridge for 1-2 days.

Cons: Heavy (13.3 lbs), not enough capacity for extended off-grid use without solar. AC charging is slow.

Best-for: Powering small fridges, charging laptops, and general camp power for 1-3 days.

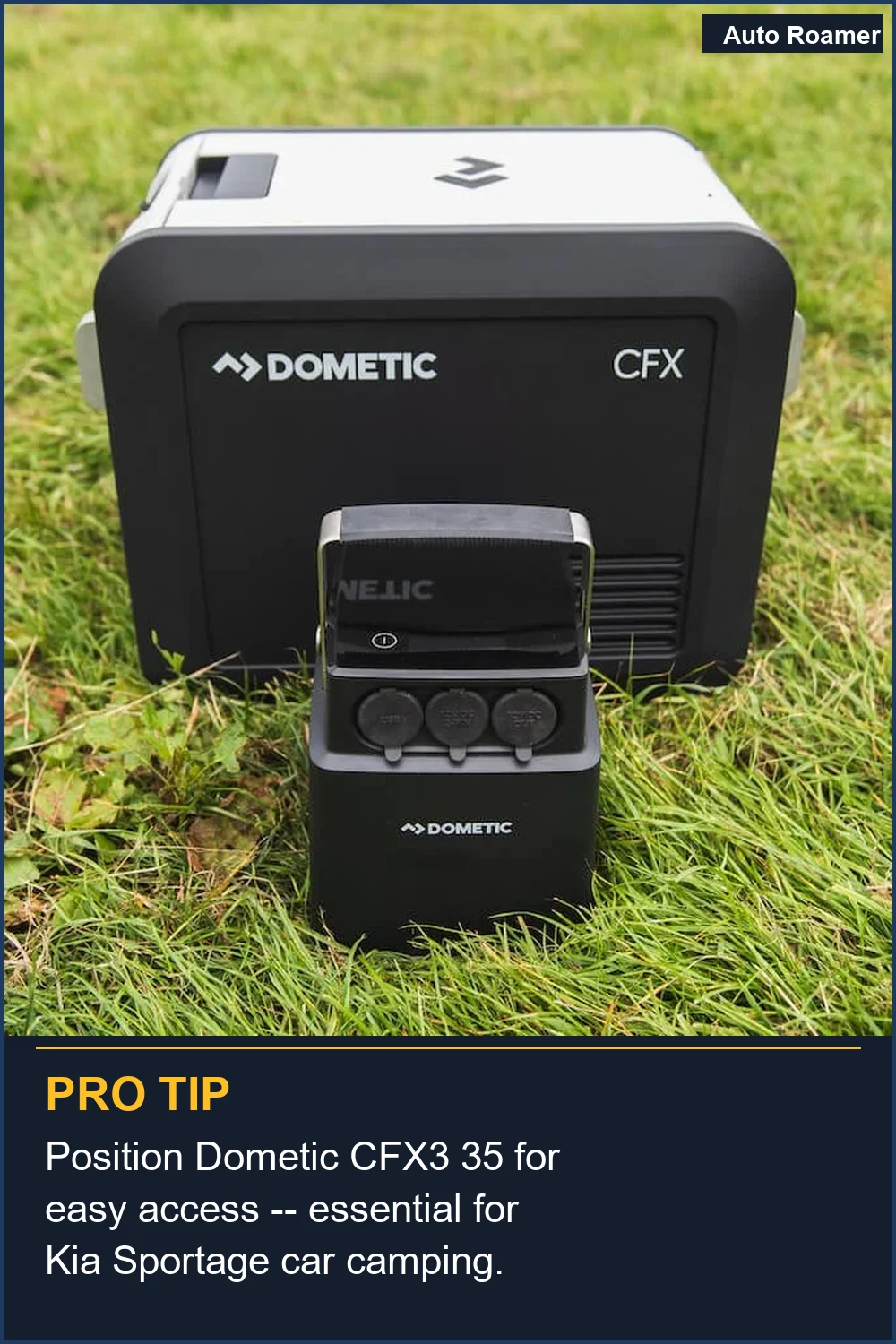

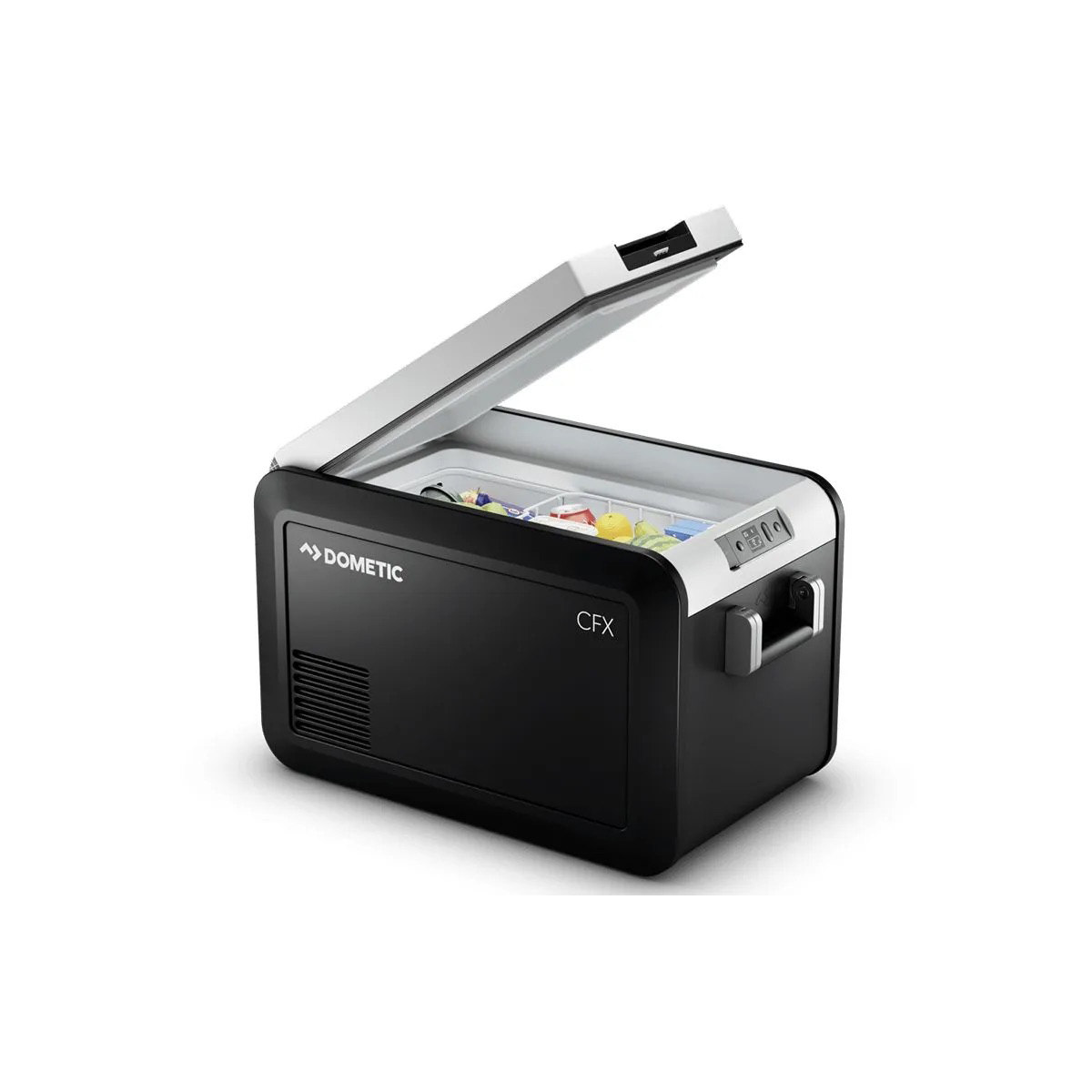

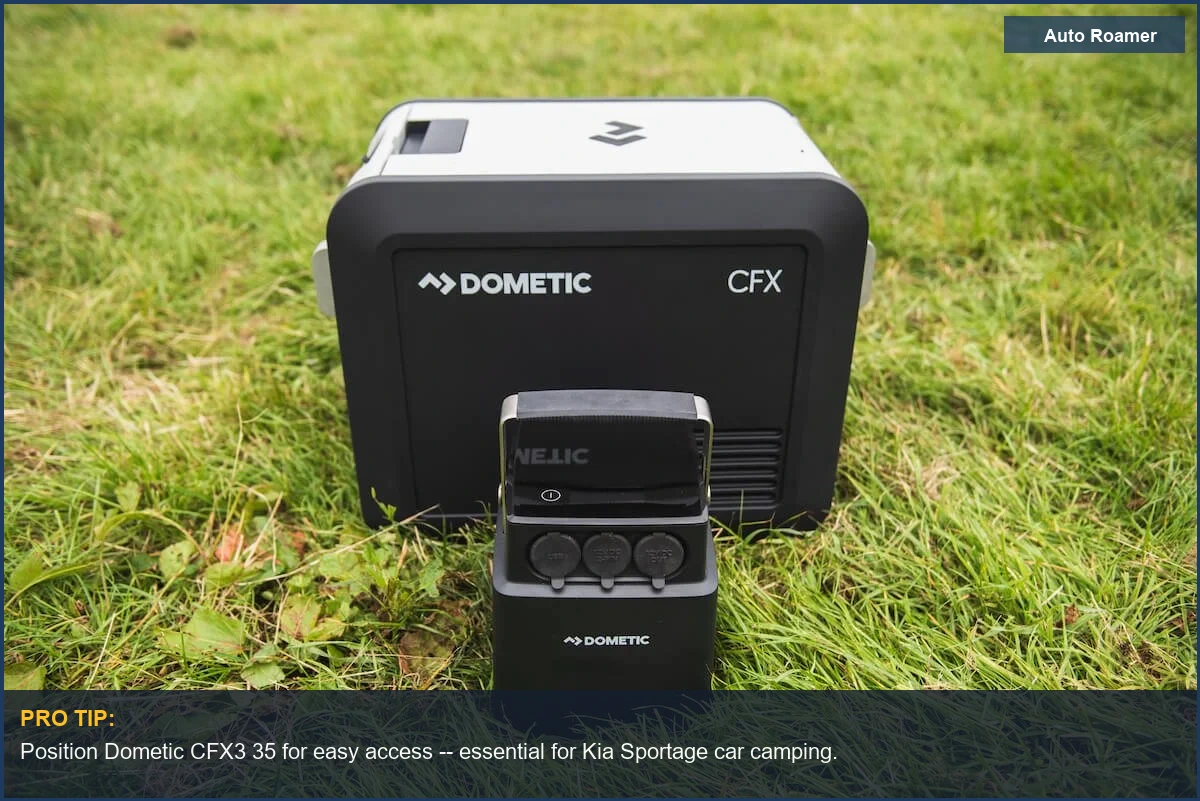

Isolates camping draw from your Sportage's battery. Dometic CFX3 35 (~$600)

Capacity/Key Specs: 36L capacity, -7F to 50F temperature range, 12V/AC power, draws 0.8A at 39F ambient.

Pros: Efficient compressor fridge, rugged construction, minimal thermal loss, keeps food genuinely cold. The mechanical integrity of these units is solid.

Cons: Expensive, takes up significant cargo space.

The power draw, while efficient, still requires a robust power source like the Jackery.

Best-for: Keeping food and drinks cold for days without dealing with melting ice and waterlogged food. Essential for actual camping.

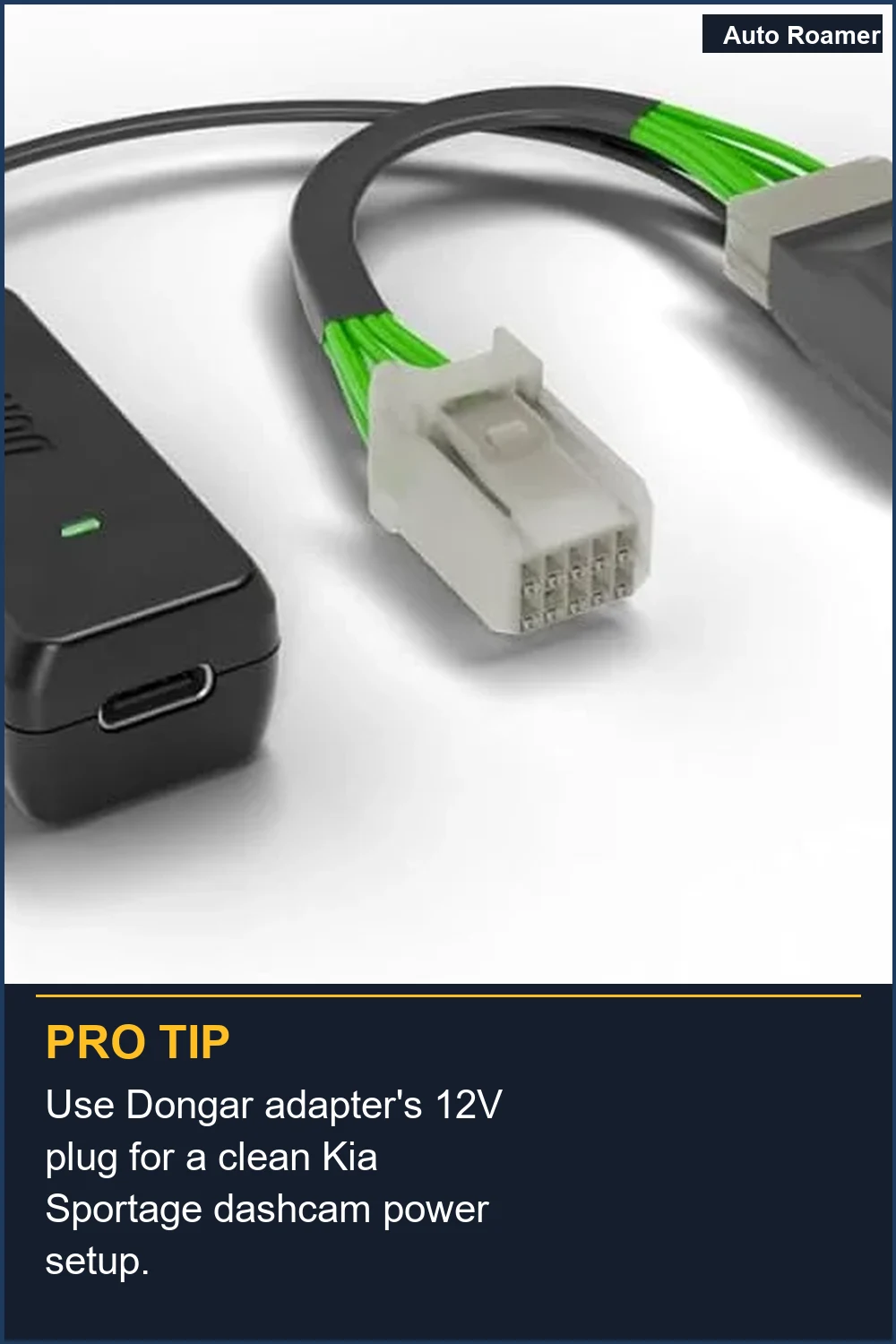

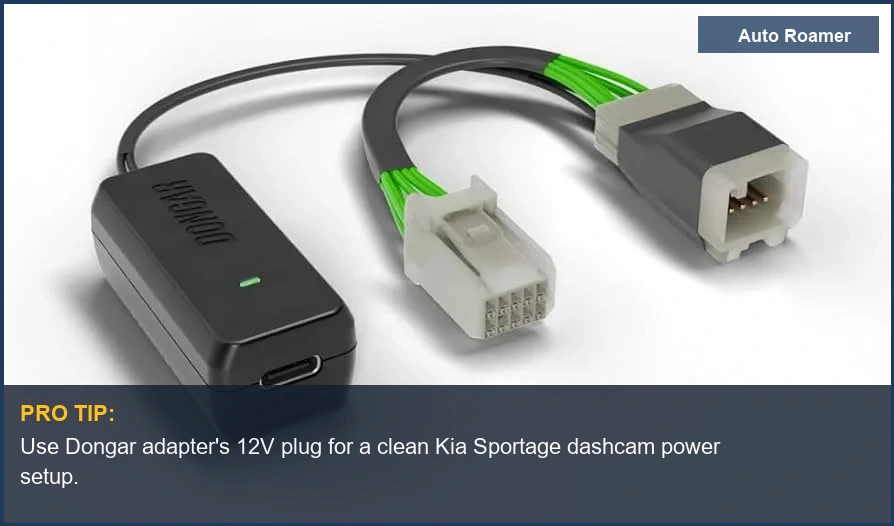

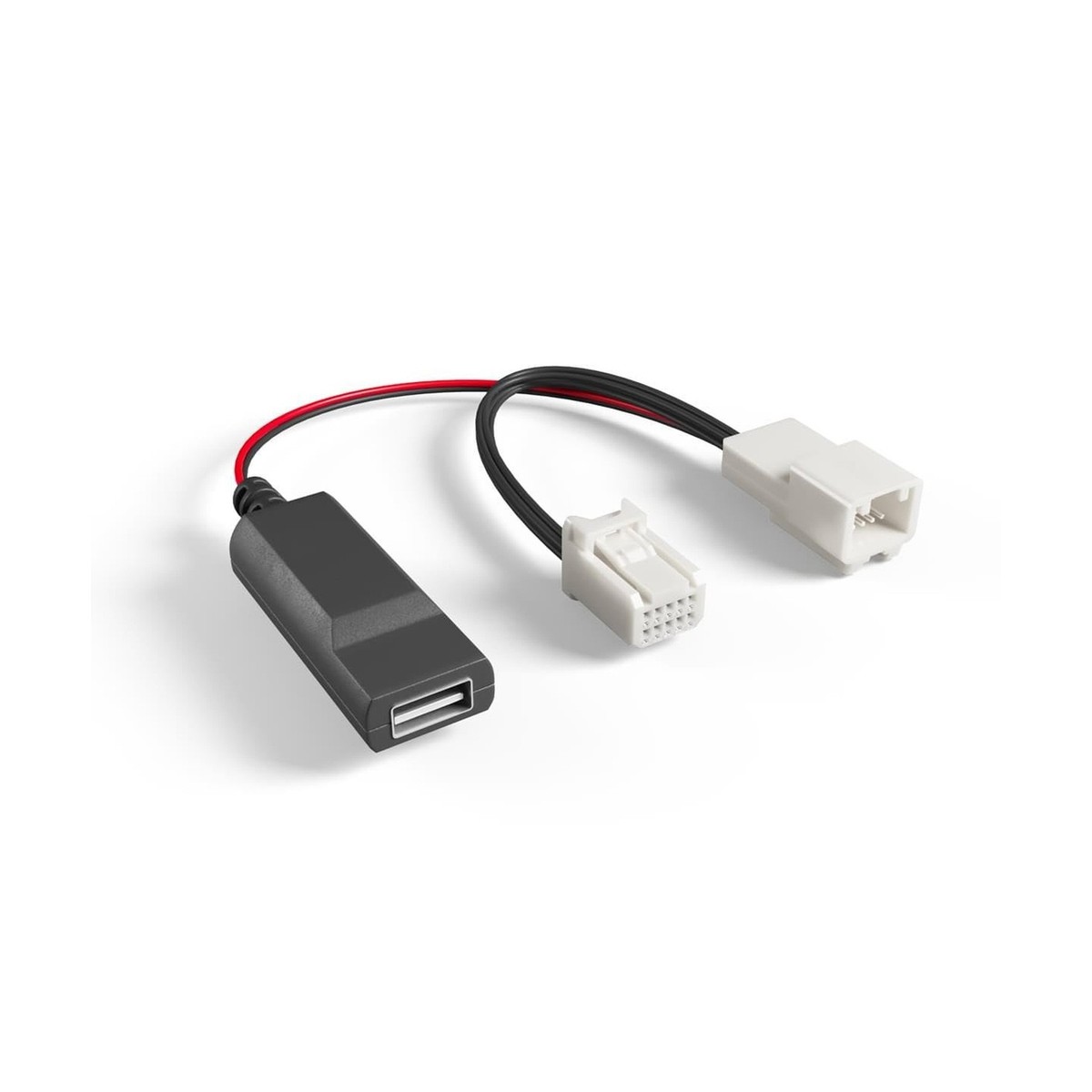

Dongar Technologies Dash Cam Power Adapter (~$30)

Capacity/Key Specs: Plugs into rearview mirror harness, provides switched 5V or 12V USB power.

Pros: Simple, clean installation, no wire cutting or fuse tapping required. Maintains circuit integrity for other systems. This adapter is a favorite for easy installs.

Cons: Only provides switched power (no parking mode).

Limited current output, generally only suitable for basic dashcams.

Best-for: Dashcams that only need power when the ignition is on, for a quick, reversible install.

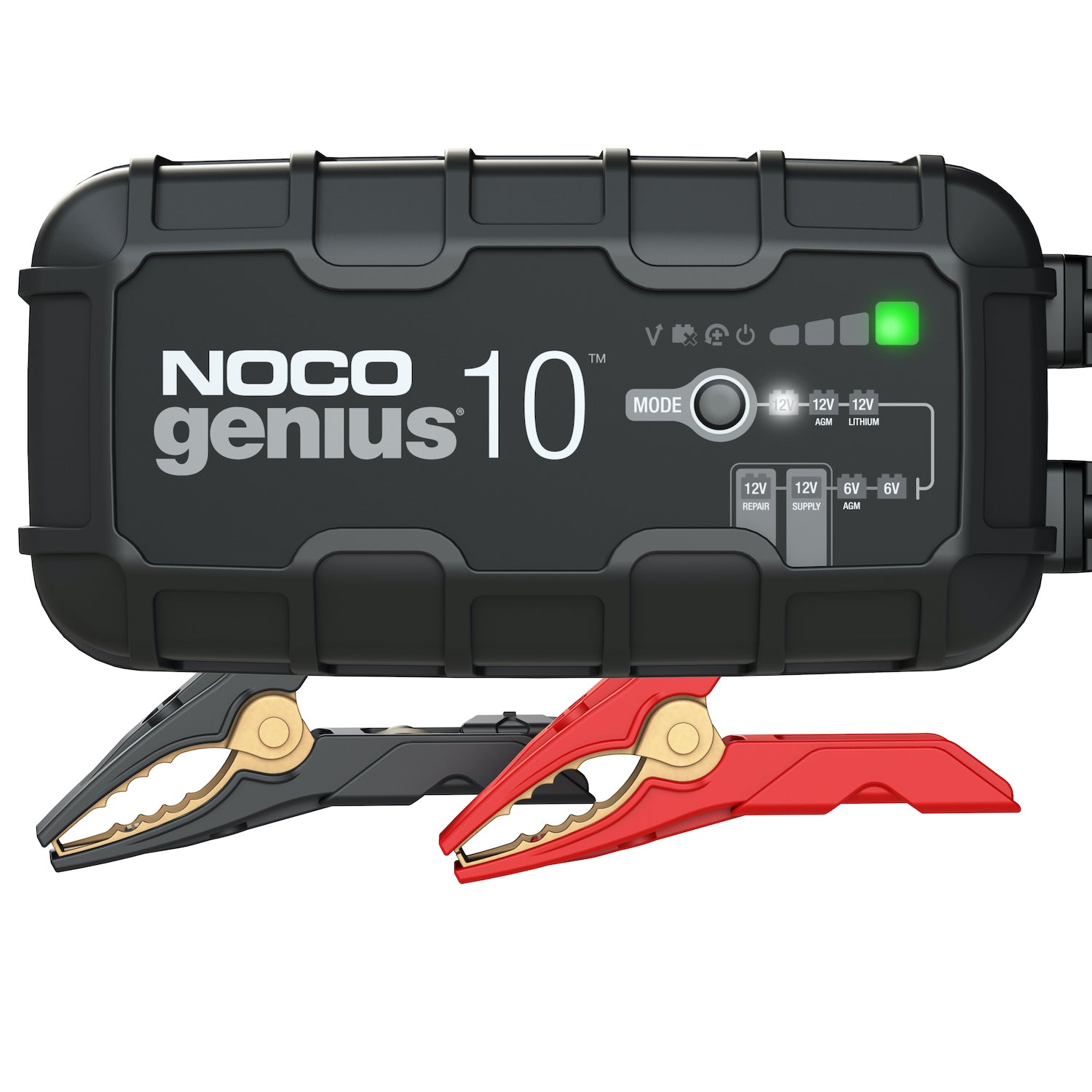

NOCO Genius10 Smart Charger (~$80)

Capacity/Key Specs: 10A, 12V/6V, charges lead-acid and lithium batteries, repair mode.

Pros: Essential for maintaining your starting battery, especially if you occasionally push its limits with accessories. Prevents sulfation and extends battery life. Can recover deeply discharged batteries.

This isn't just a charger, it's preventative maintenance.

Cons: Needs AC power, not portable for field use.

Best-for: Keeping your Sportage's main battery topped off at home, crucial for preventing premature battery failure from parasitic draws.

Head-to-Head Comparison

Choosing between power solutions for your Sportage comes down to understanding the trade-offs in complexity, cost, and reliability. This isn't just about features; it's about failure rates and mechanical stress points.

Feature	Hardwired Dashcam (Fuse Tap)	OBD-II Dashcam Adapter	Portable Power Station (for camping)
Installation Complexity	Moderate: Requires locating fuse box, identifying switched/constant power, routing wires cleanly. Forum guides exist.	Easy: Plug-and-play into the OBD-II port.	Easy: Plug into 12V socket or charge via AC.
Reliability	High: Direct, robust connection. Proper fuse tapping ensures circuit integrity.	Variable: OBD-II ports are for diagnostics, not constant power. Can introduce CAN bus interference or draw power from non-ideal circuits. Some users report issues.	High: Dedicated power source, isolates load from vehicle. High-quality units have robust internal circuitry.
Cost (Approx.)	$15 (fuse taps, wiring) + Dashcam cost	$20-50 (adapter) + Dashcam cost	$300-1000+
Parking Mode	Yes: Can tap into always-on fuse. Requires LVC to prevent battery drain.	Some models offer it, but often less reliable than hardwire. Risk of parasitic draw.	N/A (Powers external devices, not the dashcam directly unless specifically designed for it).
Impact on Vehicle Warranty	Minimal if done correctly. Dealer might blame it for electrical issues, but proof is on them.	Higher risk of diagnostic interference. CBS Automotive shows a hardwire install, avoiding OBD-II.	None: Completely external to vehicle systems.

OBD-II adapters are a shortcut. Shortcuts often lead to unexpected failure modes. Hardwiring, while more effort, provides superior circuit integrity and peace of mind. A portable power station is in a different class entirely, meant for heavy loads.

Budget vs Premium: Where Your Money Actually Goes

The difference between a $50 dashcam and a $400 unit isn't just marketing. It's in the sensor quality, the thermal management, and the long-term reliability of the internal components. This directly impacts circuit integrity and failure rate.

Feature	Budget Option (e.g., $50 Dashcam)	Premium Option (e.g., $400 BlackVue)
Video Quality	Often interpolated 1080p, poor low-light performance. Lens material typically plastic, prone to thermal deformation.	True 4K/1080p, excellent low-light via Sony STARVIS sensor. Glass lens elements maintain optical clarity under thermal cycling.
Thermal Management	Cheap capacitors or internal batteries degrade rapidly in heat. High internal operating temperature increases component failure rate.	Uses supercapacitors (not batteries) for power storage - vastly superior thermal stability. Robust heatsinks and internal airflow. Less outgassing.
Parking Mode Reliability	Often unreliable, inaccurate motion detection. High parasitic draw if LVC is poorly implemented or absent. Can kill your 12V battery in 24 hours.	Precise motion/impact detection, adjustable LVC settings (e.g., 12.0V, 12.2V) to protect battery. Low parasitic draw (~200mA) in parking mode.
Mounting Mechanism	Suction cup mounts lose adhesion under thermal cycling, leading to mechanical failure. Vibration causes image blur.	3M VHB adhesive mount. Superior shear strength, maintains bond under vibration and temperature extremes. Minimal play. The Dashcam Store highlights proper positioning.
Longevity	6-12 month lifespan before internal components fail due to heat or vibration.	3-5 year lifespan, designed for continuous operation in harsh automotive environment. Lower cost per year of operation.

Spending more on a dashcam buys you engineering. It buys you components that won't cook themselves to death after a summer in the sun. It's an investment in data integrity.

The Bottom Line

Rigging your Kia Sportage for car camping and dashcam power is all about understanding the underlying physics and preventing failure modes. Don't cheap out on critical components, and always prioritize circuit integrity over convenience.

Power Isolation is Key: Use a portable power station for all camping loads. Your Sportage's 12V starting battery is for starting the engine, not running a fridge for 36 hours. You wouldn't run your house off your car battery, so don't do it with your camping gear. TikTok guides often show hardwiring, but rarely cover auxiliary power for camping.

Hardwire Your Dashcam: Forget the cigarette lighter adapters for anything beyond basic recording. A properly hardwired dashcam with a low voltage cutoff will protect your starting battery and provide reliable parking mode. This is non-negotiable for true security.

Mind the Mechanicals: Secure everything in the cargo area. A loose cooler becomes a 30-pound projectile in a sudden stop. Vibration will loosen electrical connections over time, so ensure all crimps are solid and wires are strain-relieved.

Plan for Thermal Loads: Batteries don't like extreme heat or cold. Neither do cheap electronics. Choose components rated for automotive temperatures. A dashcam without proper thermal management will cook itself to death in July.

Know Your Limits: The Sportage is a compact SUV. It's great for minimalist camping. Don't try to cram in a kitchen sink and expect comfort or safety. Understand the vehicle's payload capacity and interior dimensions. Overloading stresses suspension components and reduces braking effectiveness.
