Dash Cam Parking Mode Explained: Types, Power Solutions, and How to Choose the Right One for Your Needs (2026 Complete Guide)

The dealer wanted $280 to install a hardwire kit for my dashcam's parking mode. That's a 30-minute job with a $15 add-a-fuse and a $10 ground ring terminal. I've seen them charge $120 for just the 'diagnosis' when the customer's battery died from a cheap USB power adapter. Absolute daylight robbery for basic 12V circuit work. Auto Roamer calls it a '24/7 surveillance system,' which is a fancy way of saying it doesn't shut off with the ignition.

Key Features to Consider

Key Features to Consider

Parking mode isn't just one thing. It's a suite of low-power operational states designed to protect your ride when the engine is off. The core problem is always power draw vs. battery capacity. Your 12V lead-acid battery is not an infinite energy source. Reddit users talk about G-sensors, which are key here.

The dash cam needs to decide when to record and how much power to sip. If it records 24/7 at full resolution, your car won't start in about 6 hours. This is where the engineering decisions come in. It's a game of electrical efficiency.

Feature	How it Works (Physics/Engineering)	Dirtbag Take
Motion Detection	A passive infrared (PIR) sensor or pixel-change algorithm detects visual changes in the camera's field of view. Triggers recording. Power draw is constant, just lower resolution standby. Many believe the dash cam sleeps, but it's always drawing current.	Records only when something moves. Saves some SD card space. Still pulls current, so don't expect miracles for battery life. Good for catching some ding-dongs, but not all.
Impact Detection (G-Sensor)	An accelerometer measures sudden changes in acceleration (g-forces) on the vehicle's chassis. If the force exceeds a calibrated threshold, it triggers a recording event, usually saving pre- and post-event footage.	The bare minimum. Records when someone hits your car. Doesn't catch the guy keying your paint unless he leans on it hard enough to register a 1.5G event.
Time-Lapse Recording	The camera records continuously but at a very low frame rate (e.g., 1 frame per second). This compresses hours of footage into minutes, saving power and storage. This mode is excellent for long-term surveillance.	My personal favorite. Low power draw, continuous coverage. You might miss a flicker of an event, but you get the whole picture. Easier to scrub through than endless motion-triggered clips.
Low Bit Rate Recording	Records continuously at a reduced video quality and compression, minimizing file size and power consumption. Less data written to the SD card. Similar to time-lapse but maintains a fluid video.	It's like streaming a video game on dial-up. You get the gist. Good for identifying vehicle type, maybe not license plate if it's too pixelated. Balances detail and power.
Radar Parking Mode	A radar sensor (often 24GHz or 77GHz) detects moving objects or proximity changes around the vehicle. This is a very low-power, high-accuracy detection method, triggering full recording only when needed. The most advanced option.	The Cadillac of parking modes. Detects movement before it's even in the camera's view. Lowest parasitic draw because the radar sips milliamps until an actual threat. Expensive, but worth it if you park in sketchy areas.

The real issue with all these modes is managing the current draw. Every milliamp counts when you're running off a 12V lead-acid that needs to crank a cold engine later. A typical car battery has about 30Ah of usable capacity before you start having issues.

Our Top Picks

Our Top Picks

Alright, so you need a dash cam that actually works when you're not around. Forget the cheap USB-powered garbage. Those things are just asking for a dead battery and blurry footage. We're looking for circuit integrity and smart power management here. Powering these things correctly is half the battle.

Here are some units that actually deliver on the promise of parking mode, without turning your battery into a paperweight. These are the ones I'd trust to not flake out when it matters.

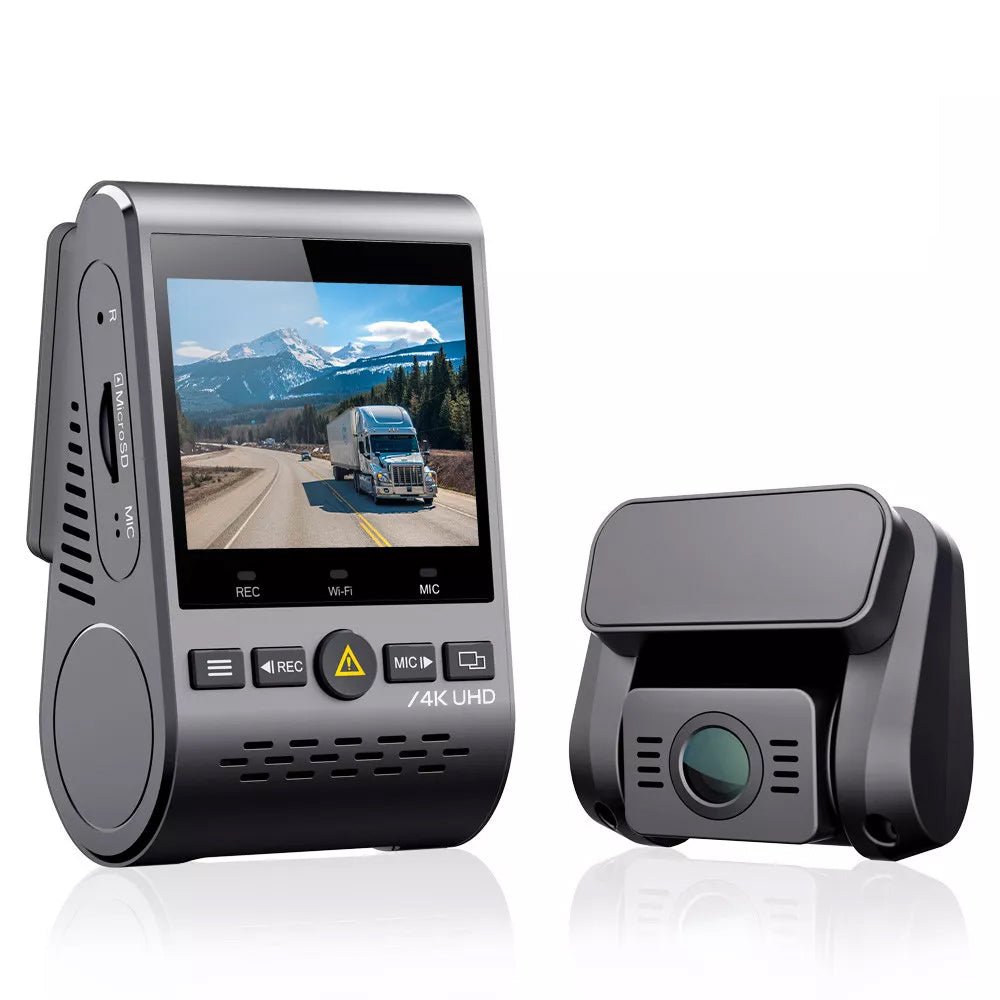

• Viofo A129 Pro Duo (~$250)
  • Specs: Front 4K, Rear 1080p, Sony STARVIS sensors, GPS, Wi-Fi.
  • Pros: Excellent video quality day/night. Reliable G-sensor and buffered motion detection. Includes a hardwire kit.
  • Cons: No built-in radar. Power consumption isn't the absolute lowest in parking mode.
  • Best-for: Daily driver who needs solid evidence for common parking lot dings.

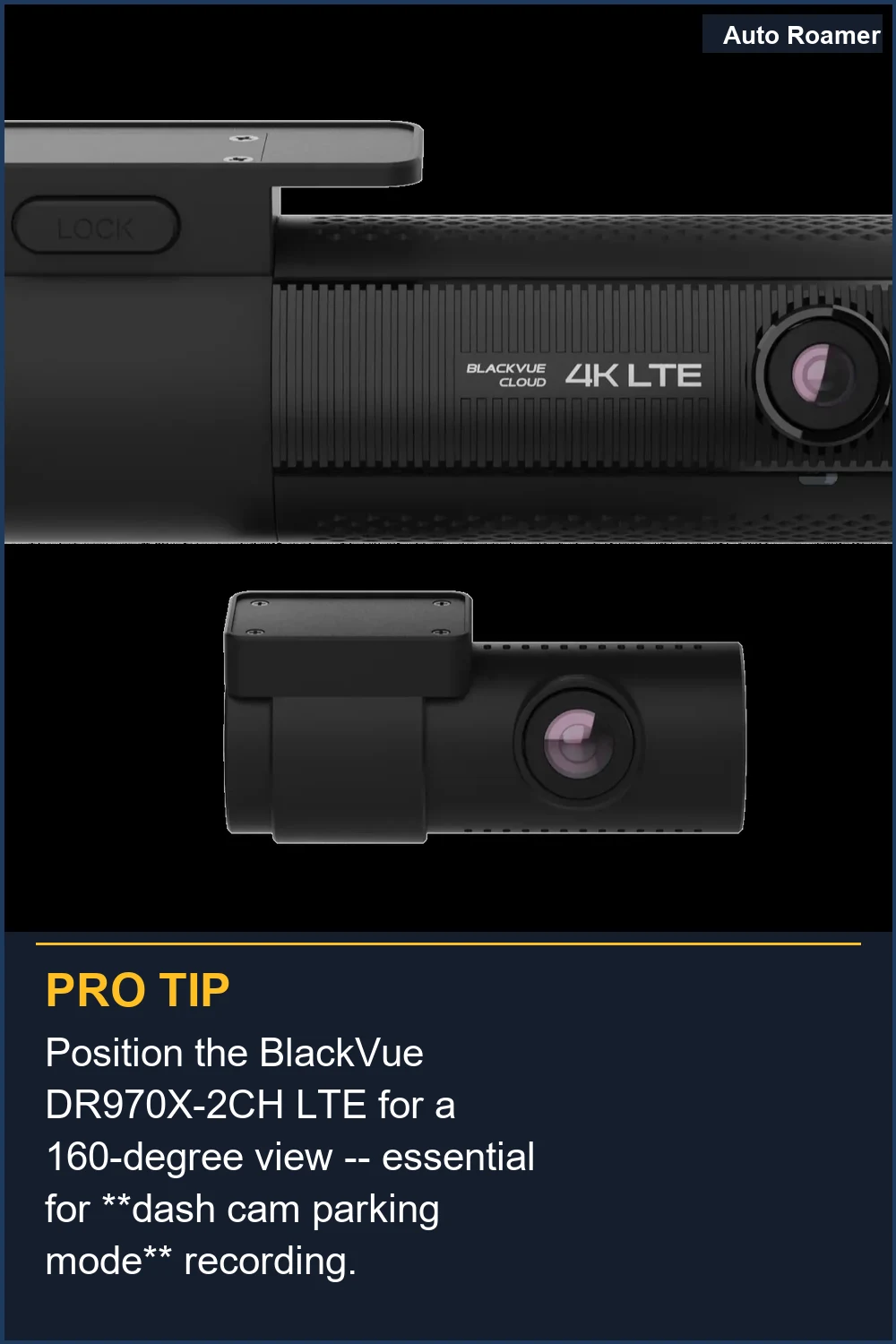

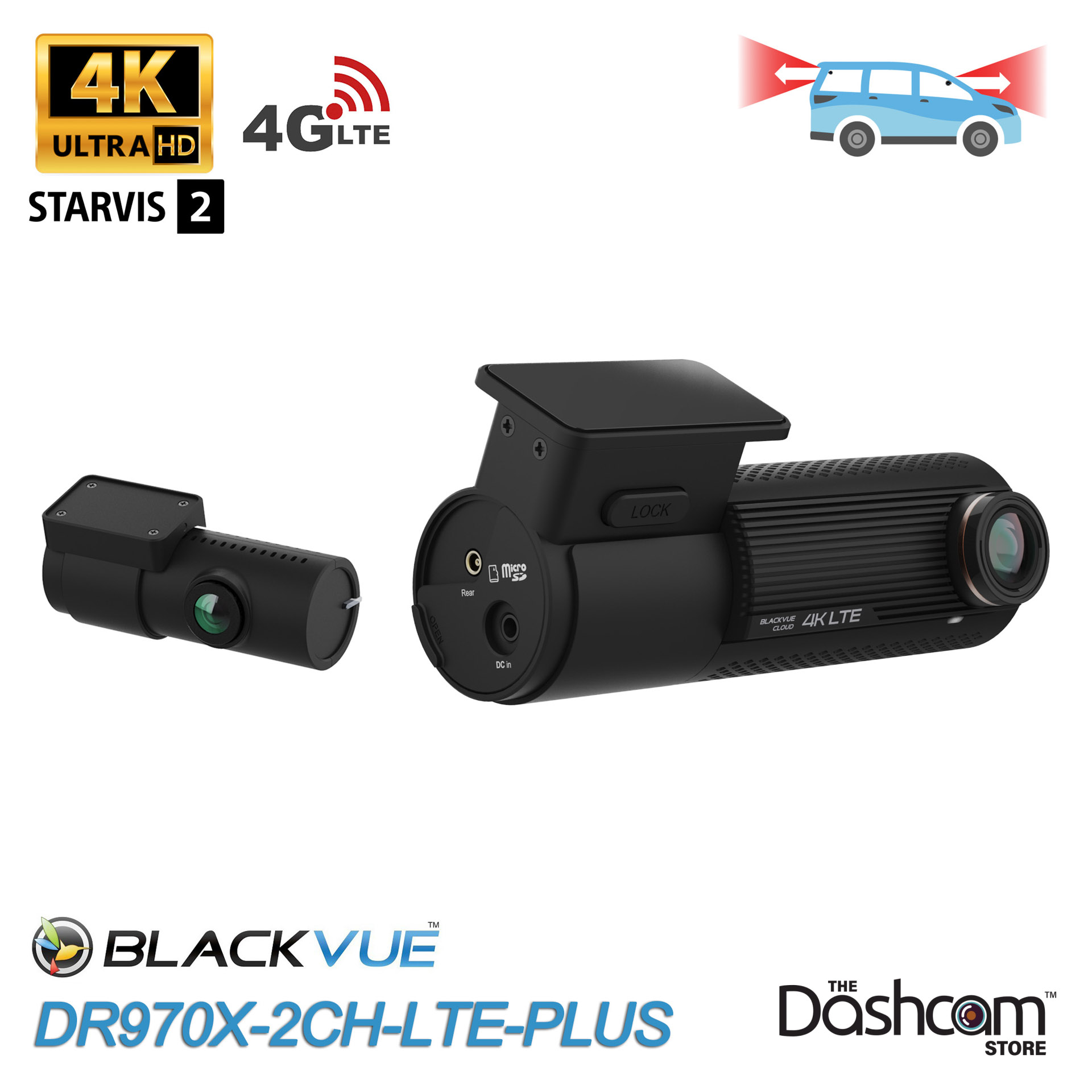

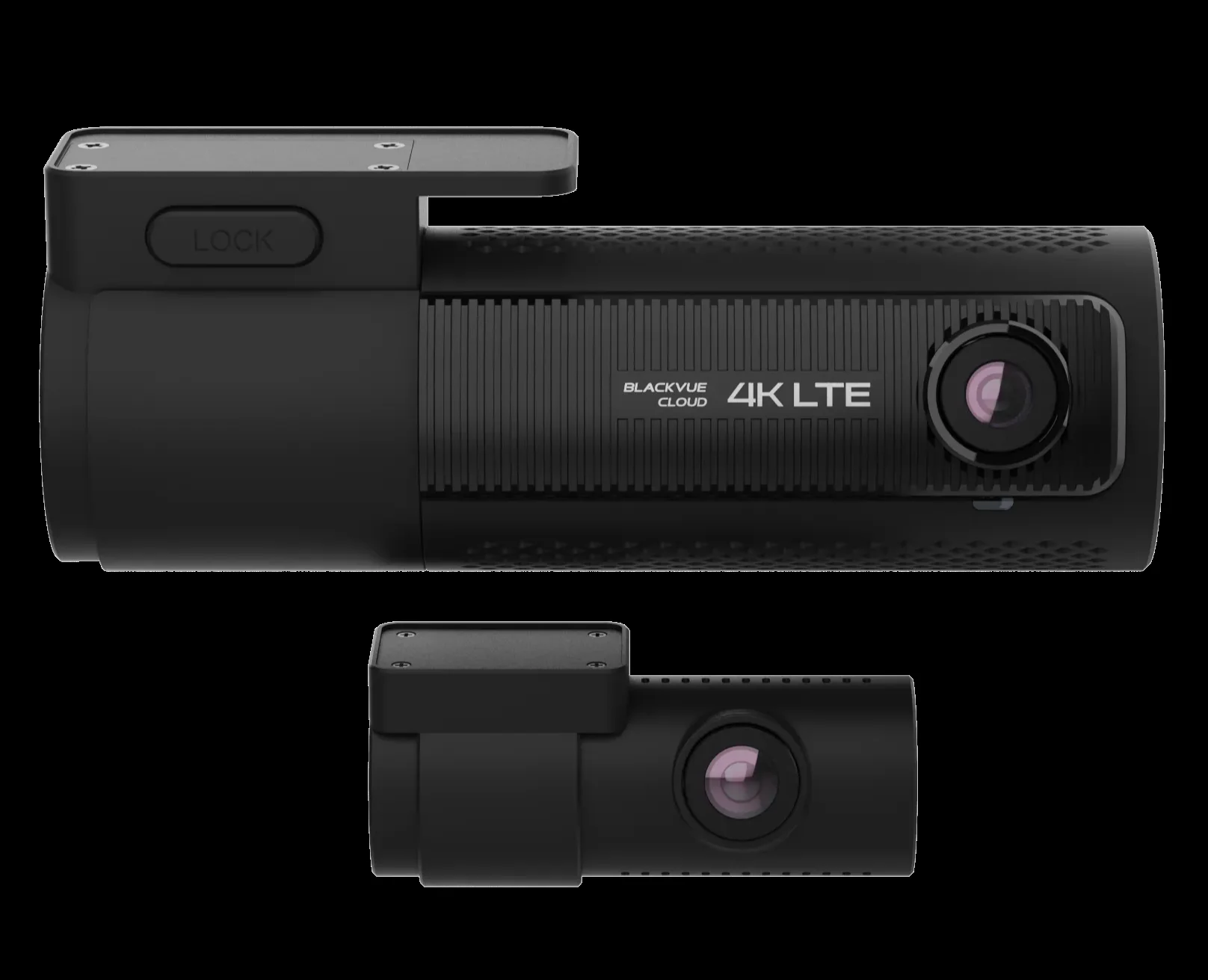

• BlackVue DR970X-2CH LTE (~$550)
  • Specs: Front 4K, Rear 1080p, Cloud connectivity via built-in LTE, G-sensor, buffered motion detection, time-lapse.
  • Pros: Real-time notifications and cloud backup. Remote viewing. Very robust thermal cycling performance.
  • Cons: High price tag. LTE subscription adds recurring cost.
  • Best-for: High-value vehicles, remote monitoring, maximum security. BlackVue is known for its 24/7 surveillance capabilities.

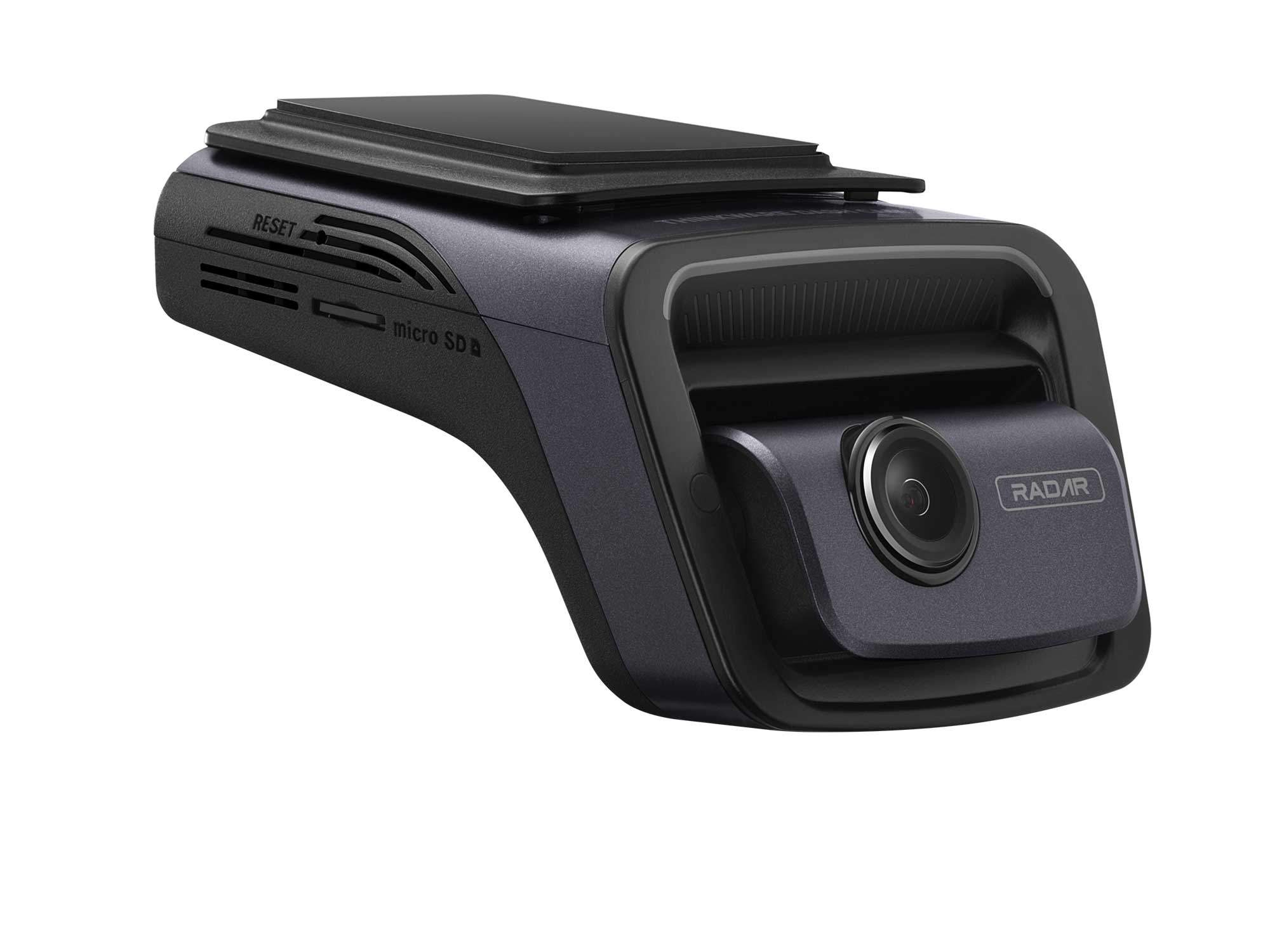

• Thinkware U3000 (~$450)
  • Specs: Front 4K, Rear 2K, Radar parking mode, G-sensor, time-lapse, energy-saving mode.
  • Pros: Best-in-class low power radar detection. Significantly extends parking mode duration. Great thermal management.
  • Cons: Expensive. Radar unit can be a bit bulky.
  • Best-for: Parking for extended periods (weeks) in high-risk areas. Minimal parasitic draw.

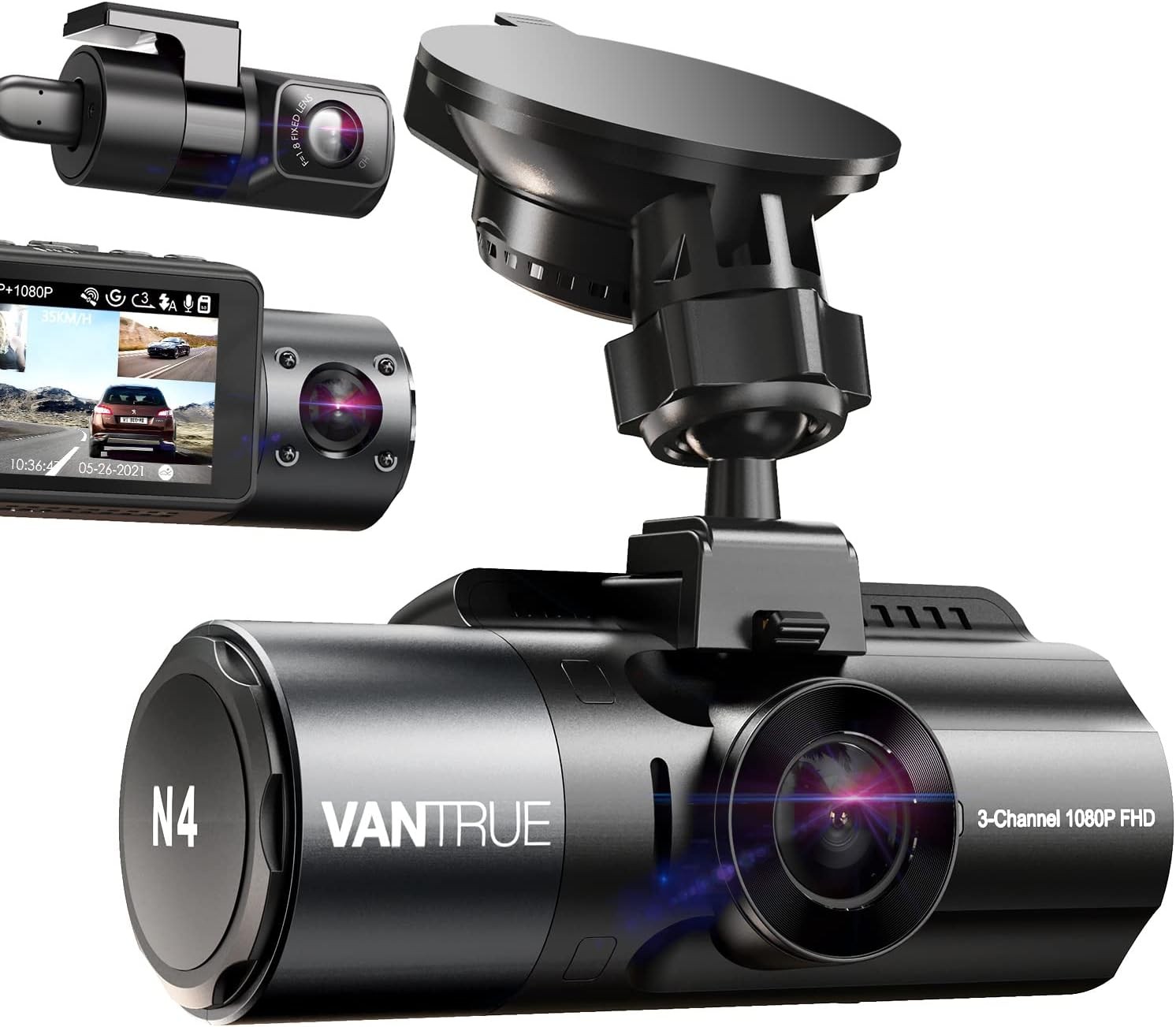

• Vantrue N4 3-Channel (~$300)
  • Specs: Front 1440p, Rear 1080p, Interior 1080p (IR night vision), G-sensor, motion detection, time-lapse.
  • Pros: Full 360-degree coverage (front, rear, cabin). Good for rideshare.
  • Cons: Lower front resolution than some rivals. Can be more complex to wire all three cameras.
  • Best-for: Rideshare drivers or those needing interior surveillance. Multi-channel dash cams like this provide comprehensive coverage.

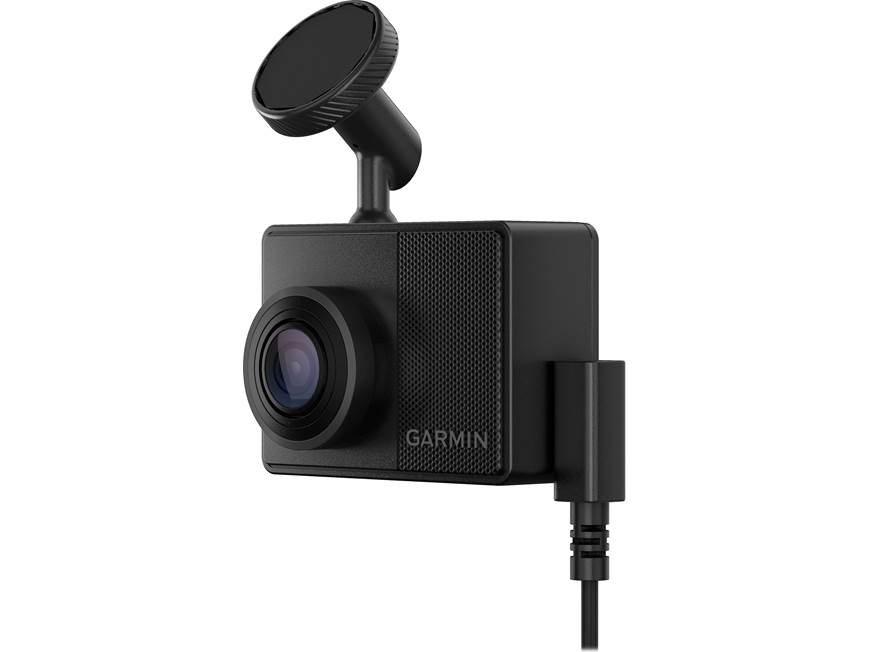

• Garmin Dash Cam 67W (~$200)
  • Specs: 1440p, 180-degree field of view, voice control, GPS, G-sensor, parking guard.
  • Pros: Compact size. Easy to use interface. Decent video quality for its size.
  • Cons: No rear camera option. Parking mode is basic (impact detection only without hardwire).
  • Best-for: Minimalist setup, simple impact recording, tight spaces.

Remember, a dash cam is only as good as its power source. Don't skimp on the hardwire kit or external battery pack. A cheap adapter will introduce voltage fluctuations and eventually just fail due to thermal cycling.

Budget vs Premium Options

Budget vs Premium Options

When it comes to dash cams, you generally get what you pay for. A $50 unit from Amazon isn't going to have the same sensor quality or thermal stability as a $400 BlackVue. The underlying physics of image capture and data processing don't change just because the price drops.

The difference often boils down to component quality, sensor sensitivity, and the robustness of the power management circuitry. A cheap unit might save you money upfront, but it'll cost you in missed footage or a dead battery. Choosing the right parking mode is key.

Feature	Budget Options (~$50-$150)	Premium Options (~$200-$600+)
Video Quality	Often 1080p, sometimes interpolated 2K. Poor low-light performance due to smaller sensor and less advanced image processing. License plates can be unreadable from 10 feet in motion.	True 2K or 4K. Large Sony STARVIS or similar sensors. Excellent low-light visibility, wider dynamic range. Clear plates at 20+ feet.
Parking Mode Reliability	Basic G-sensor, often with high parasitic draw or unreliable voltage cutoff. Internal battery for parking mode is usually small, fails after 6 months of thermal cycling.	Advanced G-sensor, buffered motion, time-lapse, or radar. Precise voltage cutoff with external battery compatibility. Designed for 24/7 operation with minimal battery drain.
Durability/Thermal Stability	Cheap plastic housings, susceptible to warping or cracking in direct sunlight (120 degrees F internal temp). Capacitors often fail after a year of thermal cycling.	Robust ABS or polycarbonate housing. High-temperature capacitors (supercapacitors) instead of lithium-ion batteries for better thermal performance. Designed for -4 degrees F to 176 degrees F operating temps.
Installation	Often relies on cigarette lighter power. Hardwire kits are usually extra and sometimes poorly documented.	Designed for hardwiring with included kits. Clear instructions, often with fuse tap options. Some even offer OBD-II power modules for simpler installation.
Connectivity/Features	Basic Wi-Fi for app connection. Limited cloud features, if any. GPS might be optional or inaccurate.	Fast Wi-Fi, Bluetooth, GPS, sometimes built-in LTE for cloud services and real-time alerts. Voice control and advanced ADAS features. These offer round-the-clock surveillance.

A $75 dash cam might save you a few bucks, but if it fails to record a hit-and-run, that's thousands in deductible and insurance hikes. That's not a budget win; that's a liability. My philosophy: buy once, cry once. Car and Driver tests these things for a reason.

Setup and Installation Tips

Setup and Installation Tips

Installing a dash cam for parking mode isn't just sticking it to the windshield. It requires tapping into your car's electrical system, which means understanding constant and switched 12V lines. Mess this up, and you'll either drain your battery or fry your dash cam. Car and Driver explains the importance of proper installation.

The goal is a secure, low-resistance connection that can withstand vehicle vibrations and thermal cycling without losing circuit integrity. No loose wires, no exposed copper, no fire hazards. This isn't rocket science, but it's not a plug-and-play USB device either.

1. Locate Fuse Box: Find your car's interior fuse box, usually under the dash or in the glove box. You'll need constant 12V (always on) and switched 12V (on with ignition). Use a multimeter to identify these. I just use a test light, faster.
2. Identify Fuses: Find an unused fuse slot or tap into a low-amperage circuit (e.g., radio, power windows) that matches your constant/switched needs. A 10A fuse for an existing circuit is fine; don't tap into anything critical like ABS or airbags.
3. Install Add-a-Fuse: Use an add-a-fuse kit. This lets you piggyback a new circuit without cutting into existing wiring. Insert the existing fuse into the lower slot, and a new fuse (usually 2A or 3A for the dash cam) into the upper slot. This protects both circuits.
4. Ground Connection: Find a solid chassis ground point. This is usually a metal bolt attached directly to the car's frame. Sand off any paint or rust for a clean, low-resistance connection. A loose ground will cause voltage spikes and erratic behavior.
5. Route Cables: Hide the power cable along the headliner and A-pillar, tucking it under trim pieces. Use zip ties to secure any excess cable to prevent vibration-induced fatigue or interference with airbags. Proper cable management ensures longevity.
6. Mount Camera: Mount the camera firmly to the windshield, ensuring clear line of sight and no obstruction. Use the adhesive mount, not suction cups, which lose adhesion after a few months of thermal cycling.

Don't just jam wires under trim panels. That creates mechanical stress points that will eventually chafe through insulation, leading to shorts. Use proper tools and secure everything. Skimping on this part is asking for electrical gremlins.

Care and Maintenance Tips

Care and Maintenance Tips

A dash cam isn't a set-it-and-forget-it device, especially if you're relying on parking mode. It's collecting data 24/7, exposed to extreme temperatures, and enduring constant vibration. Neglect it, and you'll find yourself with corrupted footage or a dead battery when you need it most. Regular checks prevent headaches.

The biggest failure points are the SD card and the power connection. Both are subject to thermal cycling and mechanical stress. Your dash cam is basically a tiny computer baking in a hot car, writing data constantly. That's a brutal environment.

1. Format SD Card Monthly: SD cards have a finite number of write cycles. Constant overwriting, especially in parking mode, degrades them. Format the card in the camera every 3-4 weeks. This refreshes the file system and helps prevent corruption. Don't just delete files.
2. Check Connections: Periodically check the hardwire kit connections. Ensure the add-a-fuse is seated firmly, the ground wire hasn't come loose, and the power cable is still snugly plugged into the dash cam. Vibration can loosen connections over time, increasing resistance and heat.
3. Clean Lens: Use a microfiber cloth and lens cleaner (or just breath and a clean shirt) to wipe the camera lens. Dust, grime, and road film accumulate quickly. A blurry lens means useless footage.
4. Monitor Battery Voltage: If your dash cam has a voltage cutoff, verify it's working by checking your car's battery voltage with a multimeter after a long parking session. Ensure it's above 12.0V to guarantee starting. If it's dipping below 11.8V, adjust the cutoff or get an external battery pack.
5. Inspect Cable Sheathing: Look for any signs of chafing or cracking on the power cable's insulation, especially where it passes through tight spots or bends sharply. UV exposure and thermal cycling can degrade plastics, leading to exposed conductors and potential shorts.
6. Review Footage Periodically: Don't wait for an incident. Pull some parking mode footage every few months to ensure it's recording correctly, the time stamp is accurate, and the video quality is what you expect. A camera recording nothing is just dead weight.

Treat your dash cam like any other critical system on your car. A little preventative maintenance goes a long way. This isn't just about protecting your ride; it's about protecting your wallet from insurance headaches. It's a simple guide, but it's important.

Final Recommendations

Final Recommendations

Look, a dash cam with proper parking mode isn't a luxury; it's cheap insurance against a world full of idiots. Don't cheap out on the unit or the installation. The cost of a good system is a fraction of a deductible or the headache of fighting an insurance claim with no evidence. Protect your vehicle, protect your wallet.

My final word: prioritize power management and component quality over resolution. A clear 1080p recording of an incident is infinitely more useful than a blurry 4K video that failed to save because the SD card corrupted or the battery died. Circuit integrity is paramount.

• Hardwire it: Always hardwire your dash cam for parking mode. USB power adapters are for charging phones, not critical surveillance. They introduce too much ripple current and are prone to mechanical failure from vibration.
• External Battery or Radar: If you need long-duration parking mode (more than 24 hours), invest in an external battery pack like a BlackVue Power Magic Ultra Battery, or a camera with radar detection. This minimizes parasitic draw on your main car battery.
• High Endurance SD Card: Use a high-endurance microSD card specifically designed for continuous recording. Standard consumer cards will fail prematurely due to the constant read/write cycles and thermal stress.
• Test it: Don't assume it's working. Periodically check your parking mode footage and battery voltage. The only good dash cam is one that records when it's supposed to.
• Ignore the Hype: Don't get sucked into marketing jargon. Focus on actual sensor quality, power management features, and the reliability of the hardwire kit.

A good dash cam means less mechanical stress on you, the driver, when someone inevitably dings your car and drives off. It's about data, not feelings.
